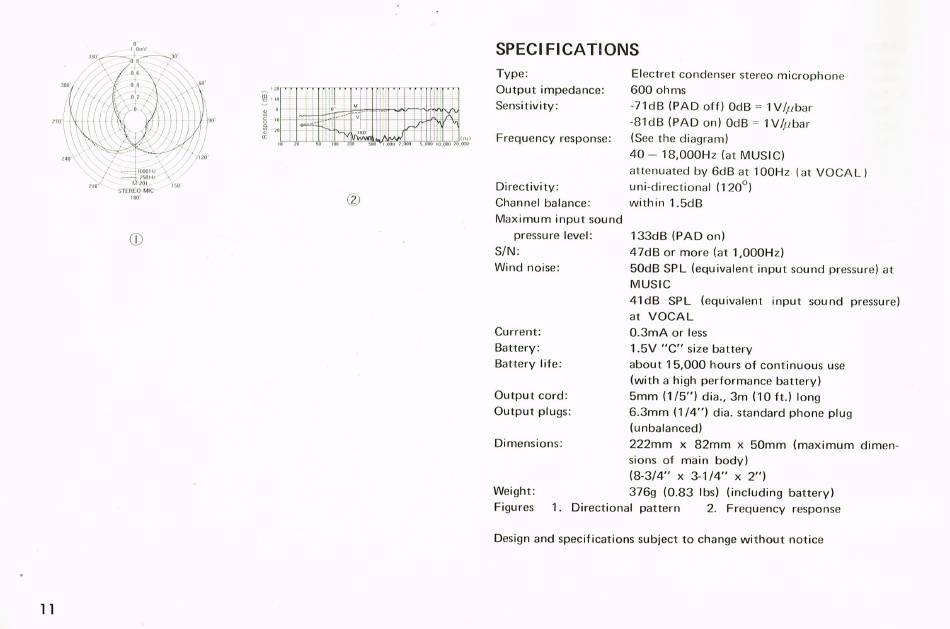

SPECIFICATIONS
Type:
Electret condenser stereo microphone
Output impédance:
600 ohms
Sensitivity:
-71dB (PAD off) 0dB
=
1V/µbar
-81dB (PAD on) 0dB
=
1V/µbar
Frequency response:
(See the diagram)
40 - 18,000Hz (at MUSIC)
attenuated by 6d8 at 100Hz lat VOCAL)
uni-directional (120°)
within 1.5dB
Oirectivi tv:
Channel balance:
CD
Maximum input sound
pressure level:
S/N:
Wind noise:
Current:
Battery:
Battery I ife:
Output cord:
Output plugs:
Dimensions:
Weight:
133dB (PAD on)
47dB or more (at 1,000Hz)
50dB SPL (equivalent input sound pressure) at
MUSIC
41dB SPL (equivalent input sound pressure)
at VOCAL
0.3mA or less
1.5V "C" size battery
about 15,000 hours of continuous use
(with a high performance battery)
5mm (1/5") dia.. 3m (10 ft.) long
6.3mm ( 1 /4") dia. standard phone plug
(unbalanced)
222mm x 82mm x 50mm (maximum dimen-
sions of main body)
(8-3/4"
X
3-1 /4"
X
2")
376g (0.83 lbs) (including battery)
Figures
1. Directional pattern
2. Frequency response
Design and specifications subject to change without notice
11
