is a risk of fire, such as garages, mews, fuel stores, etc. and
is ventilated in compliance with the standards in force.
Air from the adjoining room to the one to be ventilated may
be made to freely pass through permanent apertures with a
cross section at least equal to that indicated above. These
apertures may also be obtained by increasing the gap
between the door and the floor (fig.3B).
If an electric fan is used for extracting the combustion
products, the ventilation aperture must be increased in
relation to its maximum performance. The electric fan should
have a sufficient capacity to guarantee an hourly exchange
of air equal to 3-5 times the volume of the kitchen. Prolonged,
intensive use of the appliance may require extra ventilation,
e.g. an open window or a more efficient ventilation system
by increasing the extraction power of the electric fan if
installed.
Liquid petroleum gas descends towards the floor as it is
heavier than air. Apertures in the outside walls in rooms
containing LPG cylinders should therefore be at floor level,
in order to allow any gas from leaks to be expelled. Do not
store LPG cylinders (even when empty) in basements/rooms
below ground level; it is advisable to keep only the cylinder
in use in the room at any one time and connected far from
heat sources which could raise its temperature to above 50
°C.
Installation
These instructions are given for a class 1 and category
II 2H3+ appliance.
Make sure you take all the necessary precautions to
guarantee proper installation in compliance with the
applicable norms in force regarding accident-prevention for
electrical connection. For the correct operation of the
appliance when built into the cabinet, it is vital that the

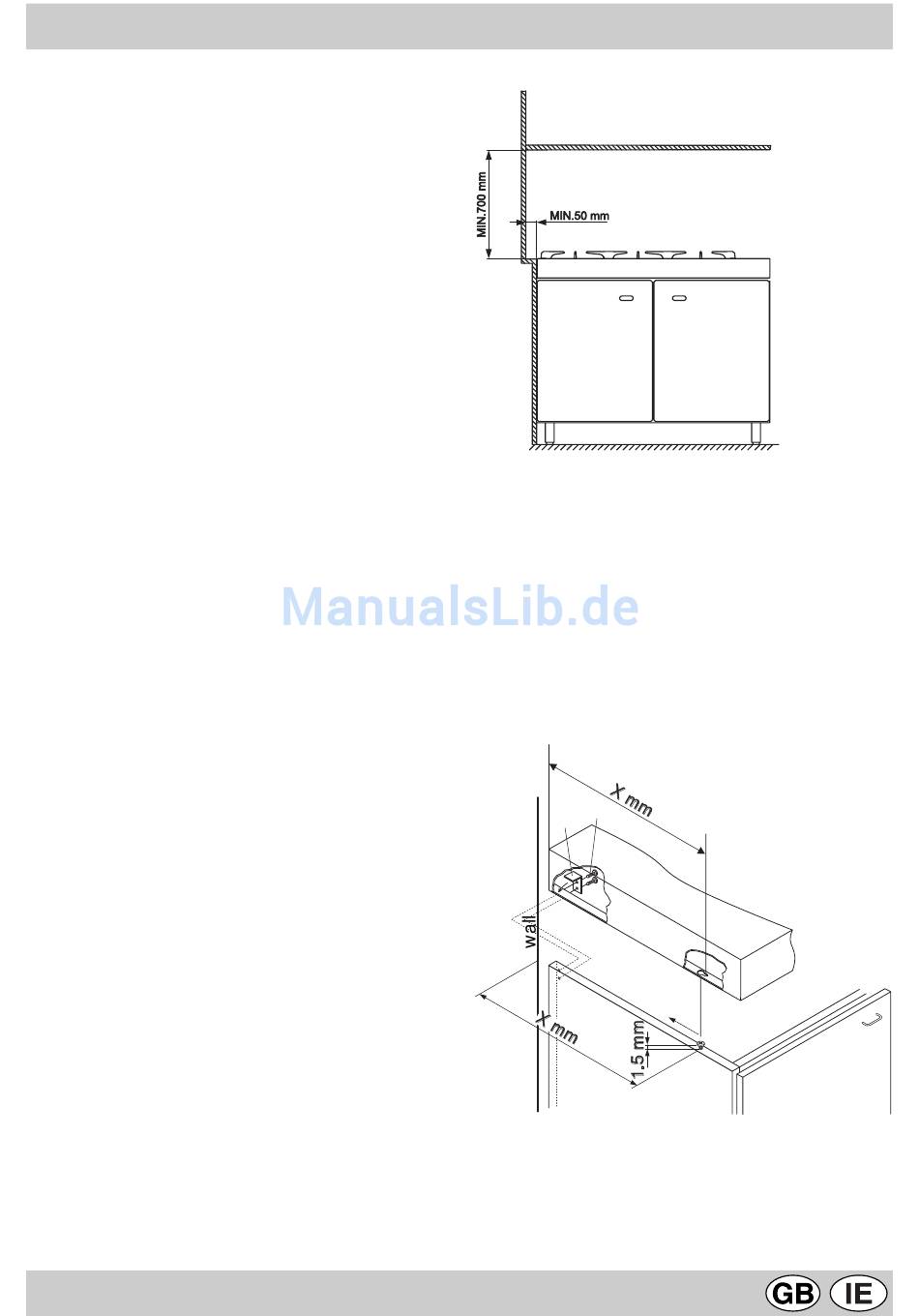

minimum distances illustrated in fig. 4 be respected. The
hob features a type Y degree of protection against
overheating in compliance with norm EN60335-2-6. All
surfaces adjacent to the cabinet and the back panel should
be made of materials resistant to a temperature of 65°C.
Fixing to the unit
To fasten the hob to the cabinet, carry out the following steps
(fig. 5):
· screw the 2 screws "A" (provided with the appliance) to
the cabinet, allowing the screw heads to protrude approx.
2 mm from the wood;
· hook the hob to the 2 screws "A" and push it backwards;
· fasten the hob to the cabinet at the back using the 2
flanges "B" and the 4 screws "C" provided with the
appliance.
Gas supply connection
• Check that the appliance is set for the type of gas available
and then connect it to the mains gas piping or the gas
cylinder in compliance with current regulations and
standards.
• This appliance is designed and set to work with the gas
indicated on the label situated on the actual hob. If the
gas supply is other than the type for which the appliance
has been set, proceed with replacing the corresponding
nozzles (provided), following instructions given in the
paragraph "Adaptation to different types of gas".
C
B
12
fig.4
A
fig.5
