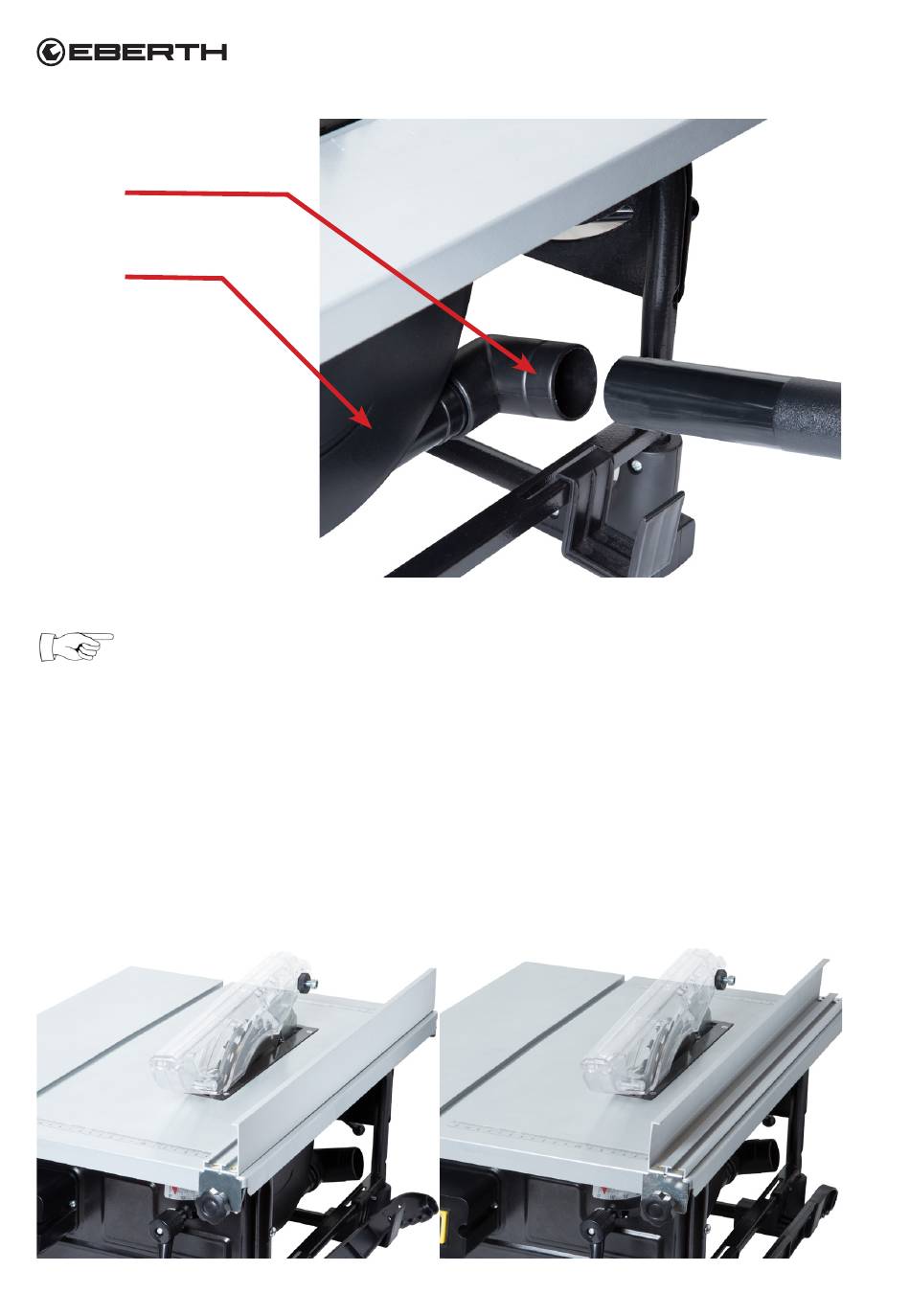

Assembly and replacement of parallel stop
Install the parallel stop for later longitudinal cutting of workpieces or
install the transverse stop for later cross cutting of workpieces.
• Install the stop bar (21), p.13 for the parallel stop on the saw table (1), p.1 1 using the
clamping plate (30), p.13 and the screw with washer and nut (29), p.13.
• Install the stop bar for the parallel stop on the outside of the saw table with the screw
and washer. Connect the parts to one unit by holding the clamping plate and nut
against the saw table from the inside.
• Mount and tighten the unit on both sides of the saw table.
Fig. 12
20
Fig. 13
Fig. 1 1
V. 1.0
