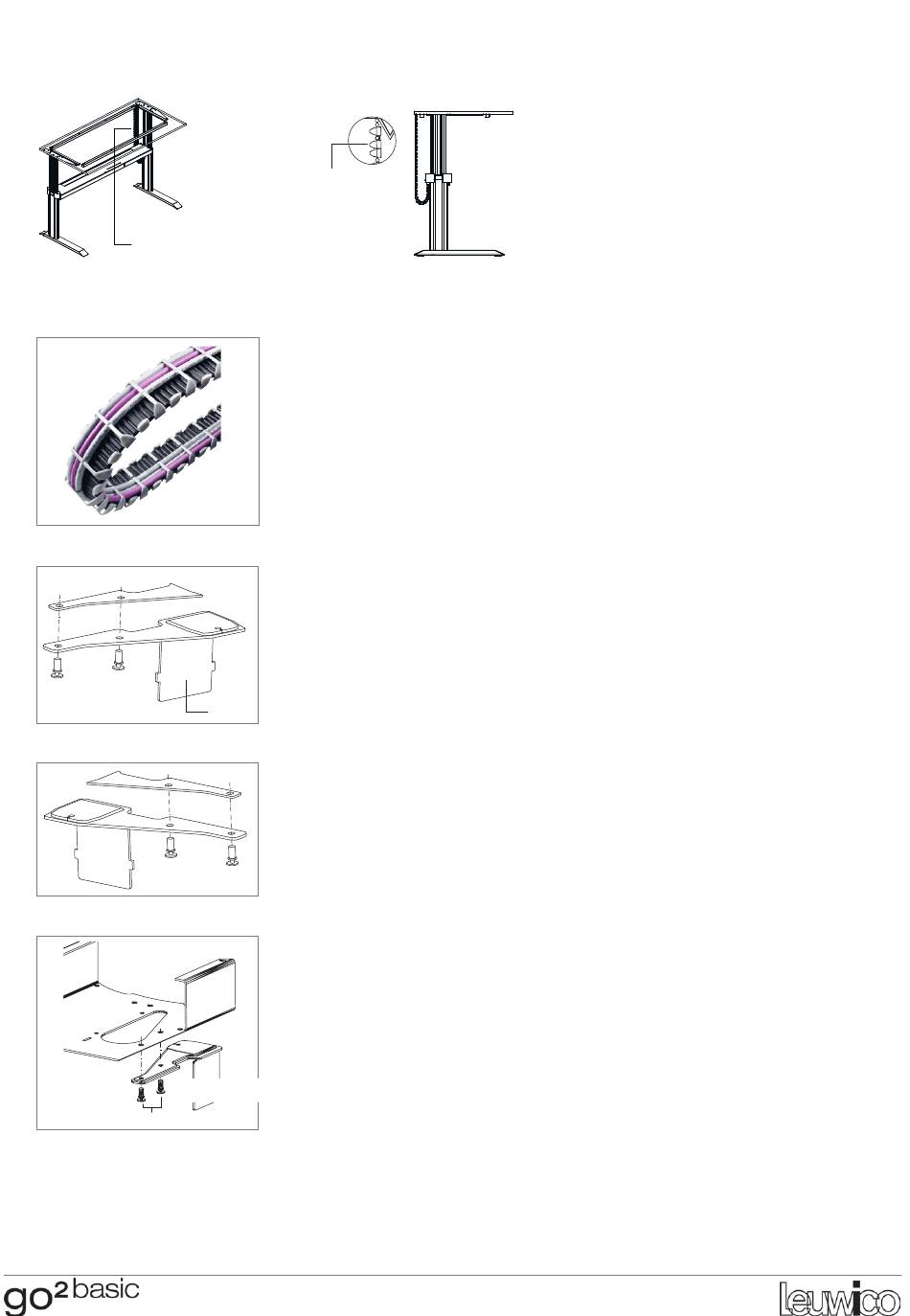

MONTAGE KABELKETTE |
Kabelkette
(rechts montiert)
cable chain
(fixed at the right side)
Quertraverse
cross rail
Kunststoff-Blindnieten
plastic blind rivets
MOUNTING OF CABLE CHAIN
Krallen außen!
clamps outside!
Optional kann die Kabelkette für dickere
Kabelstränge vorder- und rückseitig genutzt
werden, wenn jedes zweite Krallenpaar
herausgenommen und zur Rückseite hin
wieder eingesetzt wird�
Die drei Teile des Befestigungsadapters
zusammenstecken�
Position bei Montage rechts
Winkel 1
angle 1
Position des 3-teiligen Befestigungsadap-
ters bei Montage links
Befestigung des Adapters an der Quer-
traverse durch Eindrücken der beiden
Kunststoff-Blindnieten. (Für Demontage die
Blindnietenköpfe mit einem Schraubenzie-
her einfach anheben�)
*Genaue Bezeichnung des Montagematerials siehe S� 24 |
• Montage der Kabelkette links und/oder rechts am
Tisch möglich�
• Ist ein CPU-Halter innen am Seitenteil des Tisches
montiert, muss die Kabelkette um 28 cm eingerückt
werden�
• The cable chain can be fixed on the left and/or right
side of the desk�
• If a CPU holder is mounted at the inside of the desk
frame side part the cable chain must be moved by
28 cm to the centre of the desk�
Optionally you can use the front and rear
side of the cable chain for stronger cable
cords� Remove every second pair of claws
and insert it to the rear side�
Put the three parts of the fixing adapter
together for mounting on the right side�
Position of the threepart fixing adapter for
mounting on the left side�
Insert the two plastic blind rivets in order
to fix the adapter on the cross rail. (For
demounting simply lift the blind rivet heads
with a screw-driver)�
*Exact description of the assembly material see page 24
