6 Calibration
Labmax is calibrated according to DIN EN ISO 8655-5:2002 and DIN EN ISO
8655-6:2002. After each assembly you have to calibrate the device following the
instructions below.
1. Remove safety cap
2. The built-in recalibration mechanism is now visible (picture 1).
3. Attach the calibration tool or standard hex key to the safety bolt (picture 2).
4. Pull out calibration tool together with the safety bolt.
5. Attach the calibration tool with the thicker side to the piston (picture 3).
6. To recalibrate an undersized volume, rotate the calibration tool clockwise. To
recalibrate an oversized volume, rotate the calibration tool counter-clockwise.
7. Attach safety bolt to the piston (picture 2).
8. Check the volume. If the measured volume exceeds the tolerance limits calibra-
te the device once again.
9. If the calibration was successful, attach safety cap (picture 4).

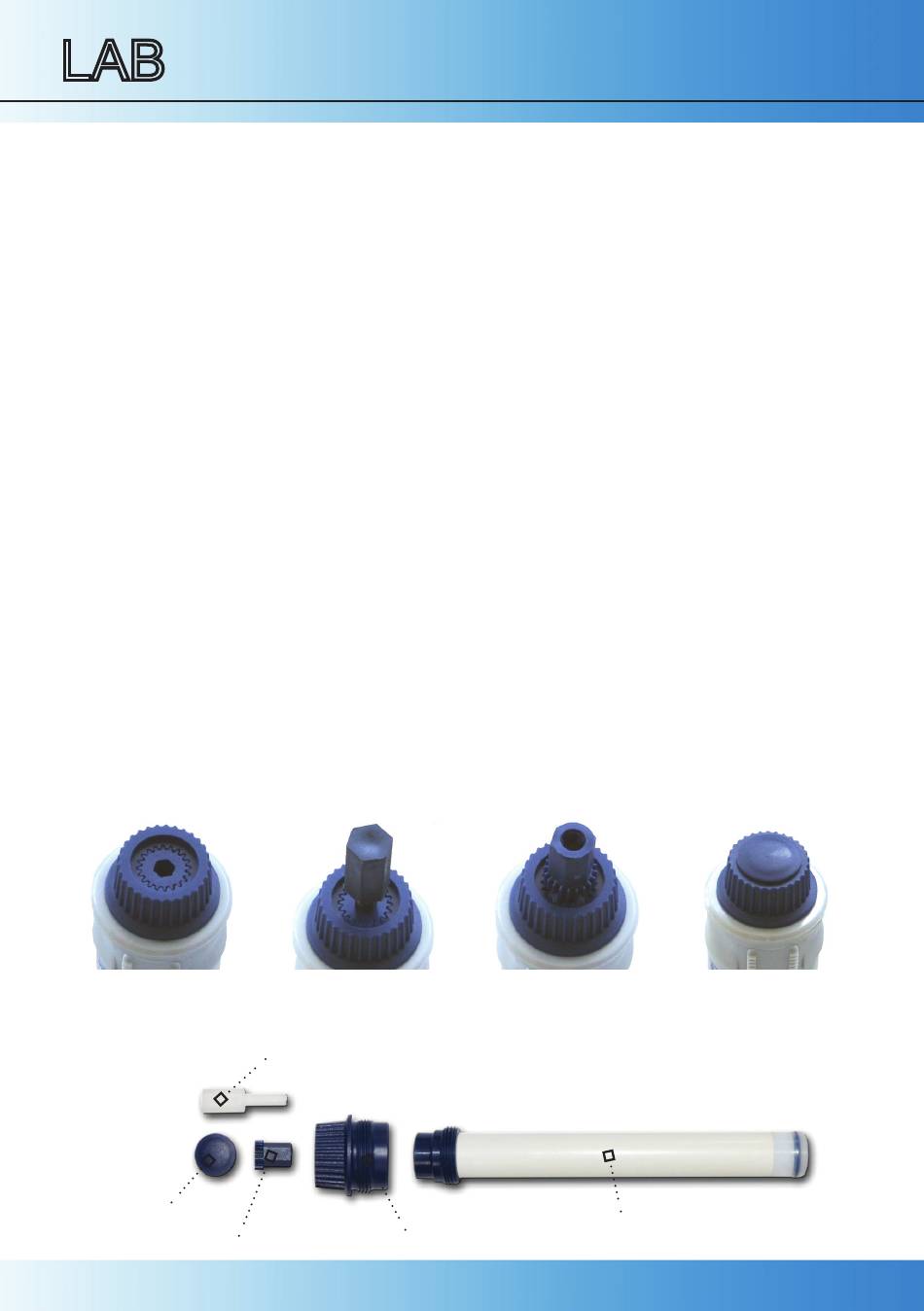

Picture 1
Safety cap
Safety bolt
24
premium
Picture 2
Calibration tool
Fix screw
Picture 3
Piston
Picture 4
