max
LAB
5 Cleaning and maintenance

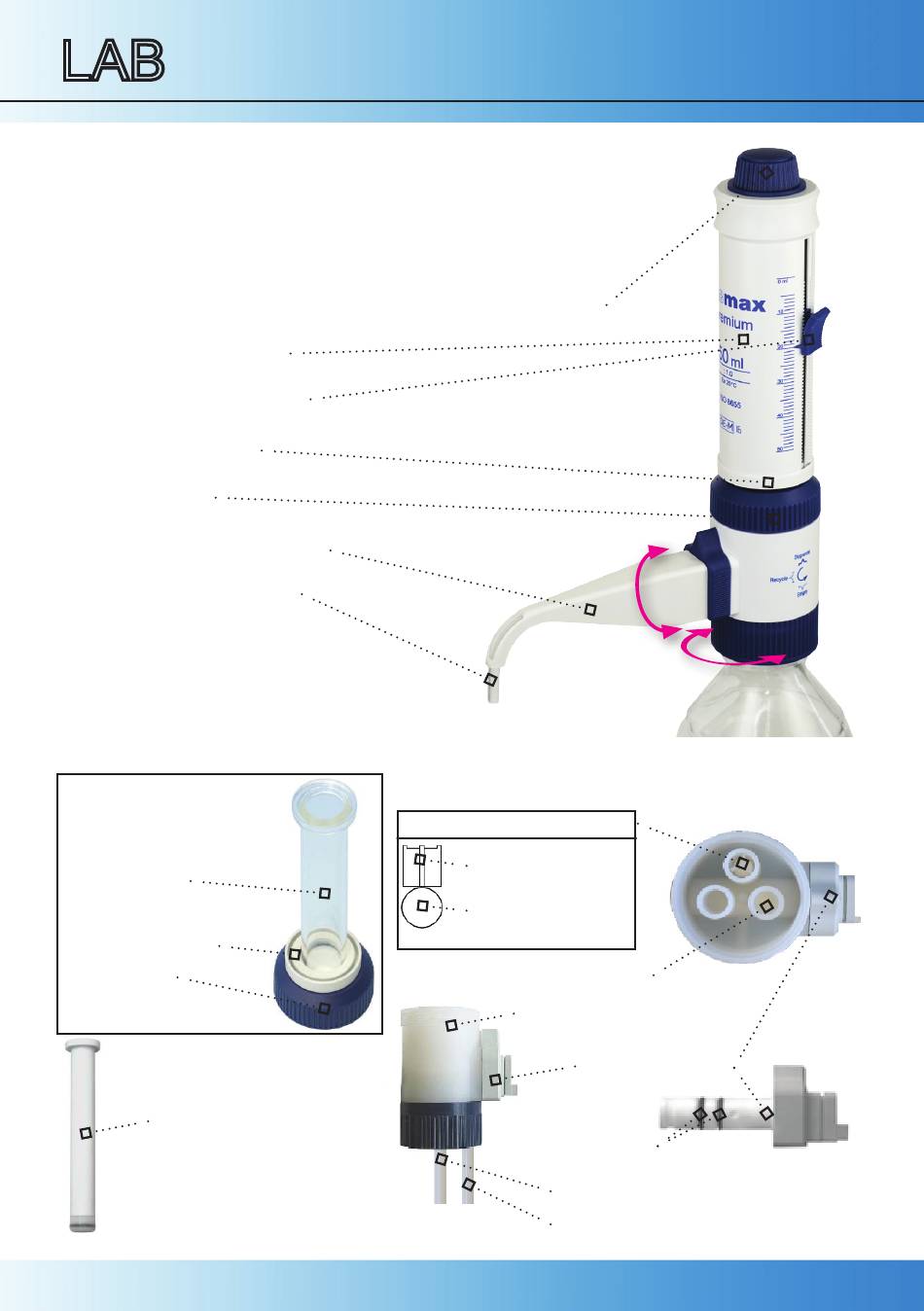

5.1 Description of the components
[1] Fix screw with recalibration mechanism
[2] Outer housing
[3] Quick lock knob
[4] Adaptor ring
[5] Cap nut
[6] Protective sleeve
[7] Discharge tube
[14] Cylinder set:
[16] Cylinder
[4] Adaptor ring
[5] Cap nut
[15] Piston
20
premium
[8] Suction valve
[9] Valve star
[10] Valve ball
IMPORTANT: Edges on top!
[11] Ejection valve
180°
90°
0°
[17] Valve block
[12] Valve axle
[13] O-Ring
[18] Suction tube
[19] Reflux tube
360°
