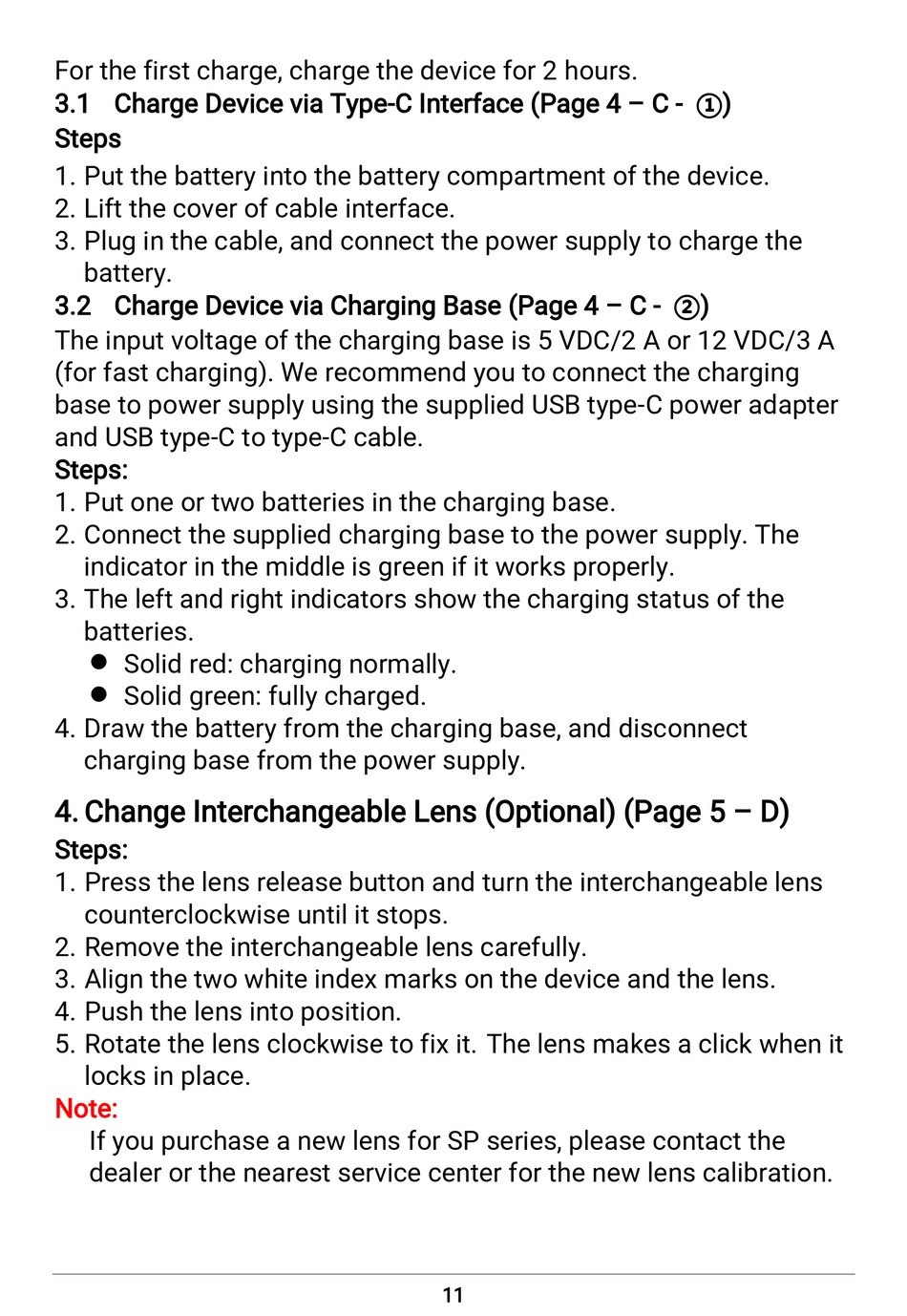

For the first charge, charge the device for 2 hours.
3.1 Charge Device via Type-C Interface (Page 4 – C - ①)
Steps
1. Put the battery into the battery compartment of the device.
2. Lift the cover of cable interface.
3. Plug in the cable, and connect the power supply to charge the
battery.
3.2 Charge Device via Charging Base (Page 4 – C - ②)
The input voltage of the charging base is 5 VDC/2 A or 12 VDC/3 A
(for fast charging). We recommend you to connect the charging
base to power supply using the supplied USB type-C power adapter
and USB type-C to type-C cable.
Steps:
1. Put one or two batteries in the charging base.
2. Connect the supplied charging base to the power supply. The
indicator in the middle is green if it works properly.
3. The left and right indicators show the charging status of the
batteries.
Solid red: charging normally.
Solid green: fully charged.
4. Draw the battery from the charging base, and disconnect
charging base from the power supply.
4. Change Interchangeable Lens (Optional) (Page 5 – D)
Steps:
1. Press the lens release button and turn the interchangeable lens
counterclockwise until it stops.
2. Remove the interchangeable lens carefully.
3. Align the two white index marks on the device and the lens.
4. Push the lens into position.
5. Rotate the lens clockwise to fix it. The lens makes a click when it
locks in place.
Note:
If you purchase a new lens for SP series, please contact the
dealer or the nearest service center for the new lens calibration.
11
