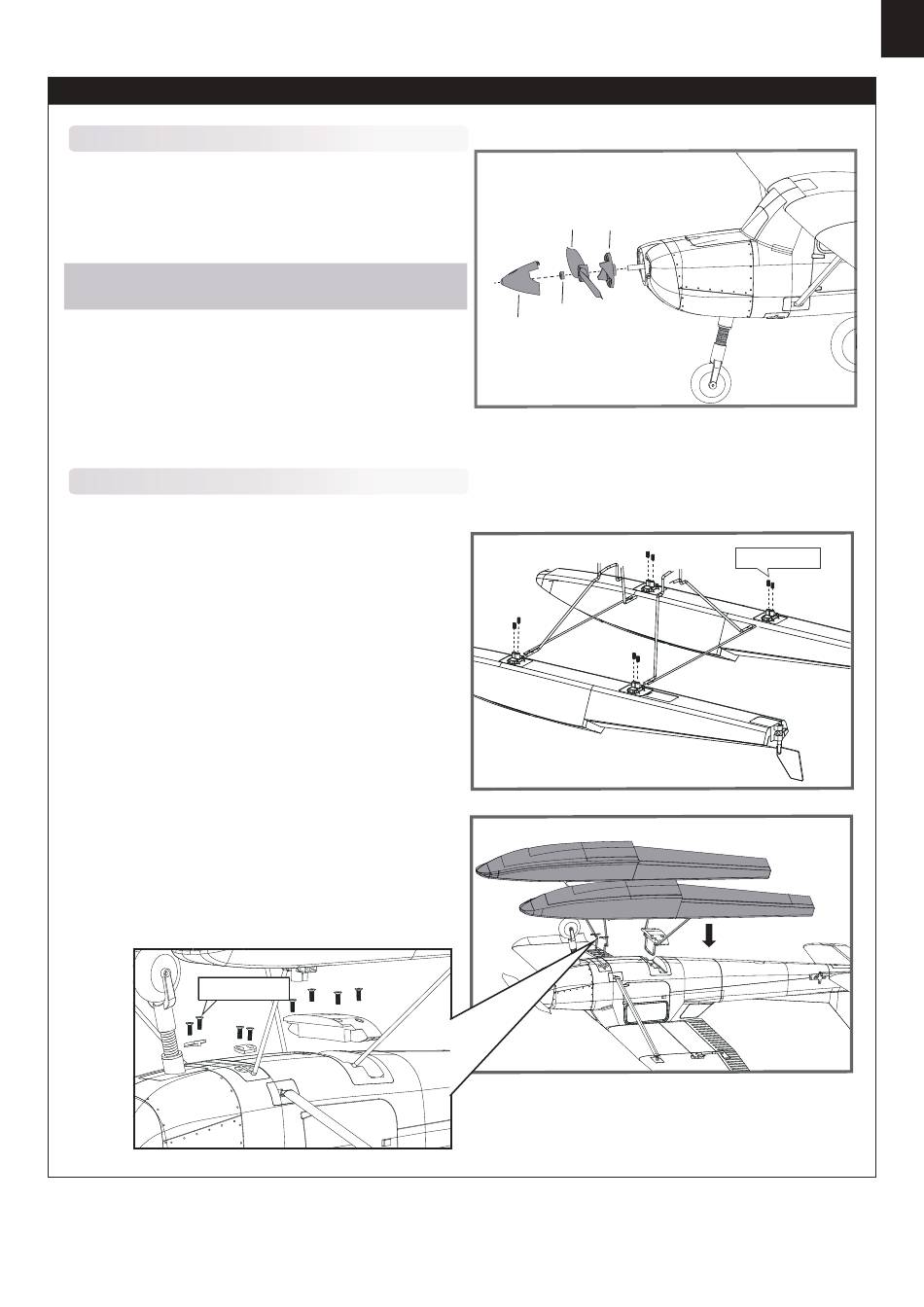

Model assembly

Propeller installation

1.Assemble the spinner and propeller as shown.
Note: the motor should rotate clockwise when viewing the plane
from the rear.
Floats installation
1. Connect the float struts to the fuselage as shown.
2. Secure the floats to the aircraft using the included screws.
Connect the water rudder servo cable to its port, then secure
using the included plastic retainer and screws.
