User Information
IG09
Incremental encoder
ENGLISH
1. Safety information
In order to carry out installation correctly, we
strongly recommend this document is read very
carefully. This will ensure your own safety and
the operating reliability of the device.
• Your device has been quality controlled, te-
sted and is ready for use. Please respect all
warnings and information which are marked
either directly on the device or in this document.
• Warranty can only be claimed for components
supplied by SIKO GmbH. If the system is used
together with other products, the warranty for the
complete system is invalid.
• Repairs should be carried out only at our
works. If any information is missing or unclear,
please contact the SIKO sales staff.
2. Identification
Please check particular type of unit and type
number from the identification plate. Type num-
ber and the corresponding execution are indica-
ted in the delivery documentation.
e.g. IG09-0023
IG09 Datum 25.08.1999
type number
type of unit
Art.Nr. 76363
3. Installation
The unit should be used only up to the IP-
protection level stated. Protect the unit, if neces-
sary, against environmental influences such as
sprayed water, dust, knocks, extreme tempera-
tures.
Stick gasket to encoder's mounting face. Slide
IG09 onto the solid shaft, insert torque pin into
the prebored mounting hole and use grub screw
to fix the IG09's hollow shaft to the machine's
solid shaft (see fig. 1).
• Ensure sliding fit between solid shaft and
IG09.
• Ensure accurate shaft alignment and mount
the IG09 without force. Do not exceed the values
for the maximum axial and radial shaft load. If
the shaft is not correctly aligned, strain on the
bearings will result, which may cause overhea-
ting and irreparable damage.
• Especially when using torque pin type A for
fixing, ensure that IG09 does not jam and that it
is mounted without strain. Please remember this
when choosing the IG09's bore diameter.
• Avoid knocking the unit.
Torque pin type A : pin ø 6 h9

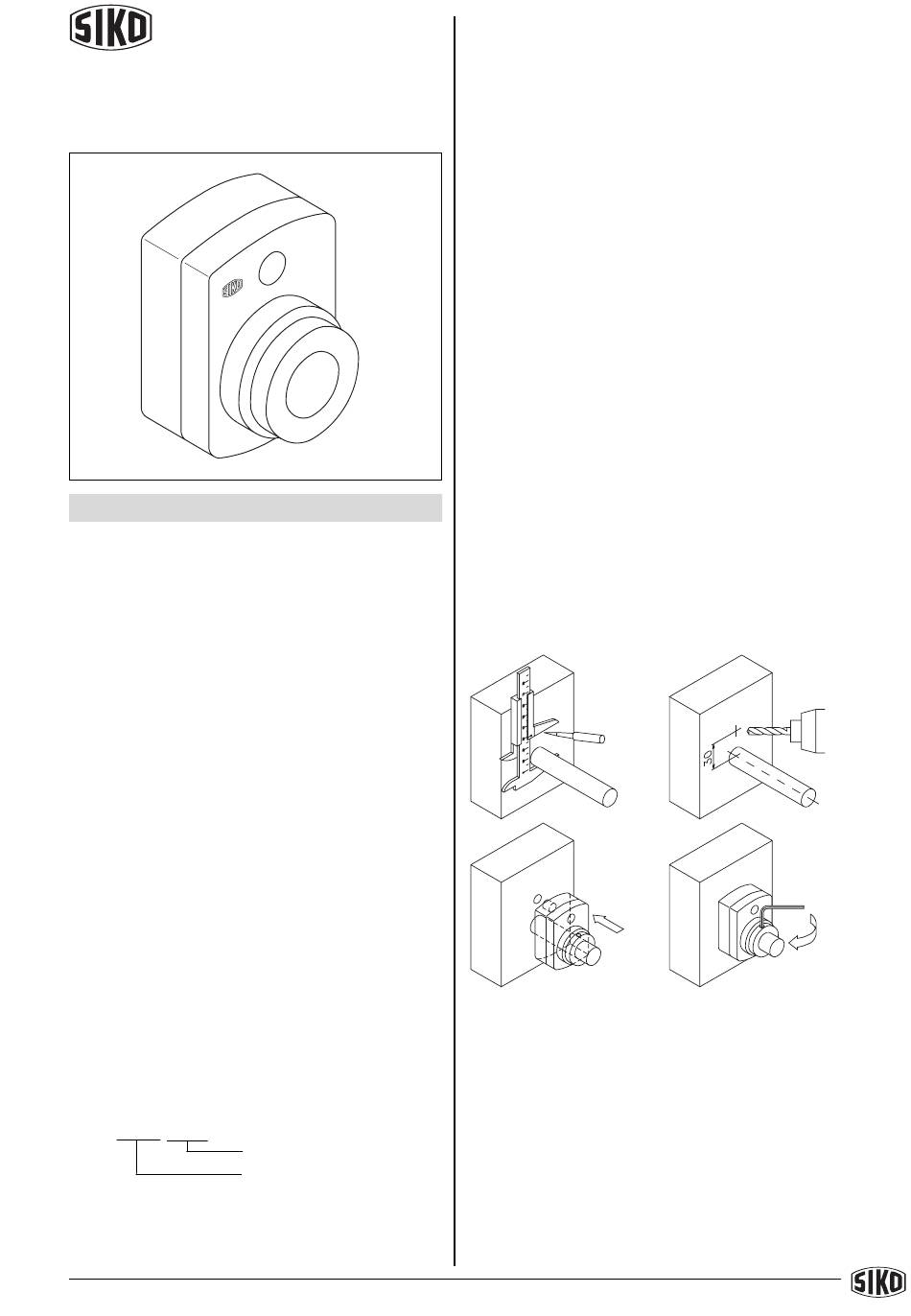

Fig. 1: Mounting instructions
If encoder IG09 is to be mounted with an inter-
mediate plate (option) first fix the plate as
described above and then mount the encoder.
4. Electrical connection
• Switch power off before any plug is inserted or
removed!
• Any wiring must only be carried out without
power.
Z.Nr. 8661031
type B : bore ø 10 +0.8
Änd.Stand 339/99 5
