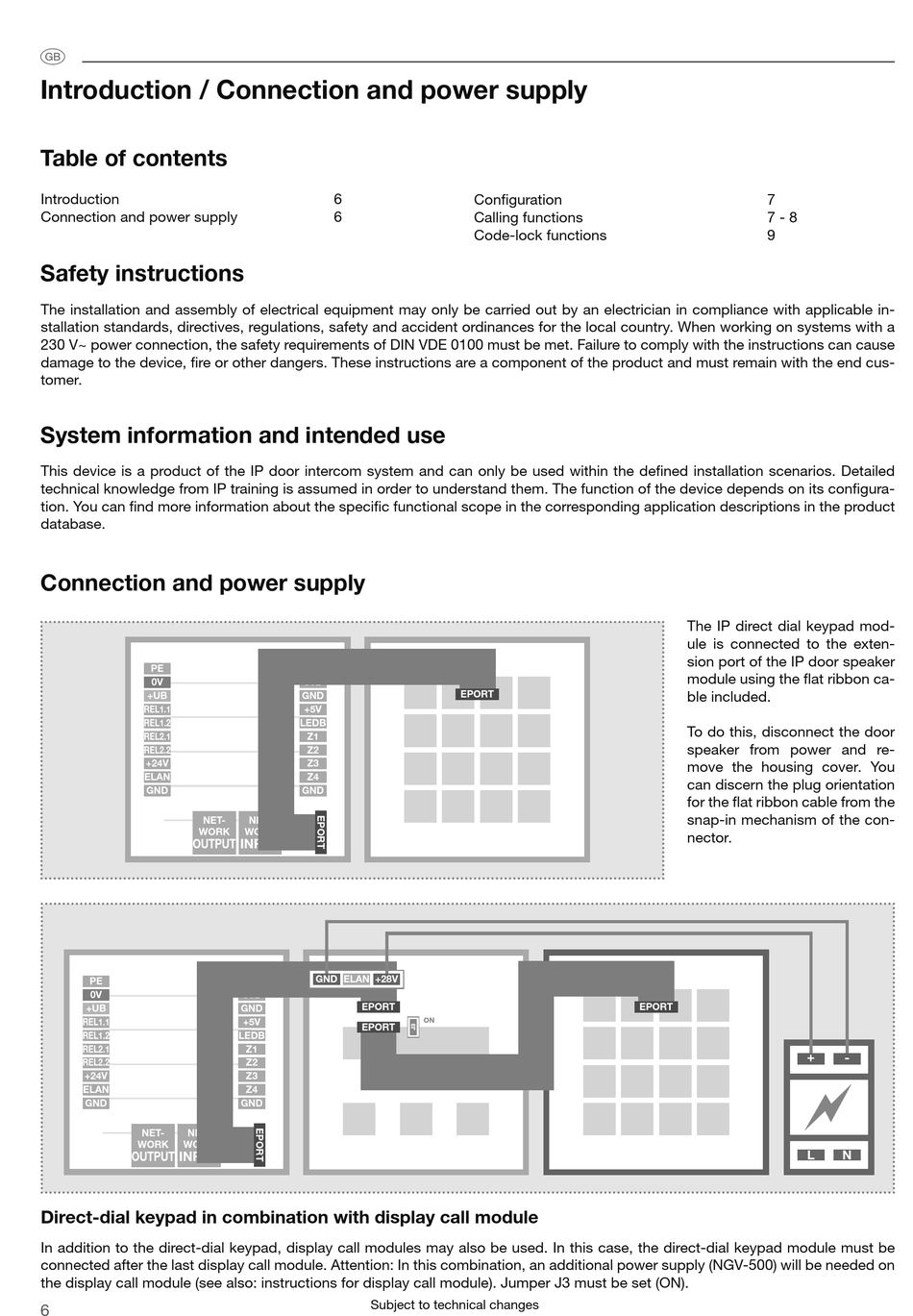

Introduction / Connection and power supply
Table of contents
Introduction
Connection and power supply
Safety instructions
The installation and assembly of electrical equipment may only be carried out by an electrician in compliance with applicable in-
stallation standards, directives, regulations, safety and accident ordinances for the local country. When working on systems with a
230 V~ power connection, the safety requirements of DIN VDE 0100 must be met. Failure to comply with the instructions can cause
damage to the device, fire or other dangers. These instructions are a component of the product and must remain with the end cus-
tomer.
System information and intended use
This device is a product of the IP door intercom system and can only be used within the defined installation scenarios. Detailed
technical knowledge from IP training is assumed in order to understand them. The function of the device depends on its configura-
tion. You can find more information about the specific functional scope in the corresponding application descriptions in the product
database.
Connection and power supply
PE
0V
+UB
REL1.1
REL1.2
REL2.1
REL2.2
+24V
ELAN
GND
NET-
WORK
OUTPUT
PE
0V
+UB
REL1.1
REL1.2
REL2.1
REL2.2
+24V
ELAN
GND
NET-
NET-
WORK
WORK
OUTPUT
INPUT
Direct-dial keypad in combination with display call module
In addition to the direct-dial keypad, display call modules may also be used. In this case, the direct-dial keypad module must be
connected after the last display call module. Attention: In this combination, an additional power supply (NGV-500) will be needed on
the display call module (see also: instructions for display call module). Jumper J3 must be set (ON).
6
6
6
S3B
GND
+5V
LEDB
Z1
Z2
Z3
Z4
GND
NET-
WORK
INPUT
GND
ELAN
+28V
S3B
EPORT
GND
+5V
EPORT
LEDB
Z1
Z2
Z3
Z4
GND
Subject to technical changes
Configuration
Calling functions
Code-lock functions
EPORT
ON
7
7 - 8
9
The IP direct dial keypad mod-
ule is connected to the exten-
sion port of the IP door speaker
module using the flat ribbon ca-
ble included.
To do this, disconnect the door
speaker from power and re-
move the housing cover. You
can discern the plug orientation
for the flat ribbon cable from the
snap-in mechanism of the con-
nector.
EPORT
+
L
-
N
