For further information, please contact the frequency
converter supplier or GRUNDFOS.

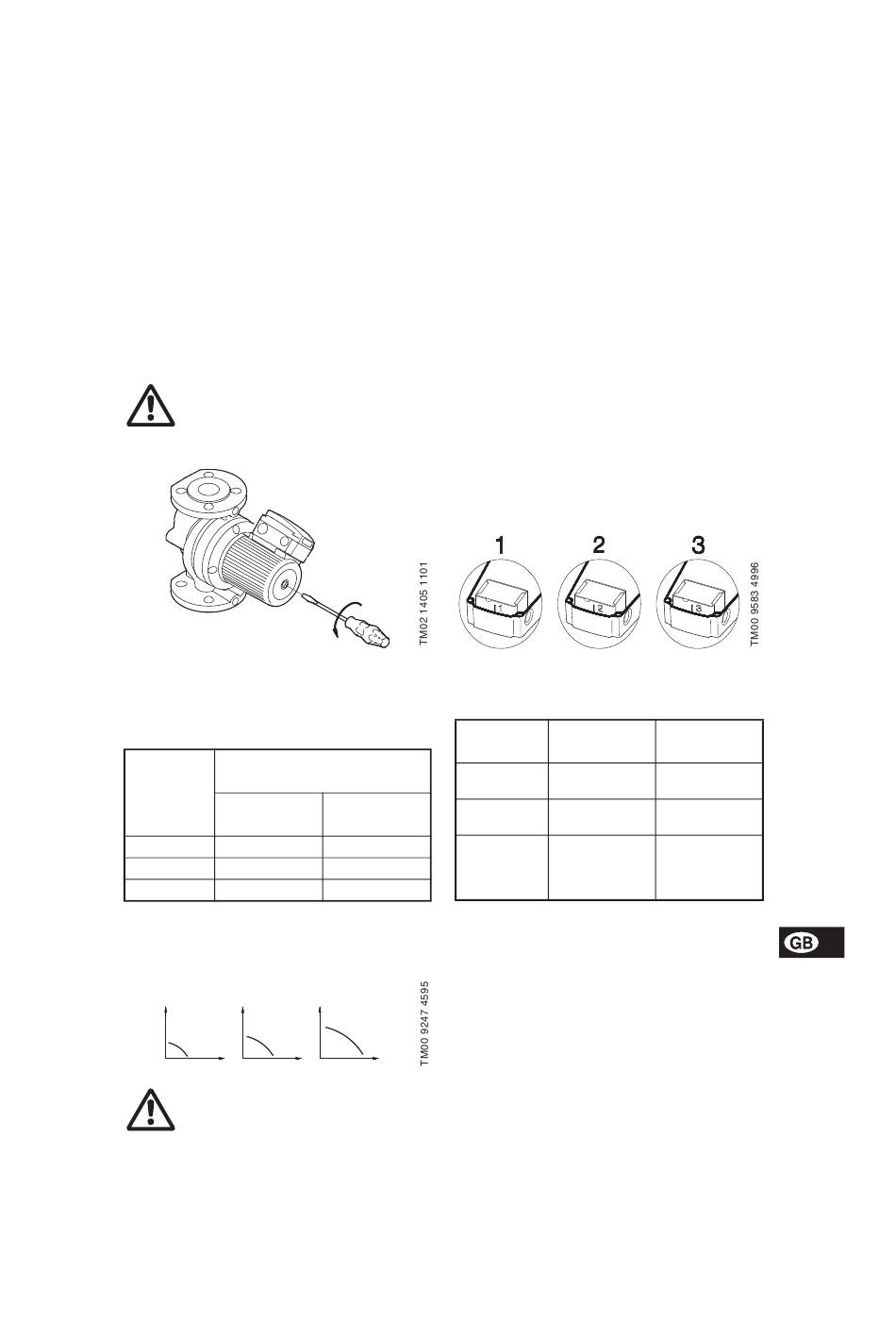

6. Start-up
Do not start the pump until the system has been
filled with liquid and vented. Furthermore, the re-
quired minimum inlet pressure must be available at
the pump inlet, see page 129. The system cannot be
vented through the pump.
As the pump is self-venting, it need not be vented
before start-up.
If the inspection screw is to be slackened,
see fig. 8, care should be taken to ensure
that the escaping, scalding hot liquid does
not cause personal injury or damage to
components.
Fig. 8
7. Speed selection
The speed switch in the terminal box can be turned
to three positions. The speed in the three positions
appears from the table below:
Speed in % of
maximum speed
Switch
position
Single-phase
pumps
1 approx. 60%
2 approx. 80%
3 100%
Change to lower speed settings offers considerable
reduction in energy consumption and less noise in
the system.
Fig. 9
Pump performance at speed settings
H H
1 2
Q
Q
Never make any connections in the pump
terminal box unless the electricity supply
has been switched off.
Change the pump performance as follows:
1. Switch off the electricity supply to the pump by
2. Remove the terminal box cover.
3. Pull out the speed switch module and insert it so
Note: When changing to/from speed 1, the cover of
the speed switch must be removed and fitted on the
other side of the switch.
4. Fit the terminal box cover.
5. Switch on the electricity supply. Check that the
Note: The speed switch module must not be used as
an on/off switch.
Fig. 10
Inspection screw
8. Technical data
Supply voltage
Europe ex-
cept Norway
Three-phase
Norway
pumps
approx. 70%
Japan
approx. 85%
100%
Supply voltage tolerances
The motors meet the requirements to temperature
rise at ±6%.
Furthermore, the motors have been tested at ±10%
of the voltage range. During these tests, the motors
operate without problems and without being ther-
mally cut out.
H
The motor voltage tolerances are intended for mains
3
voltage variations. They should not be used for run-
ning motors at other voltages than those stated on
the nameplates.
Q
Enclosure class
IP 44.
Ambient temperature
0°C to 40°C.
means of the external mains switch. The green
indicator light in the terminal box must be off.
that the number of the required speed is visible
through the window in the terminal box, see fig.
10.
green indicator light is permanently on or flash-
ing.
Speed selection
Speed Speed
SPEED SPEED
Single-phase
pumps
1 x 230-240 V
50 Hz
1 x 230-240 V
50 Hz
1 x 100-110 V
50 Hz
1 x 100-110 V
60 Hz
Speed
SPEED
Three-phase
pumps
3 x 400-415 V
50 Hz
3 x 200-230 V
50 Hz
3 x 200-230 V
50 Hz
3 x 200-230 V
60 Hz
