AWG | Fittings | Medium expansion foam nozzle M2, M4, M8
7 Maintenance
7 .1 Inspection and maintenance
Apart from the visual inspection and cleaning of the AWG Foam nozzles,
no regular maintenance work is required.
7 .2 Repair
1
1
Conversion screen
2 Protection ring (M2 and M4)
3 Internal thread screw
4
Handle
5 Disc
6 Cylinder head screw

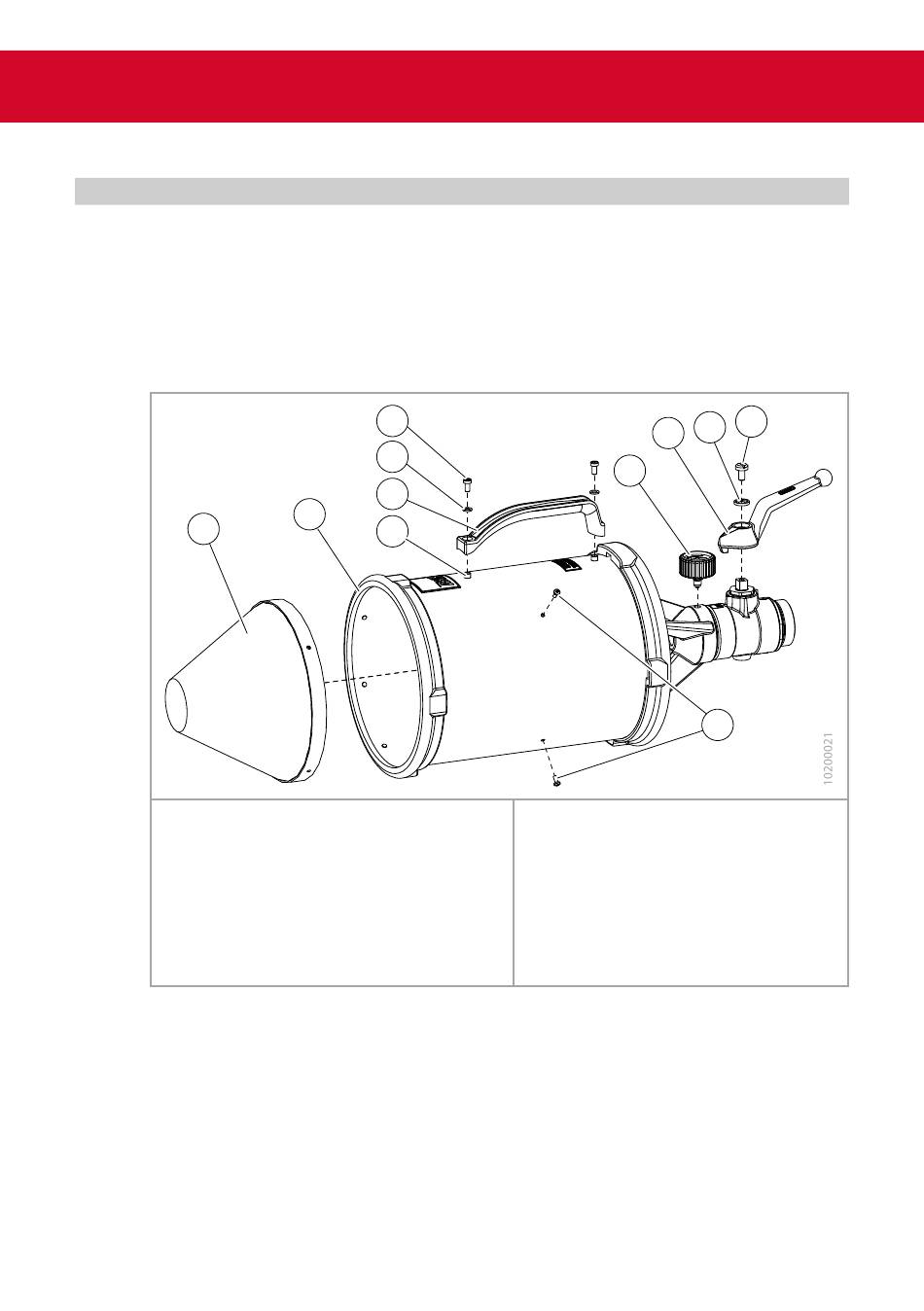

Fig. 3 Repair
Replacing the conversion screen
1. Use a screwdriver to unscrew the three oval head screws (Fig. 3/11).
2. Remove the conversion screen (Fig. 3/1) from the foam tube.
3. Clean the foam tube.
M1107B10 | Rev. 03-08/24
6
5
4
2
3
8
7
7
Pressure gauge
8 Hand lever (option)
9 Disc
10
Screw
11 Oval head screw
MAINTENANCE
10
9
11
