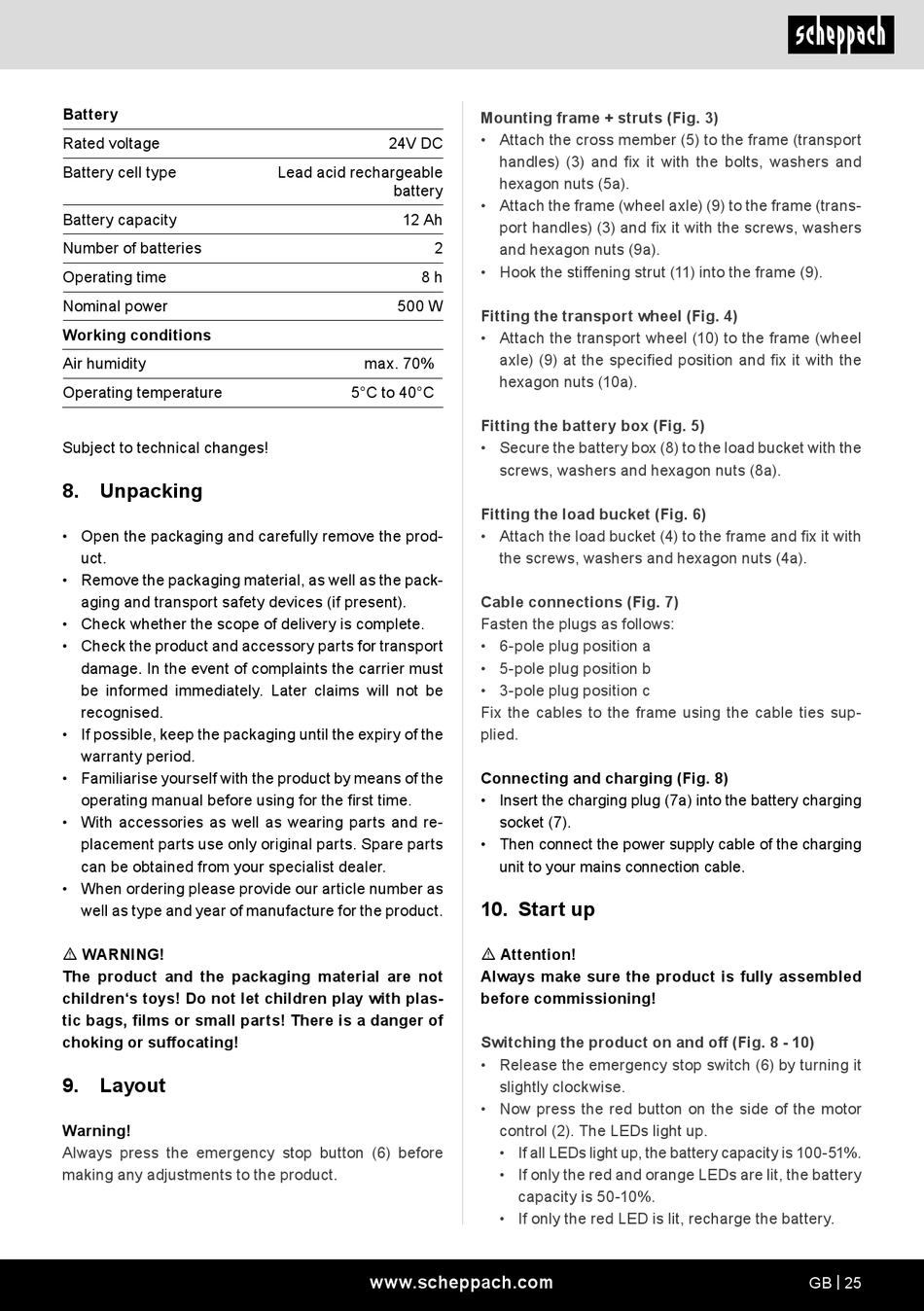

Scheppach ESK600 Originalbetriebsanleitung Seite 25

Battery
Rated voltage
Battery cell type
Battery capacity
Number of batteries
Operating time
Nominal power
Working conditions
Air humidity
Operating temperature
Subject to technical changes!
8. Unpacking
• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the product.
m WARNING!
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Layout
Warning!
Always press the emergency stop button (6) before
making any adjustments to the product.
24V DC
Lead acid rechargeable
battery
12 Ah
2
8 h
500 W
max. 70%
5°C to 40°C
www.scheppach.com
Mounting frame + struts (Fig. 3)
• Attach the cross member (5) to the frame (transport
handles) (3) and fix it with the bolts, washers and
hexagon nuts (5a).
• Attach the frame (wheel axle) (9) to the frame (trans-
port handles) (3) and fix it with the screws, washers
and hexagon nuts (9a).
• Hook the stiffening strut (11) into the frame (9).
Fitting the transport wheel (Fig. 4)
• Attach the transport wheel (10) to the frame (wheel
axle) (9) at the specified position and fix it with the
hexagon nuts (10a).
Fitting the battery box (Fig. 5)
• Secure the battery box (8) to the load bucket with the
screws, washers and hexagon nuts (8a).
Fitting the load bucket (Fig. 6)
• Attach the load bucket (4) to the frame and fix it with
the screws, washers and hexagon nuts (4a).
Cable connections (Fig. 7)
Fasten the plugs as follows:
• 6-pole plug position a
• 5-pole plug position b
• 3-pole plug position c
Fix the cables to the frame using the cable ties sup-
plied.
Connecting and charging (Fig. 8)
• Insert the charging plug (7a) into the battery charging
socket (7).
• Then connect the power supply cable of the charging
unit to your mains connection cable.
10. Start up
m Attention!
Always make sure the product is fully assembled
before commissioning!
Switching the product on and off (Fig. 8 - 10)
• Release the emergency stop switch (6) by turning it
slightly clockwise.
• Now press the red button on the side of the motor
control (2). The LEDs light up.
• If all LEDs light up, the battery capacity is 100-51%.
• If only the red and orange LEDs are lit, the battery
capacity is 50-10%.
• If only the red LED is lit, recharge the battery.
