THERMASGARD

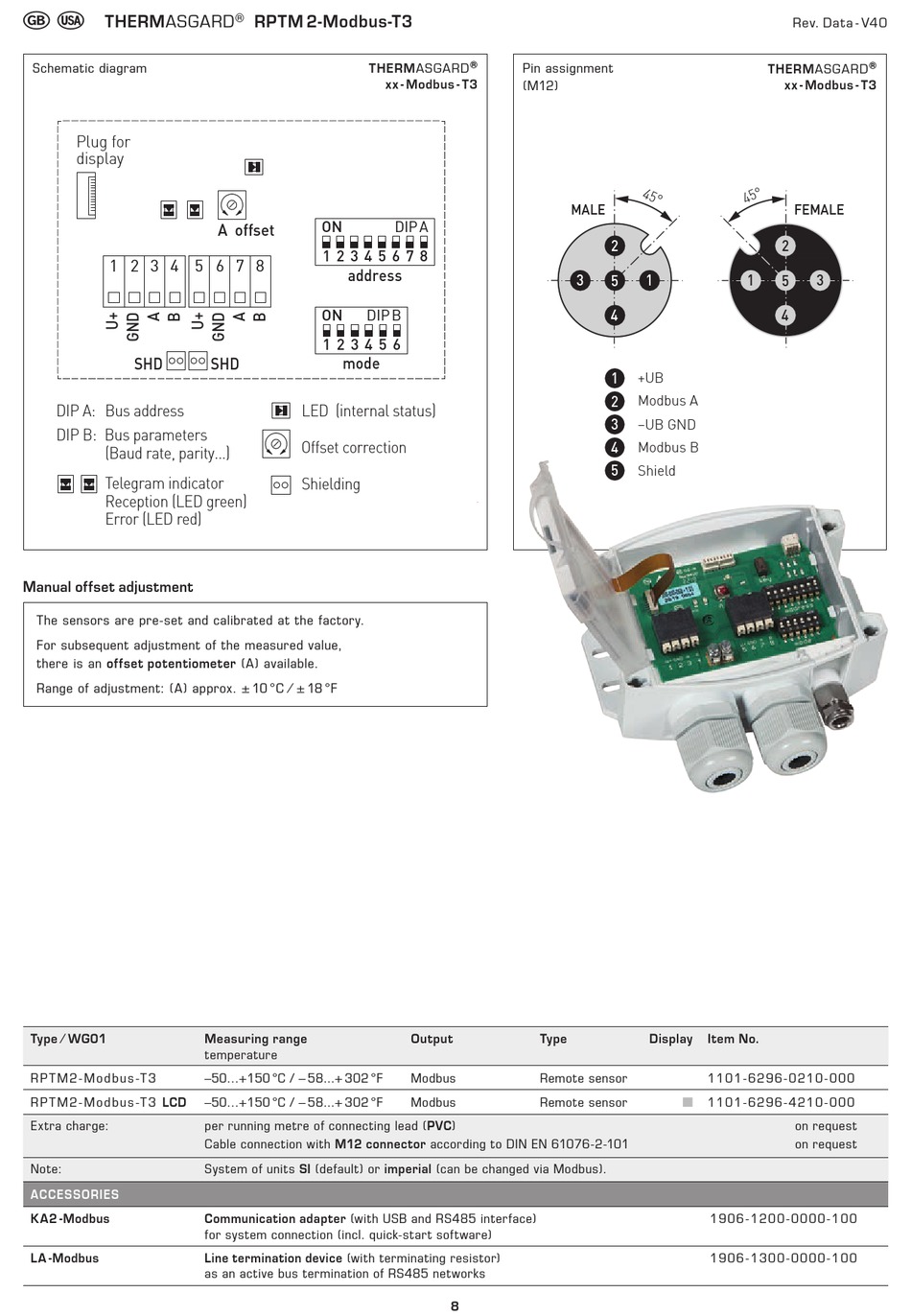

Schematic diagram
Plug for
display
1 2 3 4 5 6 7 8
SHD
DIP A: Bus address
DIP B: Bus parameters
(Baud rate, parity...)
Telegram indicator
Reception (LED green)
Error (LED red)
Manual offset adjustment
The sensors are pre-set and calibrated at the factory.
For subsequent adjustment of the measured value,
there is an offset potentiometer (A) available.
Range of adjustment: (A) approx. ± 10 °C ⁄ ± 18 °F
Type ⁄ WG01
R P T M 2 - M o d b u s -T 3
R P T M 2 - M o d b u s -T 3 LCD
Extra charge:
Note:
ACCESSORIES
KA2 -Modbus
LA -Modbus
®
RPTM 2-Modbus-T3
THERMASGARD
ON
A
offset
1 2 3 4 5 6 7 8
address
ON
DIP B
1 2 3 4 5 6
mode
SHD
LED (internal status)
Offset correction
Shielding
Measuring range
temperature
–50...+150 °C / – 58...+ 302 °F
–50...+150 °C / – 58...+ 302 °F
per running metre of connecting lead (PVC)
Cable connection with M12 connector according to DIN EN 61076-2-101
System of units SI (default) or imperial (can be changed via Modbus).
Communication adapter (with USB and RS485 interface)
for system connection (incl. quick-start software)
Line termination device (with terminating resistor)
as an active bus termination of RS485 networks
®
Pin assignment
xx - Modbus - T3
(M12)
DIP A
Output
Type
Modbus
Remote sensor
Modbus
Remote sensor
8
MALE
2
3
5
1
4
1
+UB
2
Modbus A
3
–UB GND
4
Modbus B
5
Shield
Display
Item No.
1101-6296- 0210- 000
■
1101-6296- 4210- 000
1906-1200 -0000- 100
1906-1300 -0000- 100
Rev. Data - V40
®
THERMASGARD
xx - Modbus - T3
FEMALE
2
1
5
3
4
on request
on request
