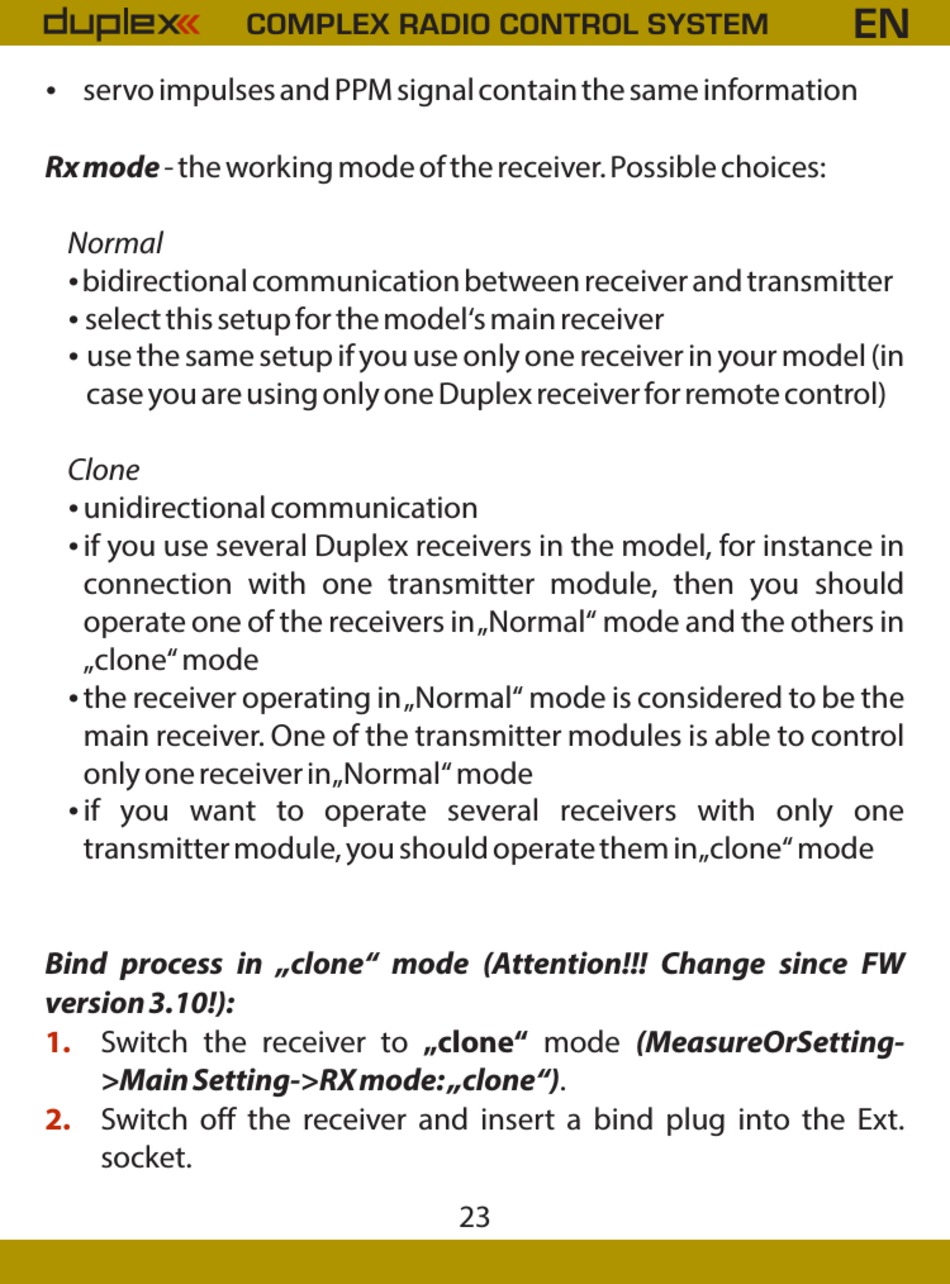

servo impulses and PPM signal contain the same information
ź
Rx mode - the working mode of the receiver. Possible choices:
Normal
bidirectional communication between receiver and transmitter
ź
select this setup for the model's main receiver
ź
use the same setup if you use only one receiver in your model (in
ź
case you are using only one Duplex receiver for remote control)
Clone
unidirectional communication
ź
if you use several Duplex receivers in the model, for instance in
ź
connection with one transmitter module, then you should
operate one of the receivers in „Normal" mode and the others in
„clone" mode
the receiver operating in „Normal" mode is considered to be the
ź
main receiver. One of the transmitter modules is able to control
only one receiver in „Normal" mode
if you want to operate several receivers with only one
ź
transmitter module, you should operate them in „clone" mode
Bind process in „clone" mode (Attention!!! Change since FW
version 3.10!):
1. Switch the receiver to „clone" mode (MeasureOrSetting-
>Main Setting->RX mode: „clone").
2. Switch off the receiver and insert a bind plug into the Ext.
socket.
