The wall cupboard must fulfil the following requirements for installation:
• Thickness of the cupboard base from 16 mm to 19 mm
• Cupboard width of at least 500 mm.
• The installation depth below the cupboard to the wall must be at least 320 mm.
• The cupboard must be designed for a minimum load of 40 kg.
• Before installing the appliance, make sure that there is a socket outlet within
reach of the supply cable.
Installing the appliance

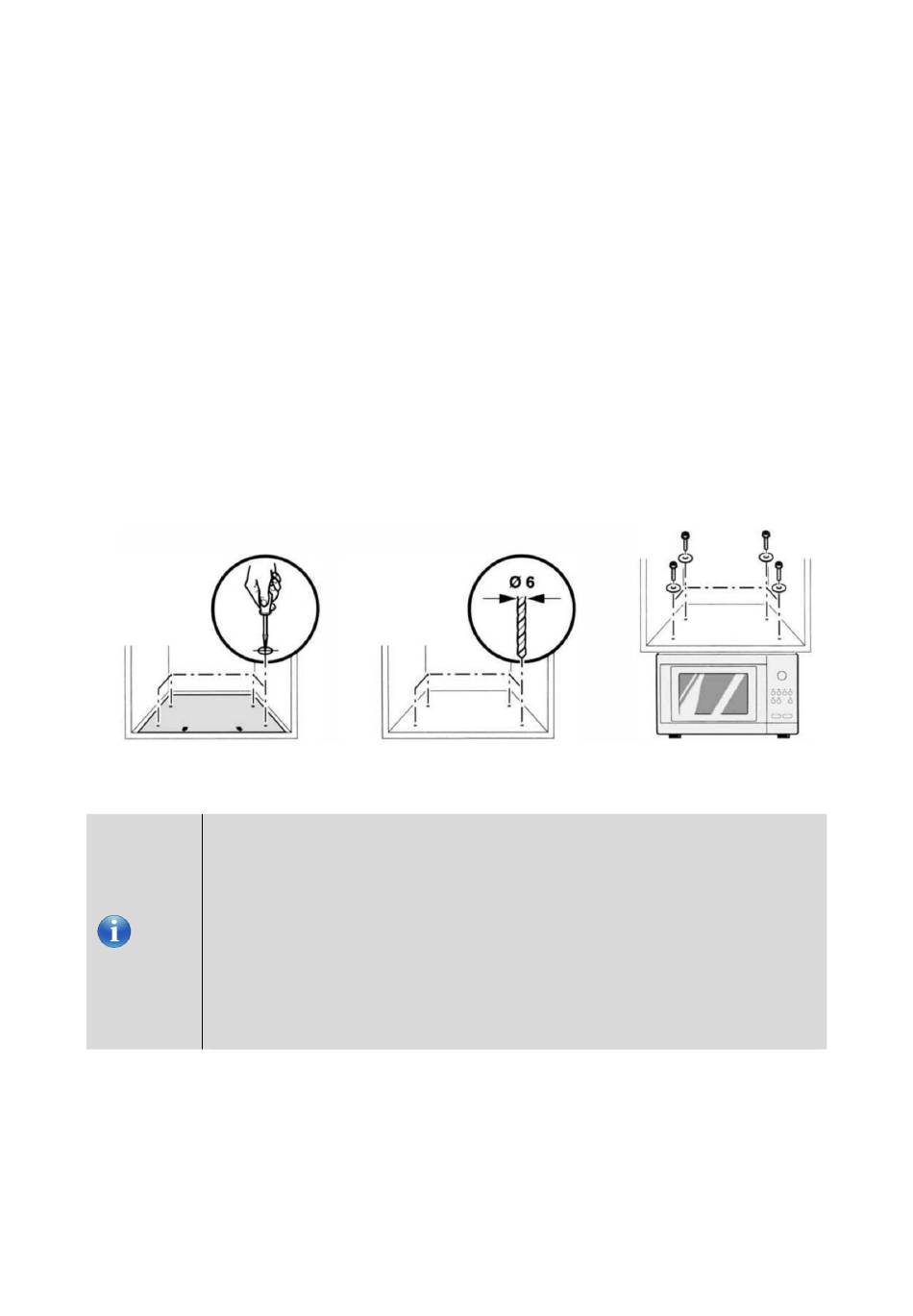

1. Place the drilling template on the wall cupboard base.
2. Make sure that the front edge of the template is exactly in line with the front
edge of the cupboard.
3. Pay attention to the two arrows on the template.
4. Secure the drilling template with adhesive tape to prevent it from slipping.
5. Use a 7 mm drill bit to drill four holes through the drilling template and the
base of the cupboard.
6. Remove the drilling template.
7. Remove the four dummy plugs on the top of the microwave.
8. Secure the microwave to the base of the cupboard using four screws and
washers.
If the microwave is to be flush with the front edge of the door, an instal-
lation depth of 350 mm is required.
➢ The cupboard must not have any cracks, splinters or other da-
➢ The cupboard must be designed for a minimum load of 40 kg.
➢ The wall mounting of the cupboard must be stable and
➢ The distance from the side of the microwave to the cupboard
mage. All connections must be stable.
firmly anchored to the wall with at least
must be at least 15 mm (see red marking).
Page 40 of 60
.
2 screws
