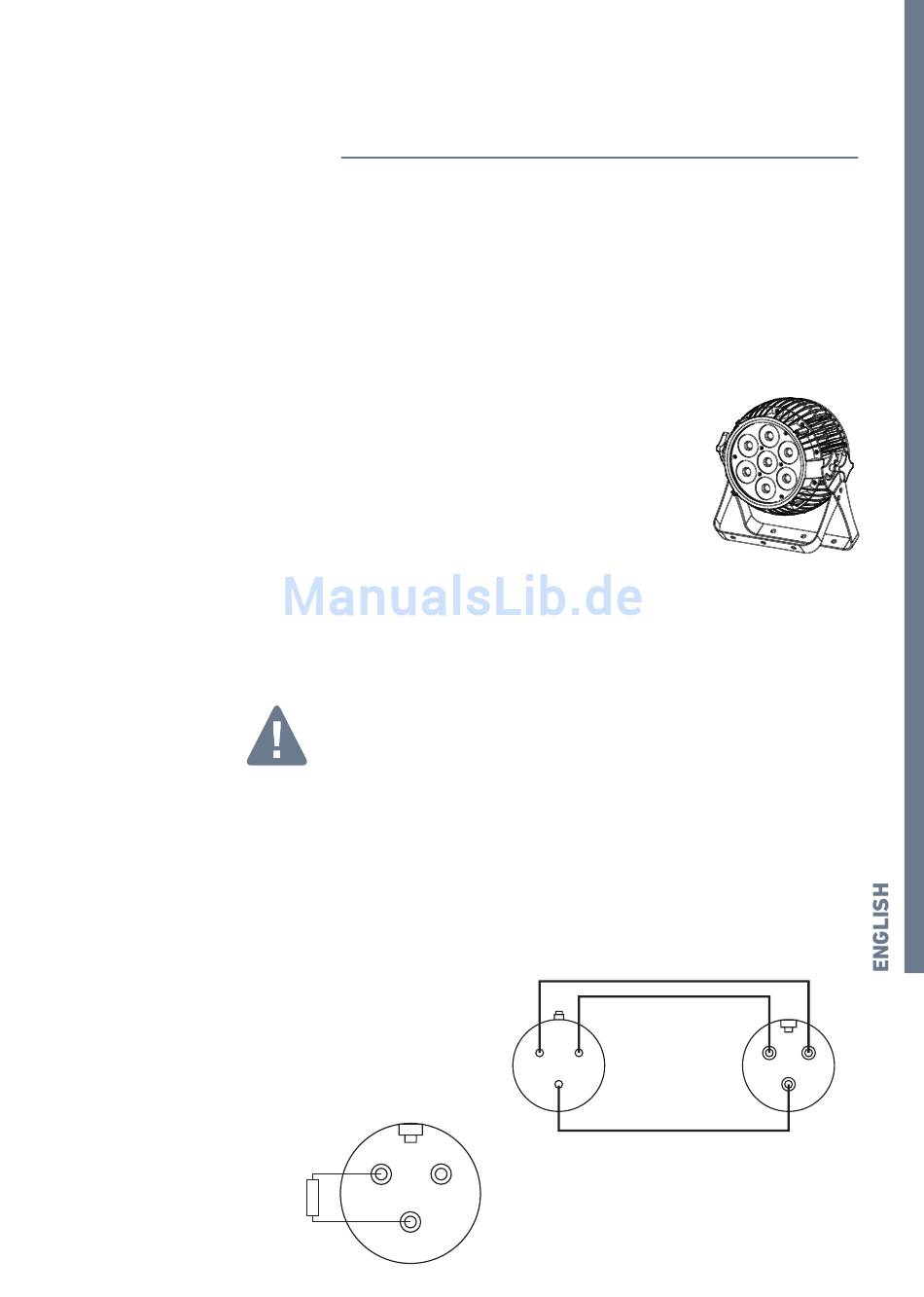

2.0 INSTALLATION
2.1
MOUNTING
HANGING: The fixture can be
mounted in a hanging position
using the supporting bracket.
The bracket should be secured
to the mounting truss or struc-
ture using a standard mount-
ing clamp. Please note that
when hanging the unit a safety
cable should also be used.
UPRIGHT:The fixture can
be mounted in an upright
or sitting position using the
supporting brackets.
2.2
BATTERY POSITIONING
The Lithium Battery can be used in any position
NOTE!
If the signal cable is over 60 m between the DMX512 controller
and fixture or beween two fixtures, then a DMX signal amplifier is
needed as well.
2.3
DMX-SIGNAL AND TERMINATION
OUT
2
R 120
3
IN
2 1
3
Termination reduces signal errors and avoids
1
signal transmission problems and interface. It
is always advisable to connect an DMX termi-
nal. Resistance 120 Ohm (1/4 W) between PIN 2
(DMX) and PIN 3 (DMX +) of the last fixture.
OUT
GND
SG -
2 1
3
SG +
