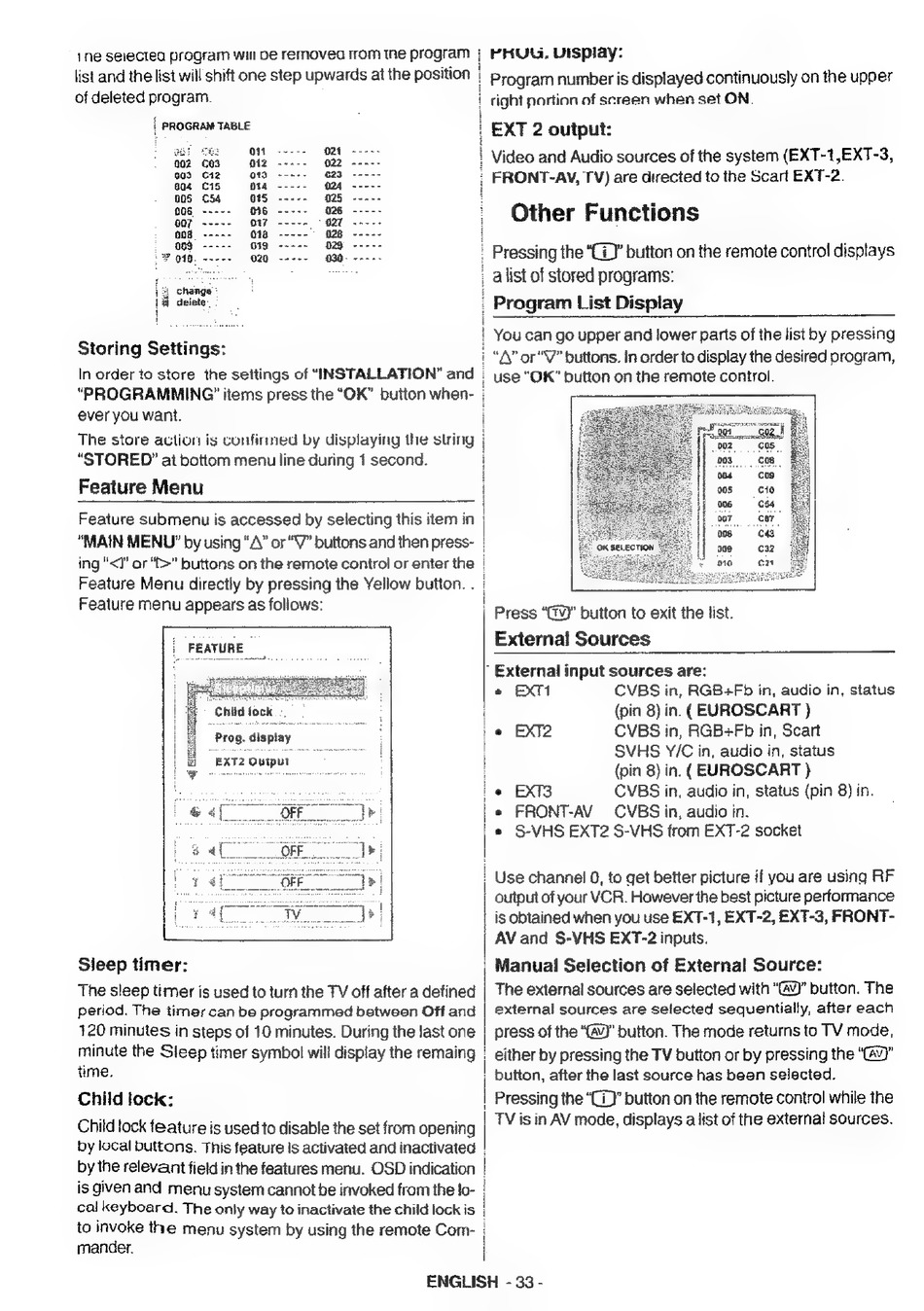

Seg PHOENIX Bedienungsanleitung Seite 34

ine seiecieg program will be removed rom Ine program |
list and the list will shift one step upwards at the position
of deleted program.
i
| PROGRAM TABLE
54
delete:
Storing Settings:
In order to store the settings of "INSTALLATION" and
"PROGRAMMING?" items press the "OK" button when- |
ever you want. i
The store action is confinned by displaying the slring |
"STORED" ai bottom menu line during 1 second.
Feature Menu
Feature submenu is accessed by selecting this item in
"MAIN MENU" by using "A" or "VY" buttons and then press-
ing "<T" or 't>" buttons on the remote control or enter the
Feature Menu directly by pressing the Yellow button. .
Feature menu appears as follows:
| FEATURE
iid fo
Prog. display
EXT2 Output
Sleep timer:
The sleep timer is used to turn the TV off after a defined
period, The timer can be programmed between Off and
120 minutes in steps of 10 minutes. During the last one
minute the Sleep timer symbol will display the remaing |
time.
Child lock:
Child lock feature is used to disable the set from opening |
by local buttons. This feature is activated and inactivated !
by the relevant field in the features menu. OSD indication |
is given and menu system cannot be invoked from the lo- i
cal keyboard. The only way to inactivate the child lock is
to invoke the menu system by using the remote Com- i
mander.
PHU. Uispiay:
Program number is displayed continuously on the upper
right portion of screen when set ON.
| EXT 2 output:
Video and Audio sources of the system (EXT-1,EXT-3,
FRONT-AY, TV) are directed to the Scart EXT-2.
Other Functions
Pressing the "(i)" button on the remote control displays
alist of stored programs:
| Program List Display
| You can go upper and lower parts of the list by pressing
: "A" or" buttons. in order to display the desired program,
| use "OK" button on the remote control.
Press "(i)" button to exit the list.
External Sources
' External input sources are:
e EXT CVBS in, RGB+Fb in, audio in, status
(pin 8) in. ( EUROSCART )
e EXT2 CVBS in, RGB+Fb in, Scart
SVHS YC in, audio in, status
(pin 8) in. (EUROSCART )
« EXT3 CVBS in, audio in, status (pin 8) in.
FRONT-AV CVBS in, audio in.
S-VHS EXT2 S-VHS from EXT-2 socket
Use channel 0, to get better picture if you are using RF
output of your VCR. However the best picture performance
is obtained when you use EXT-1, EXT-2, EXT-3, FRONT-
AV and S-VHS EXT-2 inputs.
Manual! Selection of External Source:
The external sources are selected with "@)" button. The
external sources are selected sequentially, after each
press of the "(A)" button. The mode returns to TV mode,
either by pressing the TV button or by pressing the "(av)"
button, after the last source has been selected.
Pressing the "(i)" button on the remote control while the
TVis in AV mode, displays a list of the external sources.
ENGLISH - 33 -
