Assembly

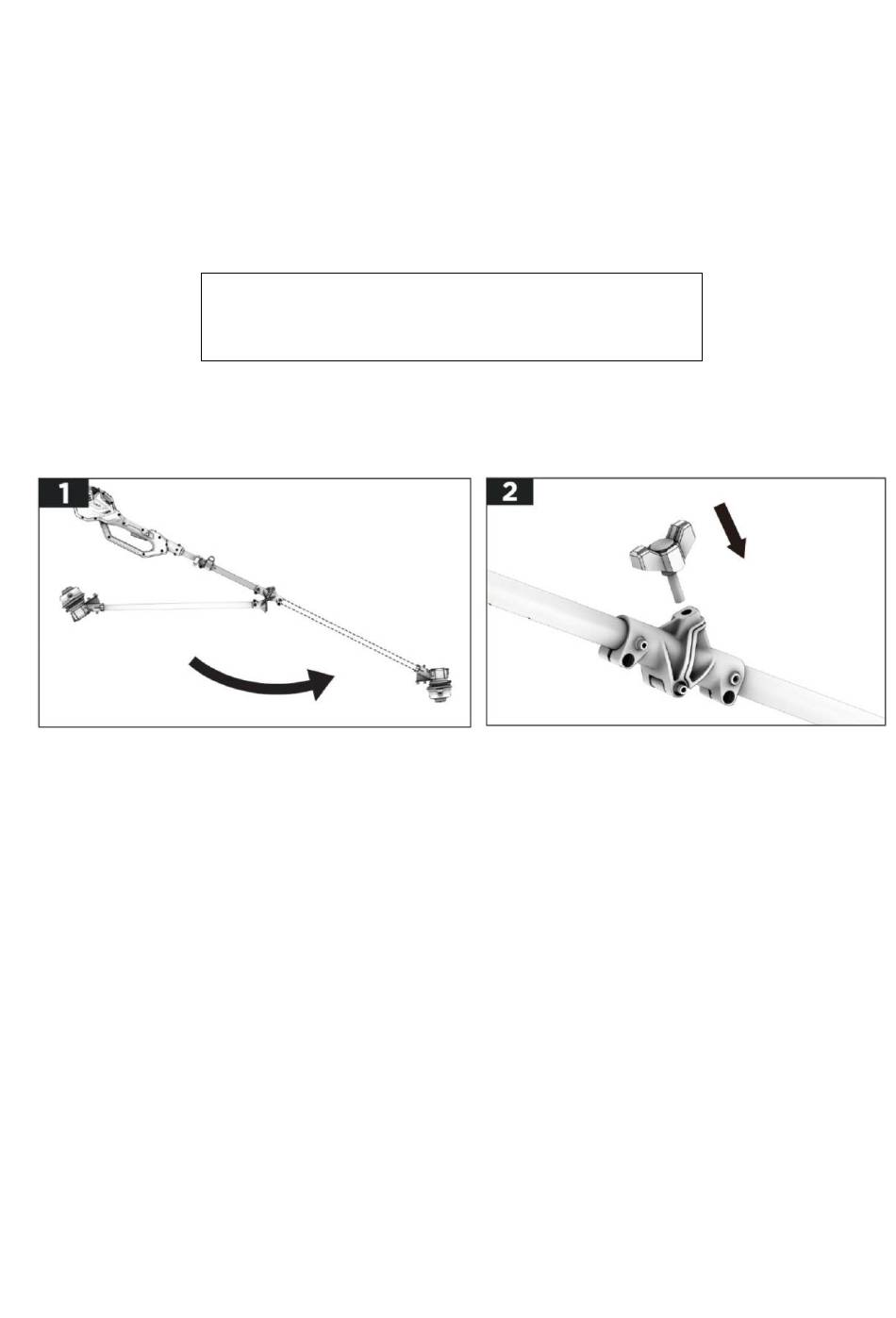

Connection of upper shaft with lower shaft
1. Unfold the lower shaft as shown below.
When unfolding, be careful not to damage the cable inside
2. Align the two shafts with each other so that you can connect both shafts together using the
wing screw. Tighten the thumbscrew firmly for a secure connection.
Assembly of the auxiliary handle
The auxiliary handle to be attached to the brush cutter consists of the upper and lower parts.
1. Attach the rubber sleev e to the lower part of auxiliary handle by aligning the hole on the
rubber sleeve with the cylinder located inside of the lower part of auxiliary handle as shown
Original user manual FUXTEC FX-E2MS_rev01
ATTENTION!
the shaft.
44
