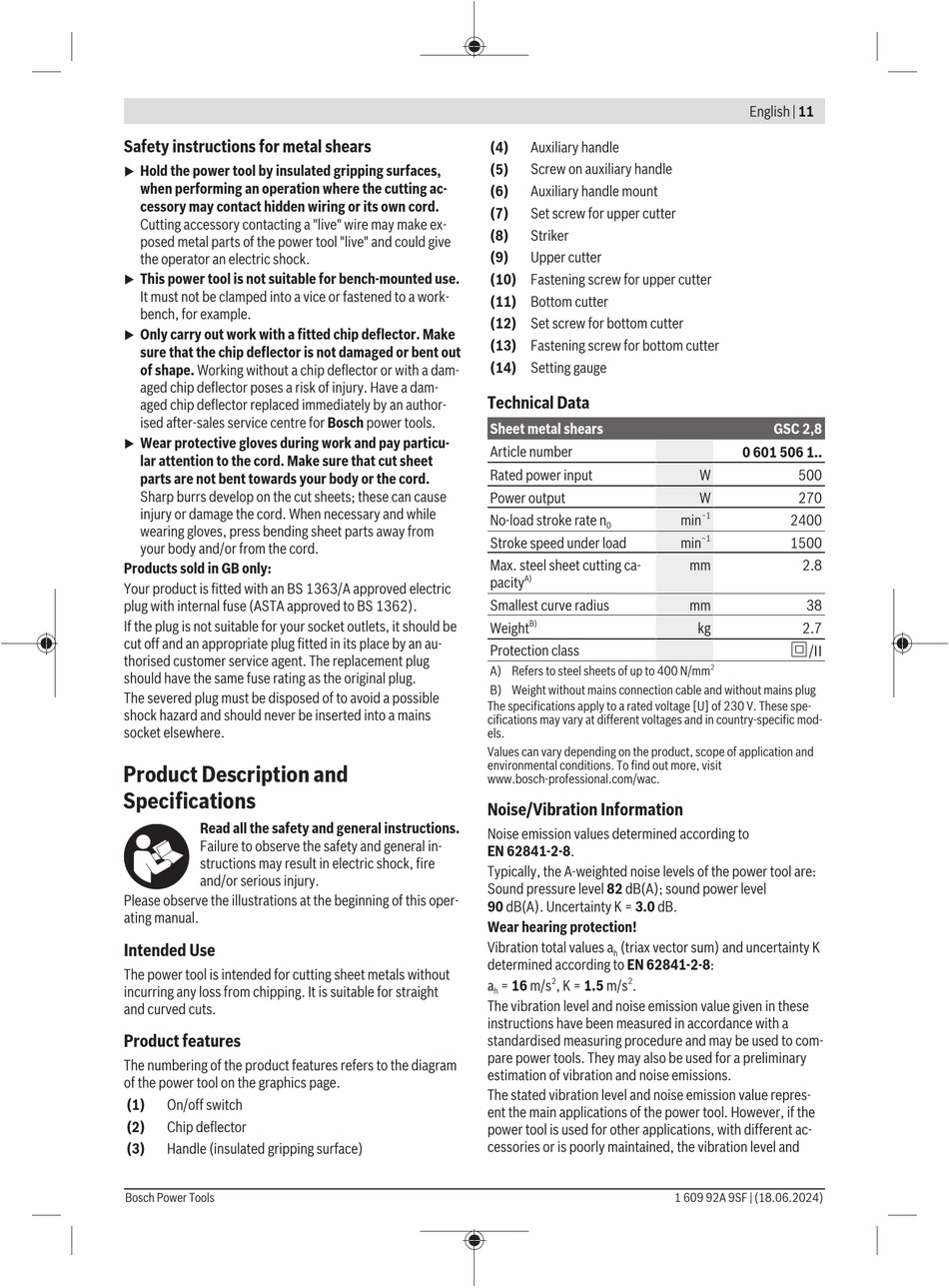

Bosch GSC 2,8 Professional Originalbetriebsanleitung Seite 11

Safety instructions for metal shears
Hold the power tool by insulated gripping surfaces,
u
when performing an operation where the cutting ac-
cessory may contact hidden wiring or its own cord.
Cutting accessory contacting a "live" wire may make ex-
posed metal parts of the power tool "live" and could give
the operator an electric shock.
This power tool is not suitable for bench-mounted use.
u
It must not be clamped into a vice or fastened to a work-
bench, for example.
Only carry out work with a fitted chip deflector. Make
u
sure that the chip deflector is not damaged or bent out
of shape. Working without a chip deflector or with a dam-
aged chip deflector poses a risk of injury. Have a dam-
aged chip deflector replaced immediately by an author-
ised after-sales service centre for Bosch power tools.
Wear protective gloves during work and pay particu-
u
lar attention to the cord. Make sure that cut sheet
parts are not bent towards your body or the cord.
Sharp burrs develop on the cut sheets; these can cause
injury or damage the cord. When necessary and while
wearing gloves, press bending sheet parts away from
your body and/or from the cord.
Products sold in GB only:
Your product is fitted with an BS 1363/A approved electric
plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an au-
thorised customer service agent. The replacement plug
should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains
socket elsewhere.
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.
Intended Use
The power tool is intended for cutting sheet metals without
incurring any loss from chipping. It is suitable for straight
and curved cuts.
Product features
The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1) On/off switch
(2) Chip deflector
(3) Handle (insulated gripping surface)
Bosch Power Tools
(4) Auxiliary handle
(5) Screw on auxiliary handle
(6) Auxiliary handle mount
(7) Set screw for upper cutter
(8) Striker
(9) Upper cutter
(10) Fastening screw for upper cutter
(11) Bottom cutter
(12) Set screw for bottom cutter
(13) Fastening screw for bottom cutter
(14) Setting gauge
Technical Data
Sheet metal shears
Article number
Rated power input
Power output
No-load stroke rate n
0
Stroke speed under load
Max. steel sheet cutting ca-
A)
pacity
Smallest curve radius
B)
Weight
Protection class
A) Refers to steel sheets of up to 400 N/mm
B) Weight without mains connection cable and without mains plug
The specifications apply to a rated voltage [U] of 230 V. These spe-
cifications may vary at different voltages and in country-specific mod-
els.
Values can vary depending on the product, scope of application and
environmental conditions. To find out more, visit
www.bosch-professional.com/wac.
Noise/Vibration Information
Noise emission values determined according to
EN 62841‑2‑8.
Typically, the A-weighted noise levels of the power tool are:
Sound pressure level 82 dB(A); sound power level
90 dB(A). Uncertainty K = 3.0 dB.
Wear hearing protection!
Vibration total values a (triax vector sum) and uncertainty K
h
determined according to EN 62841‑2‑8:
2 2
a = 16 m/s , K = 1.5 m/s .
h
The vibration level and noise emission value given in these
instructions have been measured in accordance with a
standardised measuring procedure and may be used to com-
pare power tools. They may also be used for a preliminary
estimation of vibration and noise emissions.
The stated vibration level and noise emission value repres-
ent the main applications of the power tool. However, if the
power tool is used for other applications, with different ac-
cessories or is poorly maintained, the vibration level and
English | 11
GSC 2,8
0 601 506 1..
W 500
W 270
−1
min 2400
−1
min 1500
mm 2.8
mm 38
kg 2.7
/Ⅱ
2
