MAIN PARAMETERS
Model
Machine Size
Machine Weight
Engraving Size
Laser Wavelength
Engraving Accuracy
Engraving Speed
Software Support System
Material
Electrical Requirement
Laser Power
File Format
Supported Software
Power Type
Software Support Languages
Working Environment
Engraving Method
Engraving Materials
Engraving Mode
03
TTS Pro
570*510*150 mm
300*300 mm
445±5 nm
30000mm / min
Mac, Windows
Aluminum Profile + Plastic Parts
(TTS-55PRO12V4ADC)(TTS-10PRO24V4ADC)
DB-5500 / DB-10000mW (Optional)
NC,BMP,JPG,PNG,GCODE,ETC
LaserGRBL (Windows), Lightburn (Common)
USA / EU Plug (Optional)
Chinese, English, Italian, French, German
RHTemperature 5-40℃, Humidity 20-60%RH
USB Connect PC, TF Card (APP, Webpage control)
Wood, Plastic, Paper, Leather, Sponge Paper, Alumina
Image carving / Text carving / Scanning carving /
Contour carving / Pixel carving
ASSEMBLY

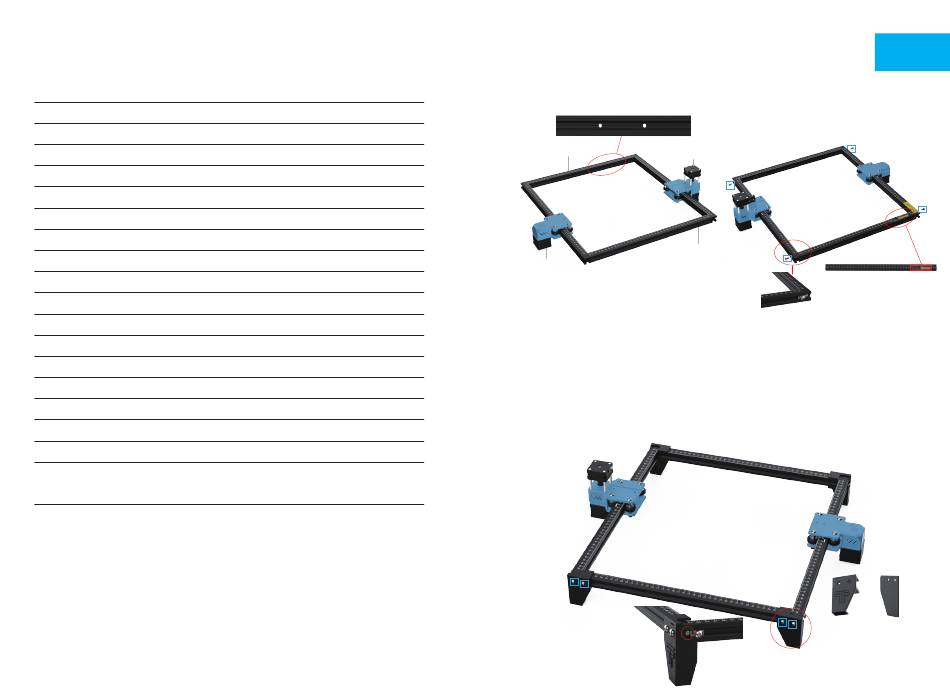

1. Install the frames
After assembly of frames
3 kg
Y-axis front profile
0.1 mm
Y-axis right frame
Note:
① The position of each frame cannot be changed.
② The countersunk head pore (the enlarged part)
of Y-axis front profile faces inside.
2. Install the foot pads
Screw M5*10 x 4
① Push the foot pads in. First tighten the screw M5*10 in blue area, and then
ighten the screw M5*20 in green area
Screw M5*20 x 4
② Finally, tighten the M5*20 screws in red area. Note: Please follow the steps above
to tighten the M5*20 screws.
M5*10
1.2 Install the frames
Screw M5*20 x 4
The countersunk head pore of Y-axis front
profile faces inside. And the
graduated side faces up. The profile scale is
used to measure the sizeof the engraved object.
Y-axis left frame
M5*20
Y-axis back profile
M5*20
1. First you need to install the frame while
you don't need to tighten the screws;
2. Make sure all profiles align.
M5*20
M5*20
EN
M5*20
M5*20
Y-axis front profile
TTS - 55 pro
TTS - 10 pro
Foot Pad X4
Foot Pad X4
M5*10
