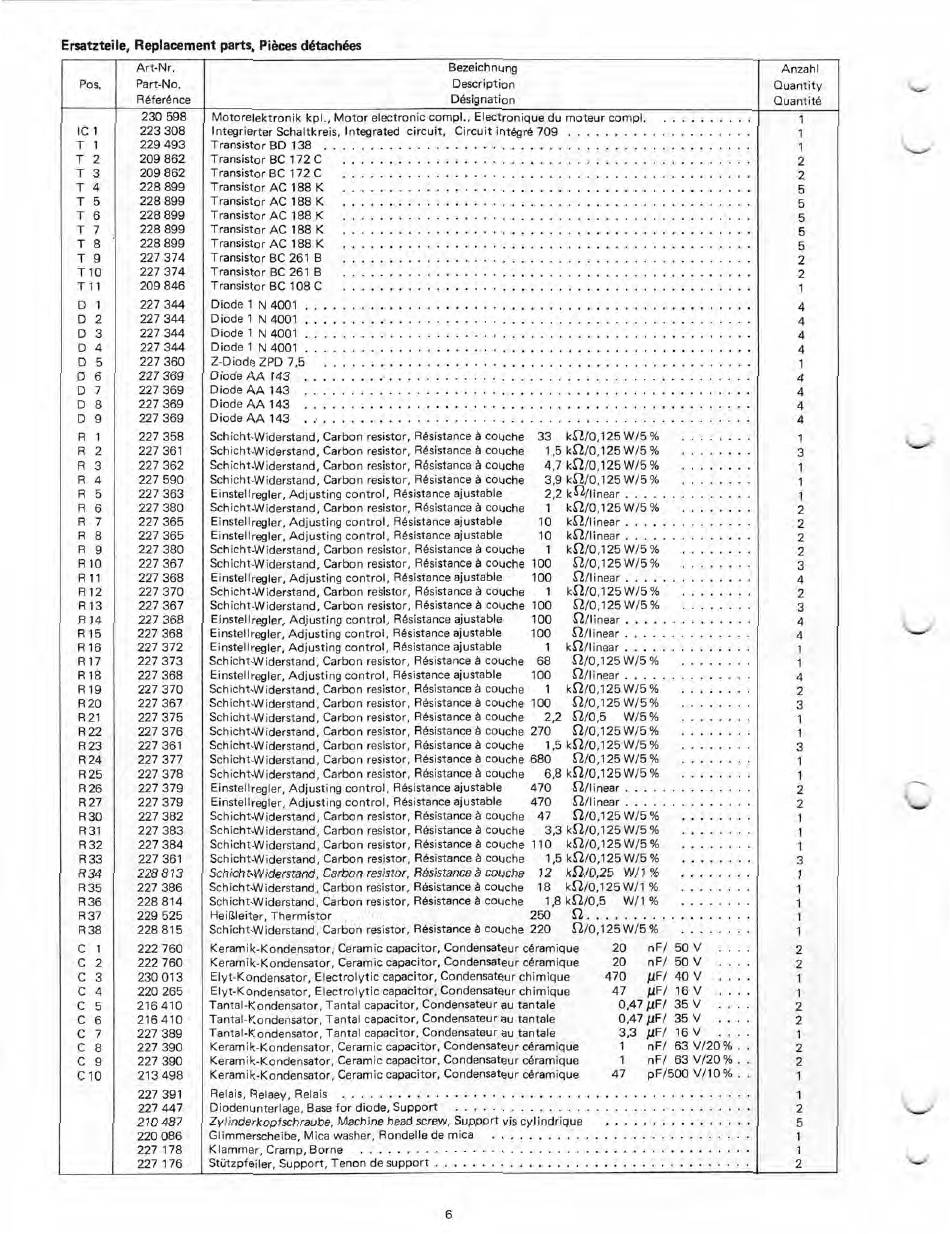

Ersatzteile, Replacement parts, Piöces dötach6es
Pos.
Art-Nr.
Part-No.
Röferönce
Bezeichnung
Description
Dösignation
Anzahl
Quantity
Quantitä
230 598
Motorelektronik kpl., Motor electronic compl.. Electronique du moteur compl.
IC 1
223 308
Integrierter Schaltkreis, Integrated circuit, Circuit intögrä 709
T 1
229 493
Transistor BD 138
T 2
209 862
Transistor BC 172 C
T 3
209 862
Transistor BC 172 C
T 4
228 899
Transistor AC 188 K
T 5
228 899
Transistor AC 188 K
T 6
228 899
Transistor AC 188 K
T 7
228 899
Transistor AC 188 K
T 8 *
228 899
Transistor AC 188 K
T 9
227 374
Transistor BC 261 B
T10
227 374
Transistor BC 261 B
T 11
209 846
Transistor BC 108 C
D 1
227 344
Diode 1 N 4001
D 2
227 344
Diode 1 N4001
D 3
227 344
Diode 1 N4001
D 4
227 344
Diode 1 N4001
D 5
227 360
Z-Diode ZPD 7,5
D 6
227 369
Diode AA 143
D 7
227 369
Diode AA 143
D 8
227 369
Diode AA 143
D 9
227 369
Diode AA 143
R 1
227 358
Schicht-Widerstand, Carbon resistor, Räsistance ä couche
33
I42/0,125 W/5 %
R 2
227 361
Schicht-Widerstand, Carbon resistor, Rösistance ä couche
1,5 kn/0,125 W/5 %
R 3
227 362
Schicht-Widerstand, Carbon resistor, Räsistance ä couche
4,7 142/0,125 W/5 %
R 4
227 590
Schicht-Widerstand, Carbon resistor, Räsistance ä couche
3,9 kS2/0,125 W/5 %
R 5
227 363
Einstellregler, Adjusting control, Rösistance ajustable
2,2 kn/linear
R 6
227 380
Schicht-Widerstand, Carbon resistor, Rösistance ä couche
1
kn/0,125 W/5 %
R 7
227 365
Einstellregler, Adjusting control, Räsistance ajustable
10
kn/I i neer
R 8
227 365
Einstellregler, Adjusting control, Räsistance ajustable
10
kn/linear
R 9
227 380
Schicht-Widerstand, Carbon resistor, Räsistance ä couche
1
kn/0,125 W/5 %
R 10
227 367
Schicht-Widerstand, Carbon resistor, Räsistance ä couche 100
S2/0,125 W/5 %
R 11
227 368
Einstellregler, Adjusting control, Räsistance ajustable
100
n/linear
R 12
227 370
Schicht-Widerstand, Carbon resistor, Räsistance ä couche
1
k2/0,125 W/5 %
R 13
227 367
Schicht-Widerstand, Carbon resistor, Räsistance ä couche 100
S-2/0,125 W/5 %
R 14
227 368
Einstellregler, Adjusting control, Räsistance ajustable
100
n/linear
R 15
227 368
Einstellregler, Adjusting control, Räsistance ajustable
100
2/linear
R 16
227 372
Einstellregler, Adjusting control, Rösistance ajustable
1
kn/linear
R17
227 373
Schicht-Widerstand, Carbon resistor, Räsistance ä couche 68
S-2/0,125 W/5 %
R 18
227 368
Einstellregler, Adjusting control, Resistance ajustable
100
S2/linear
R 19
227 370
Schicht-Widerstand, Carbon resistor, Räsistance ä couche
1
kn/0,125 W/5 %
R20
227 367
Schicht-Widerstand, Carbon resistor, Resistance ä couche 100
2/0,125 W/5 %
R21
227 375
Schicht-Widerstand, Carbon resistor, Rösistance ä couche
2,2 S-2/0,5
W/5%
R22
227 376
Schicht-Widerstand, Carbon resistor, Rösistance ä couche 270
/0,125W/5
S2
%
823
227 361
Schicht-Widerstand, Carbon resistor, Rösistance ä couche
1,5 kS2/0,125 W/5 %
R24
227 377
Schicht-Widerstand, Carbon resistor, Rösistance ä couche 680
S2/0,125 W/5 %
R25
227 378
Schicht -Widerstand, Carbon resistor, Räsistance ä couche
6,8 k
/0,125 W/5 %
R26
227 379
Einstellregler, Adjusting control, Räsistance ajustable
470
n/linear
R27
227 379
Einstellregler, Adjusting control, Räsistance ajustable
470
n/iinear
R30
227 382
Schicht-Widerstand, Carbon resistor, Rösistance ä couche
47
2/0,125W/5
S
%
R31
227 383
Schicht-Widerstand, Carbon resistor, Rösistance ä couche
3,3 kn/0,125 W/5 %
R 32
227 384
Schicht-Widerstand, Carbon resistor, Rösistance ä couche 110
kn/0,125 W/5 %
R 33
227 361
Schicht-Widerstand, Carbon resistor, Rösistance ä couche
1,5 k2/0,125 W/5 %
R34
228 813
Schicht-Widerstand, Carbon resistor, Räsistance ä couche
12
kn/0,25 W/1 %
835
227 386
Schicht-Widerstand, Carbon resistor, Rösistance ä couche
18
I42/0,125 W/1 %
R36
228 814
Schicht-Widerstand, Carbon resistor, Räsistance ä couche
1,8 kg2/0,5
W/1 %
R 37
229 525
Heißleiter, Thermistor
250
n
R38
228 815
Schicht-Widerstand, Carbon resistor, Räsistance ä couche 220
n/0,125
W/5 %
C 1
222 760
Keramik-Kondensator, Ceramic capacitor, Condensateur cäramique
20
nF/ 50 V
. . . .
C 2
222 760
Keramik-Kondensator, Ceramic capacitor, Condensateur cäramique
20
nF/ 50 V
. . . •
C 3
230 013
Elyt-Kondensator, Electrolytic capacitor, Condensateur chimique
470
IIF/ 40 V
. . . .
C 4
220 265
Elyt-Kondensator, Electrolytic capacitor, Condensateur chimique
47
biF/ 16 V
. . . .
C 5
216 410
Tantal-Kondensator, Tantal capacitor, Condensateur au tantale
0,47 i.iF/ 35 V
. . . .
C 6
216 410
Tantal-Kondensator, Tantal capacitor, Condensateur au tantale
0,47 µF/ 35 V
. . . .
C 7
227 389
Tantal-Kondensator, Tantal capacitor, Condensateur au tantale
3,3 µF/ 16 V
. . . .
C 8
227 390
Keramik-Kondensator, Ceramic capacitor, Condensateur cöramique
1
nF/ 63 V/20 % . .
C 9
227 390
Keramik-Kondensator, Ceramic capacitor, Condensateur cäramique
1
nF/ 63 V/20 % . .
C 10
213 498
Keramik-Kondensator, Ceramic capacitor, Condensateur cäramique
47
pF/500 V/10 % . .
227 391
Relais, Relaey, Relais
227 447
Diodenunterlage, Base for diode, Support
210 487
Zylinderkopfschraube, Machine head screw, Support vis cylindrique
220 086
Glimmerscheibe, Mica washer, Rondelle de mica
227 178
Klammer, Cramp, Borne
227 176
Stützpfeiler, Support, Tenon de support
6
