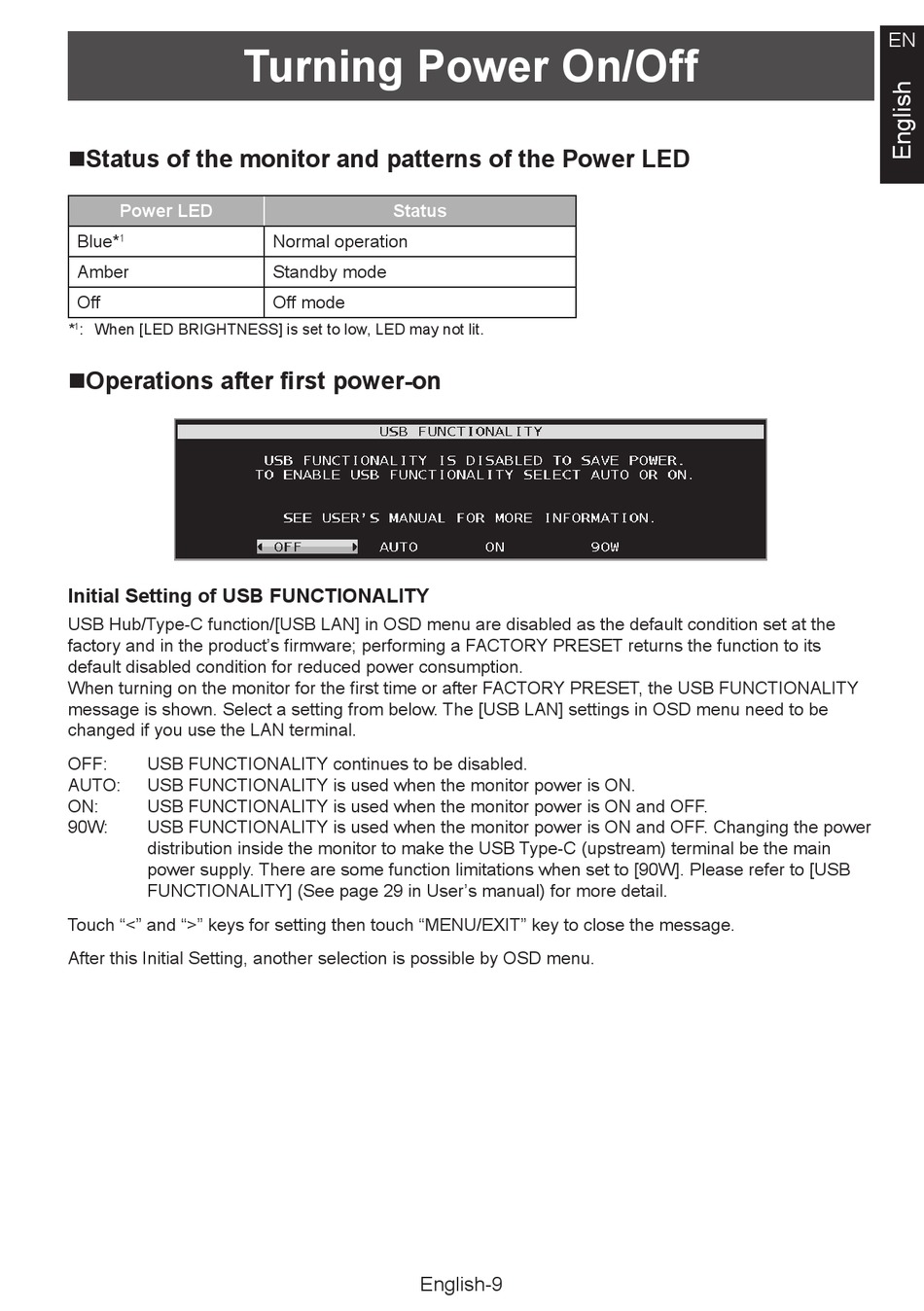

nStatus of the monitor and patterns of the Power LED
Power LED
Blue*
1
Amber
Off
*
: When [LED BRIGHTNESS] is set to low, LED may not lit.
1
nOperations after first power-on
Initial Setting of USB FUNCTIONALITY
USB Hub/Type-C function/[USB LAN] in OSD menu are disabled as the default condition set at the
factory and in the product's firmware; performing a FACTORY PRESET returns the function to its
default disabled condition for reduced power consumption.
When turning on the monitor for the first time or after FACTORY PRESET, the USB FUNCTIONALITY
message is shown. Select a setting from below. The [USB LAN] settings in OSD menu need to be
changed if you use the LAN terminal.
OFF:
USB FUNCTIONALITY continues to be disabled.
AUTO:
USB FUNCTIONALITY is used when the monitor power is ON.
ON:
USB FUNCTIONALITY is used when the monitor power is ON and OFF.
90W:
USB FUNCTIONALITY is used when the monitor power is ON and OFF. Changing the power
distribution inside the monitor to make the USB Type-C (upstream) terminal be the main
power supply. There are some function limitations when set to [90W]. Please refer to [USB
FUNCTIONALITY] (See page 29 in User's manual) for more detail.
Touch "<" and ">" keys for setting then touch "MENU/EXIT" key to close the message.
After this Initial Setting, another selection is possible by OSD menu.
Turning Power On/Off
Status
Normal operation
Standby mode
Off mode
English-9
EN
