• To attach a VESA-compliant mounting bracket, use M4 screws that are 6 mm to 10 mm longer than
the thickness of the mounting bracket.
6 - 10 mm
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the
weight of the monitor.
Install by the most suitable method for the material and the structure.
• Do not use an impact driver.
• Do not use any screw holes other than those for mounting brackets, located on the rear of the
monitor, for installation.
• When installing, check the tilt angle in the Product Specifications.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the
wall or mount.
nInstalling a security cable and prevent tipping
As a security measure, you can secure the monitor to a fixed
object with an optional security cable.
Please follow the security cable supplier's recommended
instructions to install.
A security cable (purchased separately) is designed as a
deterrent, it is not guaranteed to prevent the device from
being mishandled or stolen.
When using the monitor, fasten the monitor to a wall using
a cord that can support the weight of the monitor in order to
prevent the monitor from falling. Installing must be done by a
qualified technician, and please contact your supplier for more
information.

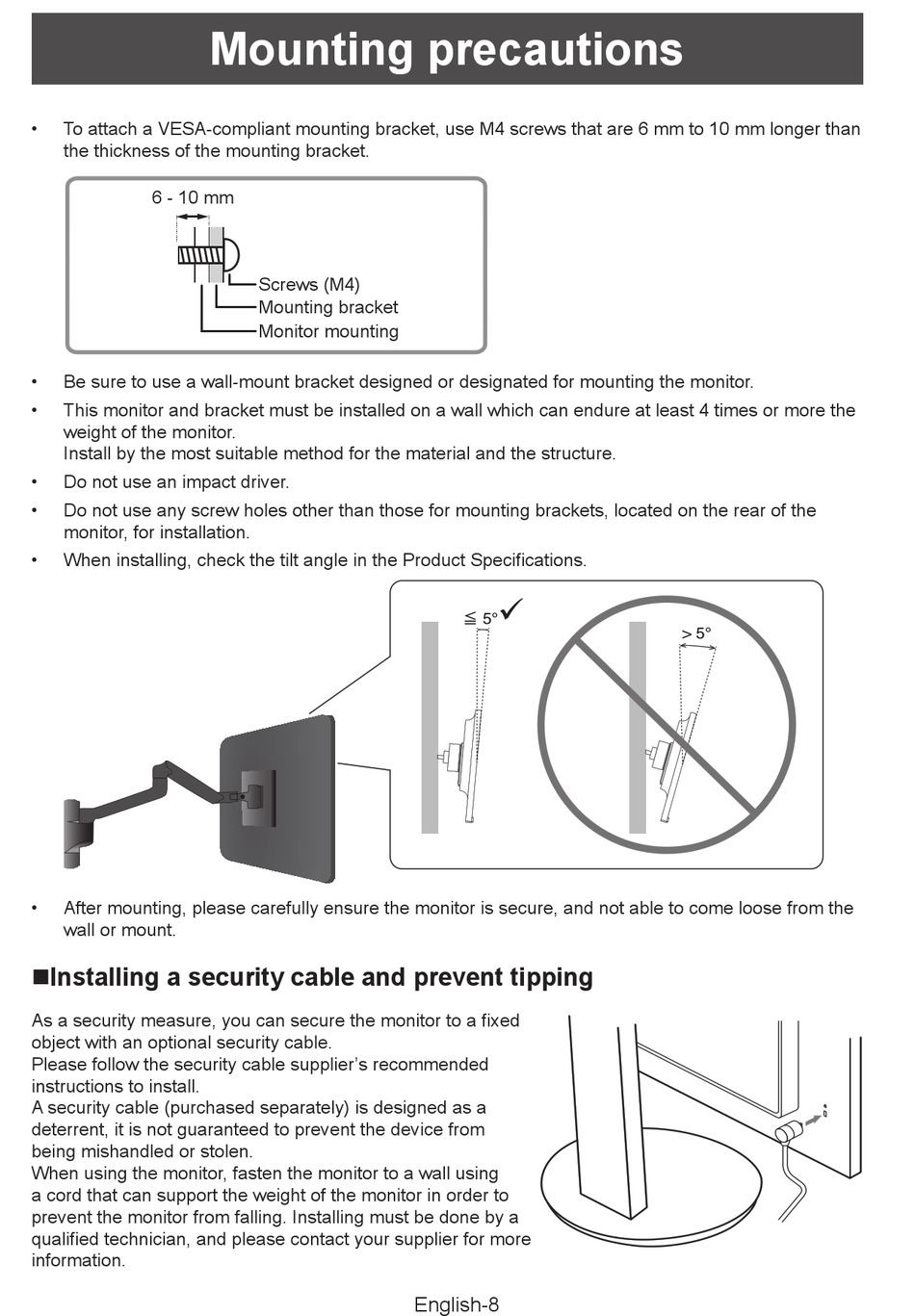

Mounting precautions
Screws (M4)
Mounting bracket
Monitor mounting
9
≦ 5°
English-8
> 5°
