IMPORTANT:
The seat cushion is adjustable.
1 is the front file; 2 is the rear
stop.
The bolt holes indicated by 2
can expand the riding space

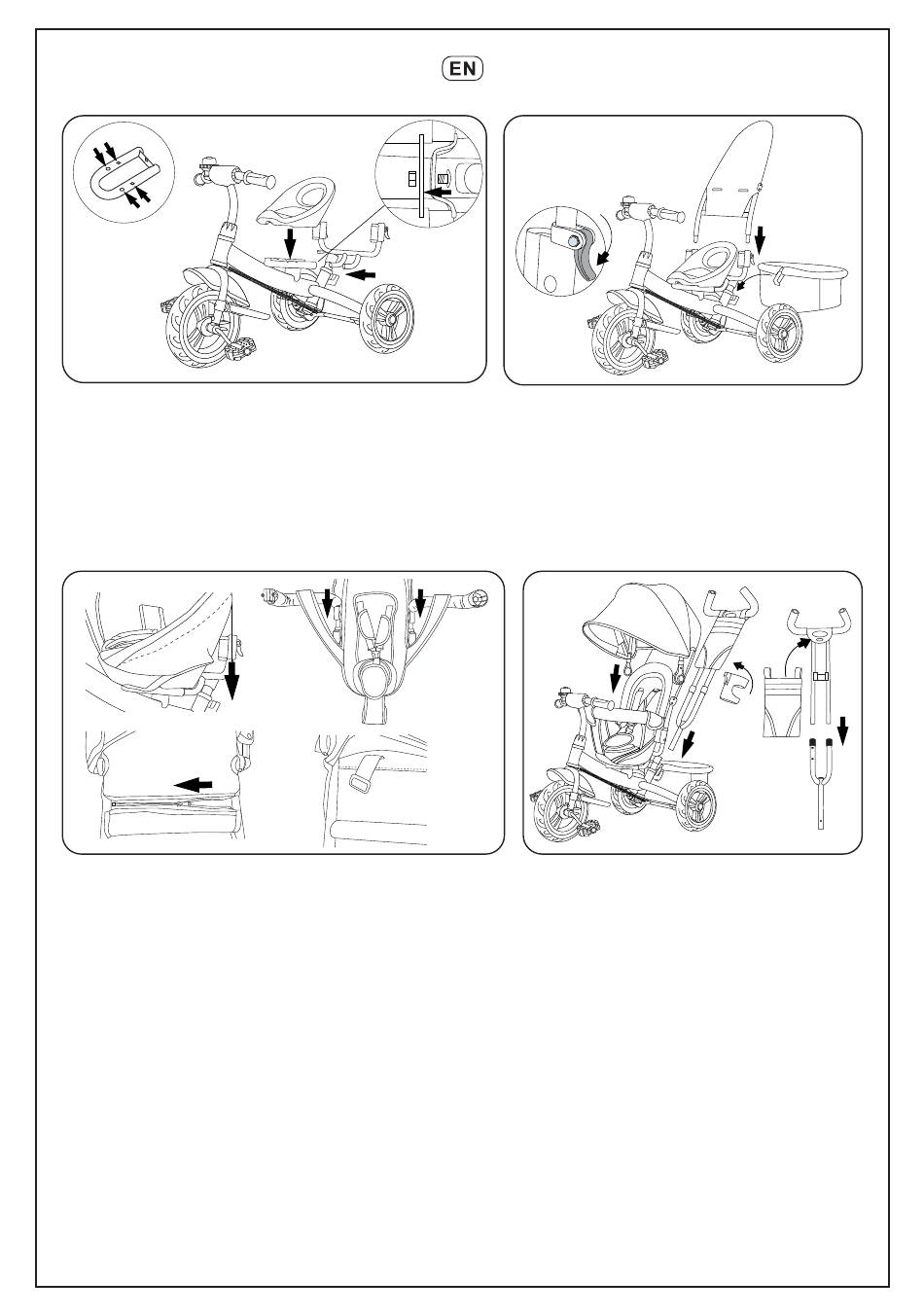

6.As shown in the picture, insert the guardrail bracket
into the seat tube and secure it with screws. Then,
pass the bolt through the bolt hole indicated by the
blue arrow to connect the saddle to the main frame,
use a bolt to connect the components in series, and
tighten it.
8.As shown in the figure:
Insert the seat cushion cover into the saddle, then
thread the left and right parts of the frame through the
side bars of the seat cushion cover, slide them down
along the grooves of the slot, and then thread them
through the front bar of the seat cushion cover, close the
left and right frame. Next, to install the shoulder straps,
first unzip the backrest zipper, then thread the shoulder
straps through the holes on the backrest and lock them,
finally zip up the zipper
7.As shown in the picture, insert the backrest
into the frame tube, then press down and lock
the backrest in place. Next, position the
basket properly and secure it with basket
fixing screws and nuts.
9. As shown in the picture, first align and
insert the canopy tube into the backrest
tube and lock it. Then, insert the upper
extension rod into the lower extension rod
and lock it, hang the fabric bag, and then
insert the extension rod into the connecting
tube at the rear of the seat until it locks with
a "click" sound, completing the locking
process. Finally, install the bottle holder.
