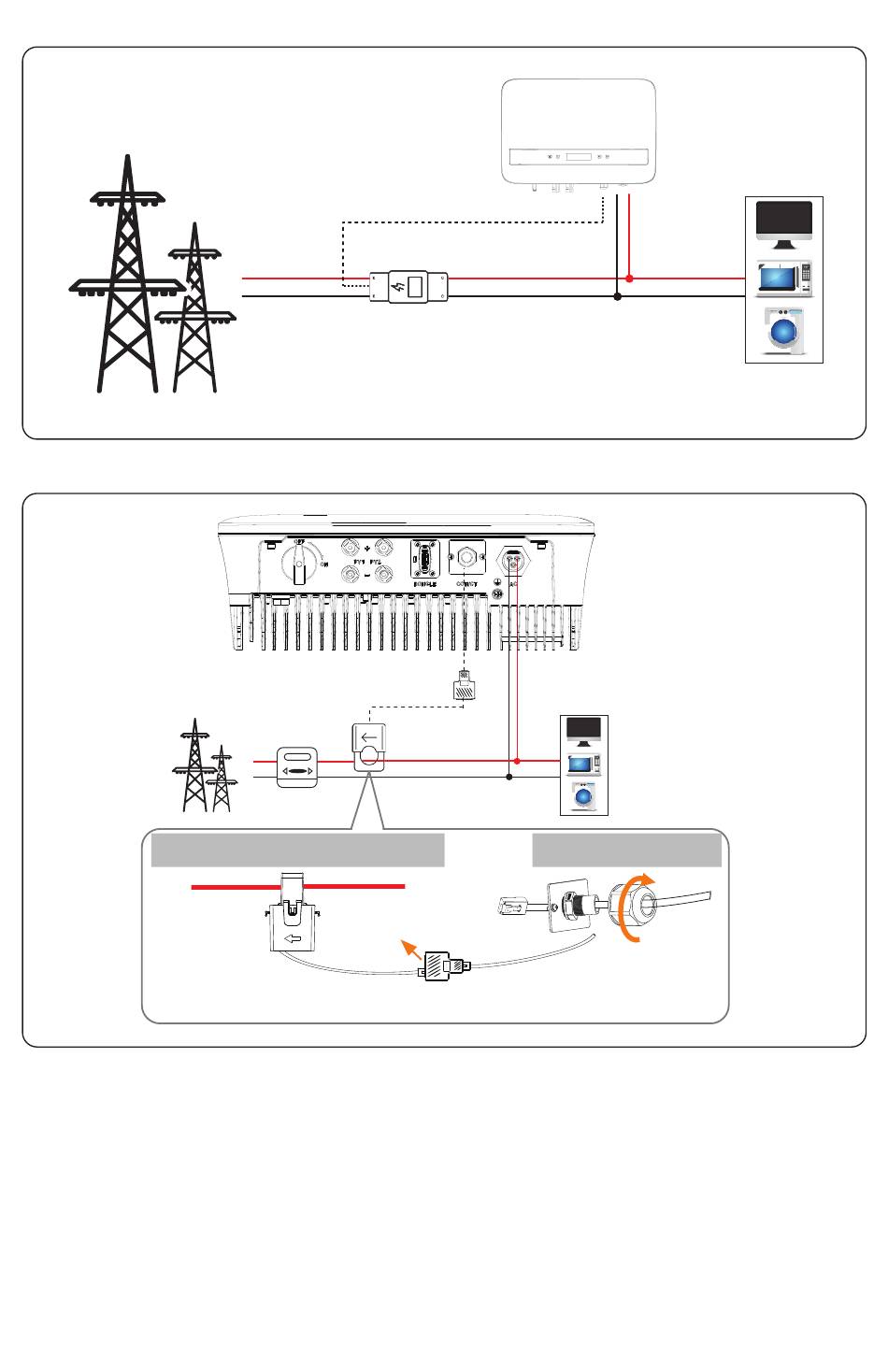

ii. For meter without CT
Electric grid
• For direct CT connection:
Important: The arrows direction on the
CT must point to the public grid side.
Public grid
electricity
L
N
Single Phase meter
bidirectional
*The meter used should be provided by SolaX.
RJ45 Coupler
Electrical grid
L
N
Home Electric
Meter
L line
Inverter
For further expansion
CT
Inverter
RJ45 Coupler
CT
COM/CT port on the
bottom of the inverter
RJ45 Coupler
Inverter
Load
Load
