Elpro 42
GB
Accessory
Motor power supply
24 Vdc max 50 mA
relay output or
courtesy light
PC Board
power supply

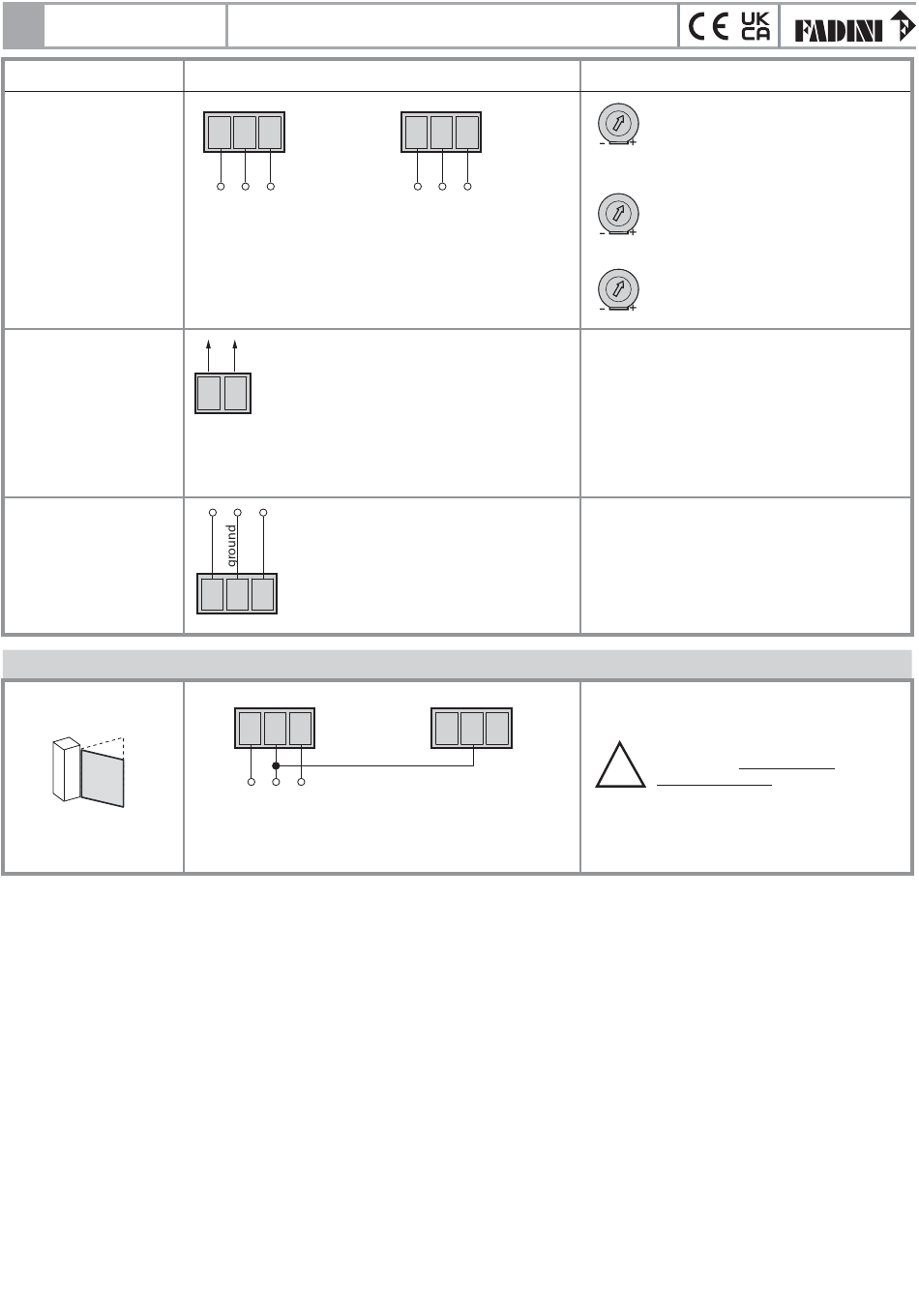

INSTALLATION ON A SINGLE GATE
Motor power supply
ELECTRONIC CONTROLLER FOR DARDO 424 AND FOX 724
GATE OPERATOR ON DOUBLE SWINGING GATES
Electrical connections
A1 B1 C1
Power supply
output
M1
M1 = Dardo/Fox on the 1st gate leaf to open and being also the
pedestrian one, if required
M2 = Dardo/Fox on the gate leaf delayed on opening.
32 33
Output voltage during operation and for a further 2 minutes
at the end of the operating cycle
Control board power supply
230 V - 50 Hz
N F
A1 B1 C1
Power supply
output
M1
M1 = this output is to be used for Dardo/Fox on a single mount
A2 B2 C2
Power supply
output
M2
A2 B2 C2
14
Dip-switcheses and LED indication
of the various functions
Speed trimmer: to adjust the maximum
gate speed.
Gate will adjust to the new setting after any
open/close/radio pulse
Force trimmer: to adjust the force
exerted by Dardo/Fox on the gate and in
proportion the resistance on contact with
an obstacle
Dwell trimmer:
from 1 s to 120 s
Bridge B1 with B2 and carry on
! programming excluding delay
mode on gate leafs.
