dirna Bergstrom bycool green line compact 1.4 Montageanweisungen Seite 13

COMPACT 1.4

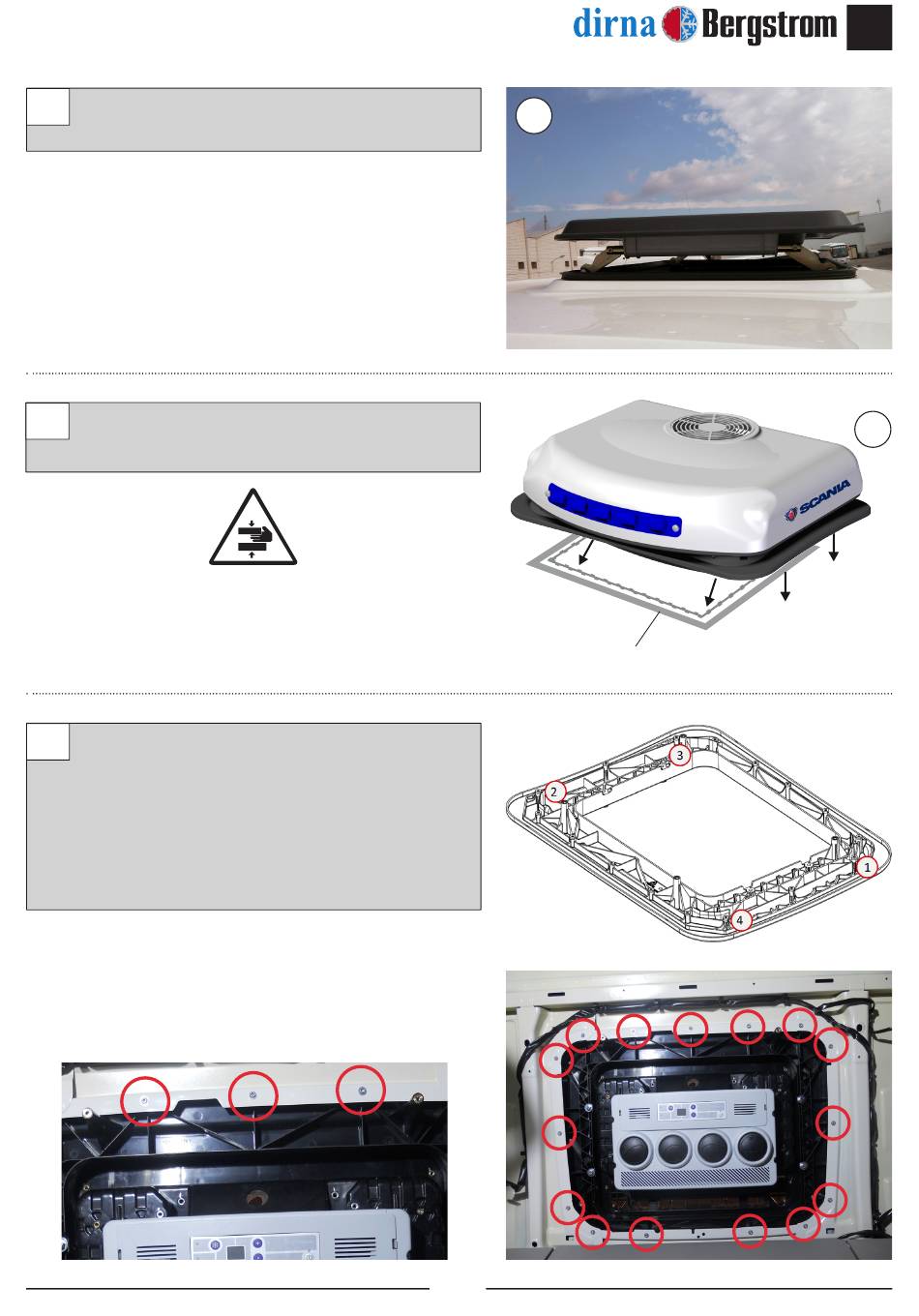

1 Take down the hatch and the attachment elements,
and hand them over to the customer.
2 CAB EXTERIOR:
Position the Compact in the opening for the hatch.
3
Fix the equipment with (16) WN5451 (60x20)
plastic screws with a tightening torque of 3,75 ±
10% Nm. maintaining the following order:
• First tighten the (4) corner screws (following the
numerical order of the attached figure) and then
the rest of the screws.
