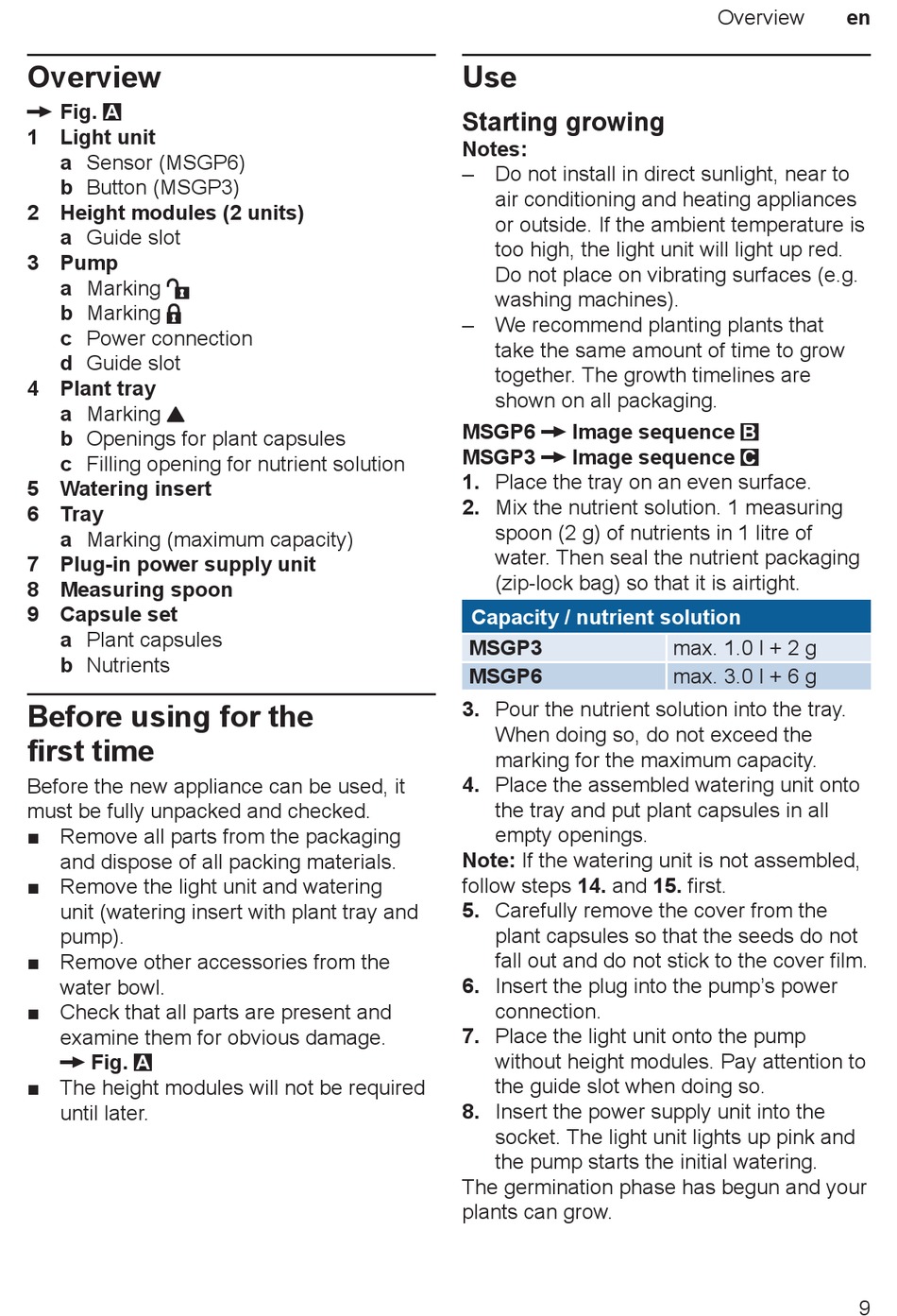

Bosch SmartGrow MSGP3 Gebrauchsanleitung Seite 9

Overview
X Fig. A
1 Light unit
a Sensor (MSGP6)
b Button (MSGP3)
2 Height modules (2 units)
a Guide slot
3 Pump
a Marking
b Marking
c Power connection
d Guide slot
4 Plant tray
a Marking
b Openings for plant capsules
c Filling opening for nutrient solution
5 Watering insert
6 Tray
a Marking (maximum capacity)
7 Plug-in power supply unit
8 Measuring spoon
9 Capsule set
a Plant capsules
b Nutrients
Before using for the
first time
Before the new appliance can be used, it
must be fully unpacked and checked.
■ Remove all parts from the packaging
and dispose of all packing materials.
■ Remove the light unit and watering
unit (watering insert with plant tray and
pump).
■ Remove other accessories from the
water bowl.
■ Check that all parts are present and
examine them for obvious damage.
X Fig. A
■ The height modules will not be required
until later.
Use
Starting growing
Notes:
– Do not install in direct sunlight, near to
air conditioning and heating appliances
or outside. If the ambient temperature is
too high, the light unit will light up red.
Do not place on vibrating surfaces (e.g.
washing machines).
– We recommend planting plants that
take the same amount of time to grow
together. The growth timelines are
shown on all packaging.
MSGP6 X Image sequence B
MSGP3 X Image sequence C
1. Place the tray on an even surface.
2. Mix the nutrient solution. 1 measuring
spoon (2 g) of nutrients in 1 litre of
water. Then seal the nutrient packaging
(zip-lock bag) so that it is airtight.
Capacity / nutrient solution
MSGP3
MSGP6
3. Pour the nutrient solution into the tray.
When doing so, do not exceed the
marking for the maximum capacity.
4. Place the assembled watering unit onto
the tray and put plant capsules in all
empty openings.
Note: If the watering unit is not assembled,
follow steps 14. and 15. first.
5. Carefully remove the cover from the
plant capsules so that the seeds do not
fall out and do not stick to the cover film.
6. Insert the plug into the pump's power
connection.
7. Place the light unit onto the pump
without height modules. Pay attention to
the guide slot when doing so.
8. Insert the power supply unit into the
socket. The light unit lights up pink and
the pump starts the initial watering.
The germination phase has begun and your
plants can grow.
Overview
max. 1.0 l + 2 g
max. 3.0 l + 6 g
en
9
