Check the correct position of the hood from front and side perspective.
Otherwise the appliance will not work properly.

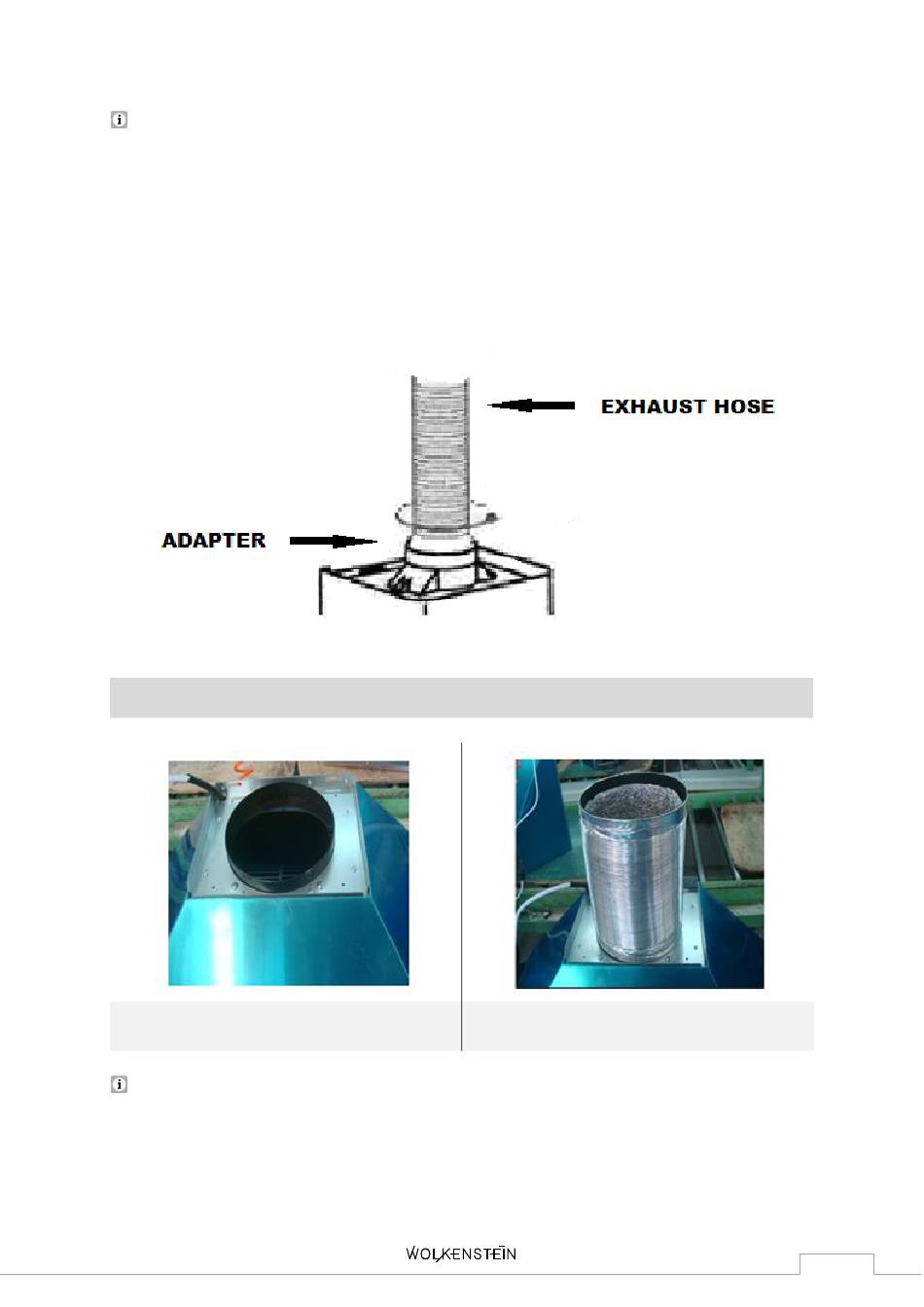

You can fix an exhaust hose with an adapter (depending on model if included in
delivery) on the appliance (s. fig. below). Fix the adapter with four screws above the
opening on the top of the appliance and insert the exhaust hose. The exhaust hose
must lead away from the appliance horizontally and must not been bent more than
120 . Otherwise the appliance does not work properly.
0
M
P
REASSEMBLED AIR OUTLET FOR
FIXING THE EXHAUST HOSE
You must install the crescent-shaped protective covers, when you operate
the appliance in extraction mode. The covers protect the motor from the
outdoor air and draught.
ODELS WITH PREASSEMBLED AIR OUTLET
.
:
V
IEW OF SEGMENT OF AN EXHAUST
.
HOSE
