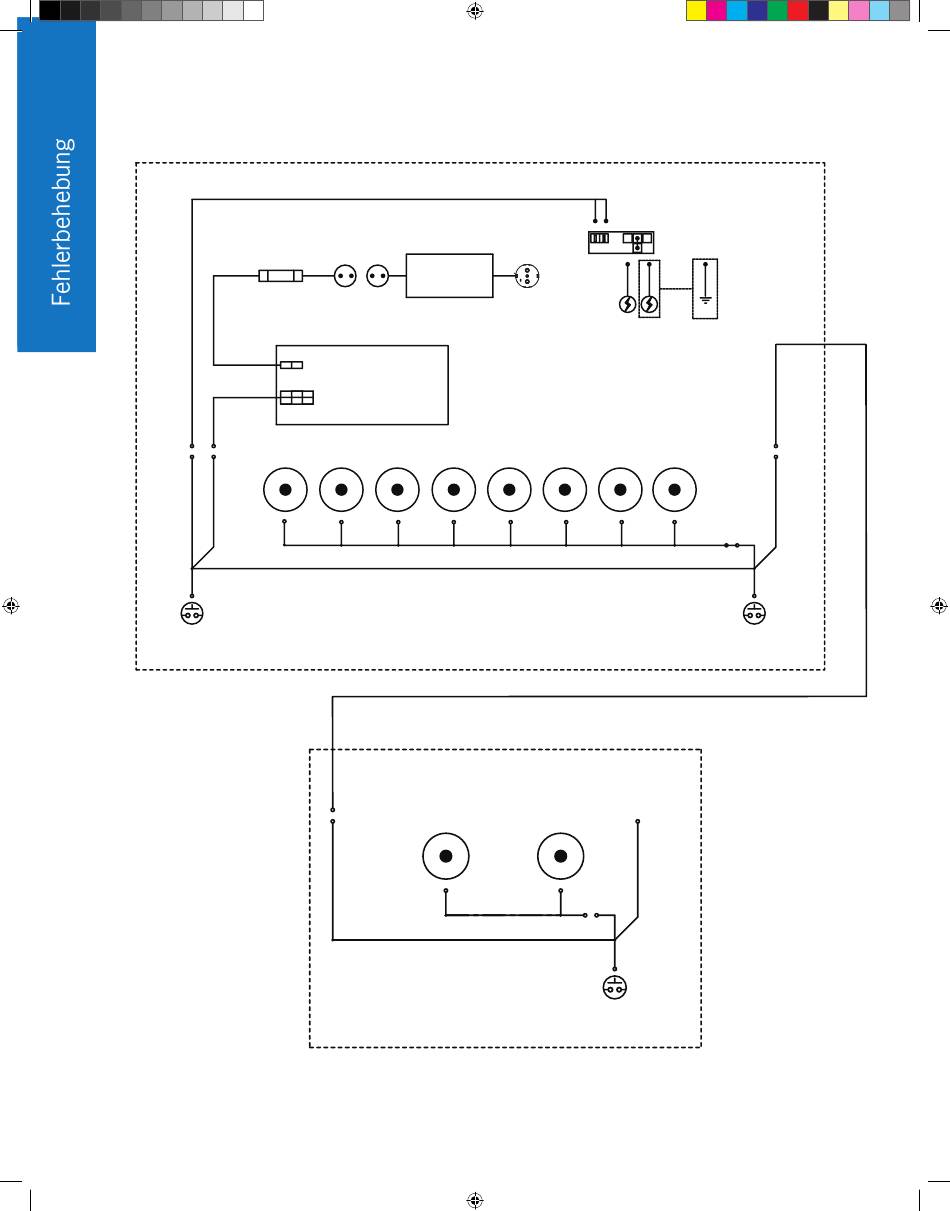

iagraMM
LektriSche
BLACK
YELLOW
SWITCH - IGNITION
- 12VDC, 0.3~0.8W, 22~66mA
26
| Fehlerbehebung
V
erBindungen
BIG44RB, BIG38RB, BIG32RB
FUSE
- 2 A
TRANSFORMER
- INPUT: 230v 50z
- OUTPUT: 12VAC ~ 2083mA, 25W
POWER
SWITCHES - KNOBS
BIG44RB x8, BIG38RB x6, BIG32RB x5
- 12VDC, 0.3~8W, 34~95mA
BIB18, BIB12, BIB10
BLACK
BIG44RB:
ELECTRODE
CONTROL BOX
- OUTPUT: 12VDC, 24W
KNOB LIGHT
KNOB LIGHT
BLACK
BIB18 x2, BIB12 x2, BIB10 x1
- 12VDC, 0.3~8W, 34~95mA
RED /
ROUGE /
ROJO
SWITCH - LIGHTS
- 12VDC, 0.3~0.8W, 22~66mA
IGNITER
- 12VAC/DC, 1.5W, 120mA
BIG32RB & BIG38RB:
GROUND
BLACK
RED /
SWITCH - LIGHTS
- 12VDC, 0.3~0.8W, 22~66mA
