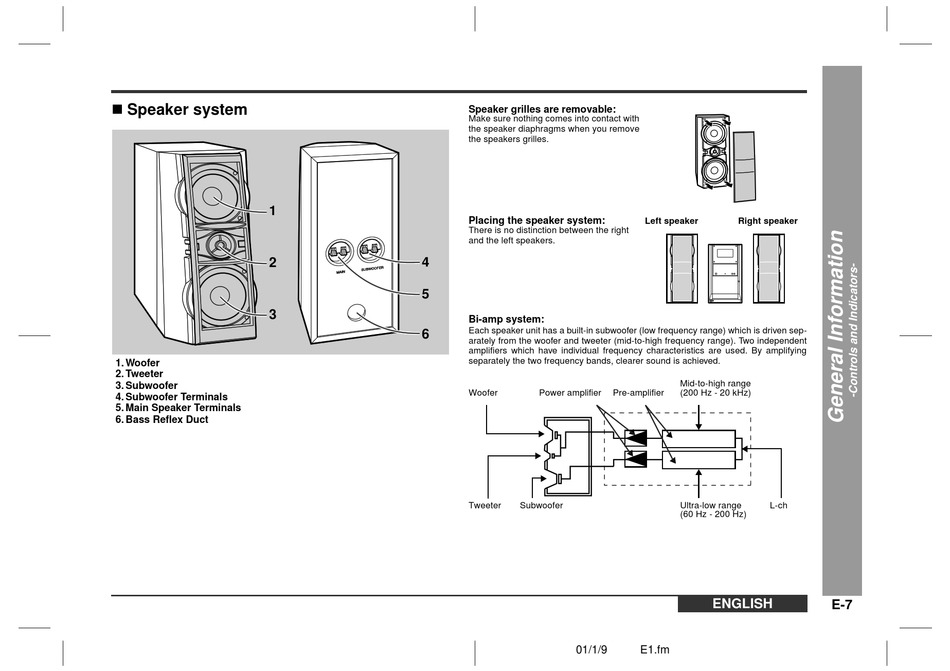

„ Speaker system
1
2
3
1. Woofer
2. Tweeter
3. Subwoofer
4. Subwoofer Terminals
5. Main Speaker Terminals
6. Bass Reflex Duct
Speaker grilles are removable:
Make sure nothing comes into contact with
the speaker diaphragms when you remove
the speakers grilles.
Placing the speaker system:
There is no distinction between the right
and the left speakers.
4
5
Bi-amp system:
Each speaker unit has a built-in subwoofer (low frequency range) which is driven sep-
6
arately from the woofer and tweeter (mid-to-high frequency range). Two independent
amplifiers which have individual frequency characteristics are used. By amplifying
separately the two frequency bands, clearer sound is achieved.
Woofer
Power amplifier
Tweeter
Subwoofer
01/1/9
Left speaker
Right speaker
Mid-to-high range
Pre-amplifier
(200 Hz - 20 kHz)
Ultra-low range
L-ch
(60 Hz - 200 Hz)
