FOR
A COMPLETE
DESCRIPTION
OF THE
OPERATION
OF THIS UNIT,
PLEASE REFER TO THE OPERATION (OWNER'S) MANUAL.

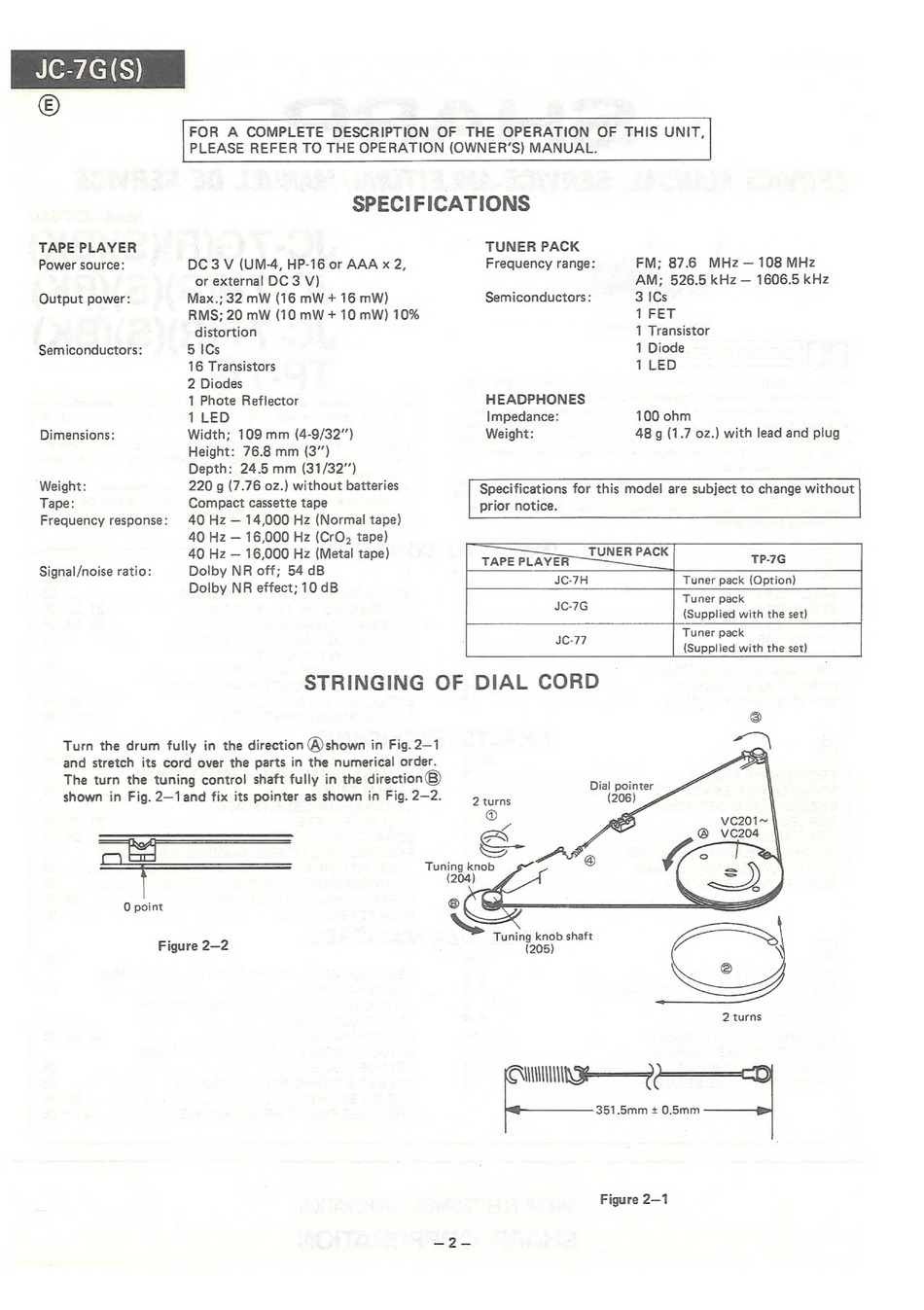

SPECIFICATIONS
TAPE PLAYER
TUNER PACK
Power source:
DC 3 V (UM-4, HP-16 or AAA x 2,
Frequency range:
FM; 87.6
MHz — 108 MHz
or external DC 3 V)
AM;
526.5 kHz — 1606.5 kHz
Output power:
Max.; 32 mW (16 mW + 16 mW)
Semiconductors:
3 ICs
RMS; 20 mW (10 mW + 10 mW) 10%
1 FET
distortion
1 Transistor
Semiconductors:
5 ICs
1 Diode
16 Transistors
1 LED
2 Diodes
1 Phote Reflector
HEADPHONES
1 LED
Impedance:
100 ohm
Dimensions:
Width; 109 mm (4-9/32")
Weight:
48 g (1.7 oz.) with lead and plug
Height: 76.8 mm (3")
Depth: 24.5 mm (31/32")
Weight:
220 g (7.76 oz.) without batteries
Specifications for this model are subject to change without
Tape:
Compact cassette tape
prior notice.
Frequency response:
40 Hz — 14,000 Hz (Normal tape)
40 Hz — 16,000 Hz (CrO, tape)
TUNER PACK
40 Hz — 16,000 Hz (Metal tape)
JC-7H
Signal /noise ratio:
Dolby NR off; 54 dB
Dolby NR effect; 10 dB
Tuner pack (Option)
Tuner pack
(Supplied with the set)
Tuner pack
(Supplied with the set)
STRINGING
OF DIAL CORD
Turn the drum
fully in the direction @) shown in Fig. 2—1
and stretch its cord over the parts in the numerical order.
The turn the tuning control shaft fully in the direction ®)
shown
in Fig. 2—1and fix its pointer as shown in Fig. 2—2.
y
ereaees
Tuning knob
a
SS
0 point
:
Tuning knob shaft
Figure 2—2
(205)
\
2 turns
INKS —$—$>
351.5mm + 0.5mm
Figure 2—1
