SolaX Power X3-EVC Installationsanleitung Seite 60

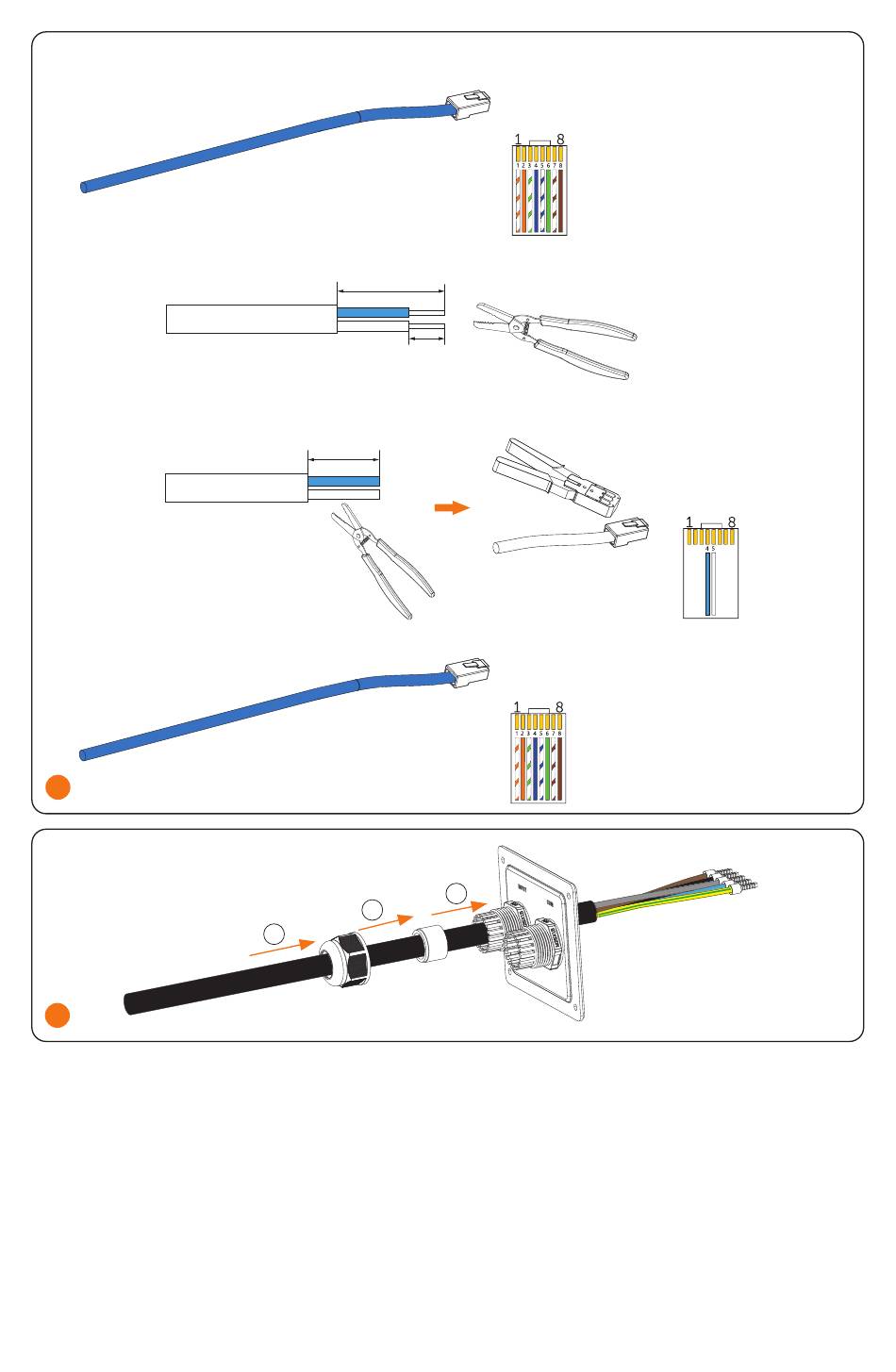

Choose and prepare communication cable as the actual application scenario required:
• Communication cable for connecting CT or Network
• Communication cable for connecting Meter
• Communication cable for connecting Inverter
Two-core cable (Recommended)
OR Eight-core cable (Should be used with the inverter connector)
7
8
56
10-15 mm
5 mm
15 mm
2
1
1) White with orange stripes
2) Orange
3) White with green stripes
4) Blue
5) White with blue stripes
6) Green
7) White with brown stripes
8) Brown
Insert to Pin 4 & 5
of the RJ45 terminal
1) White with orange stripes
2) Orange
3) White with green stripes
4) Blue
5) White with blue stripes
6) Green
7) White with brown stripes
8) Brown
3
45
