SolaX Power X1-EVC Installationsanleitung Seite 59

8
9
10
60-70 mm
12 mm
12 mm
75-80 mm

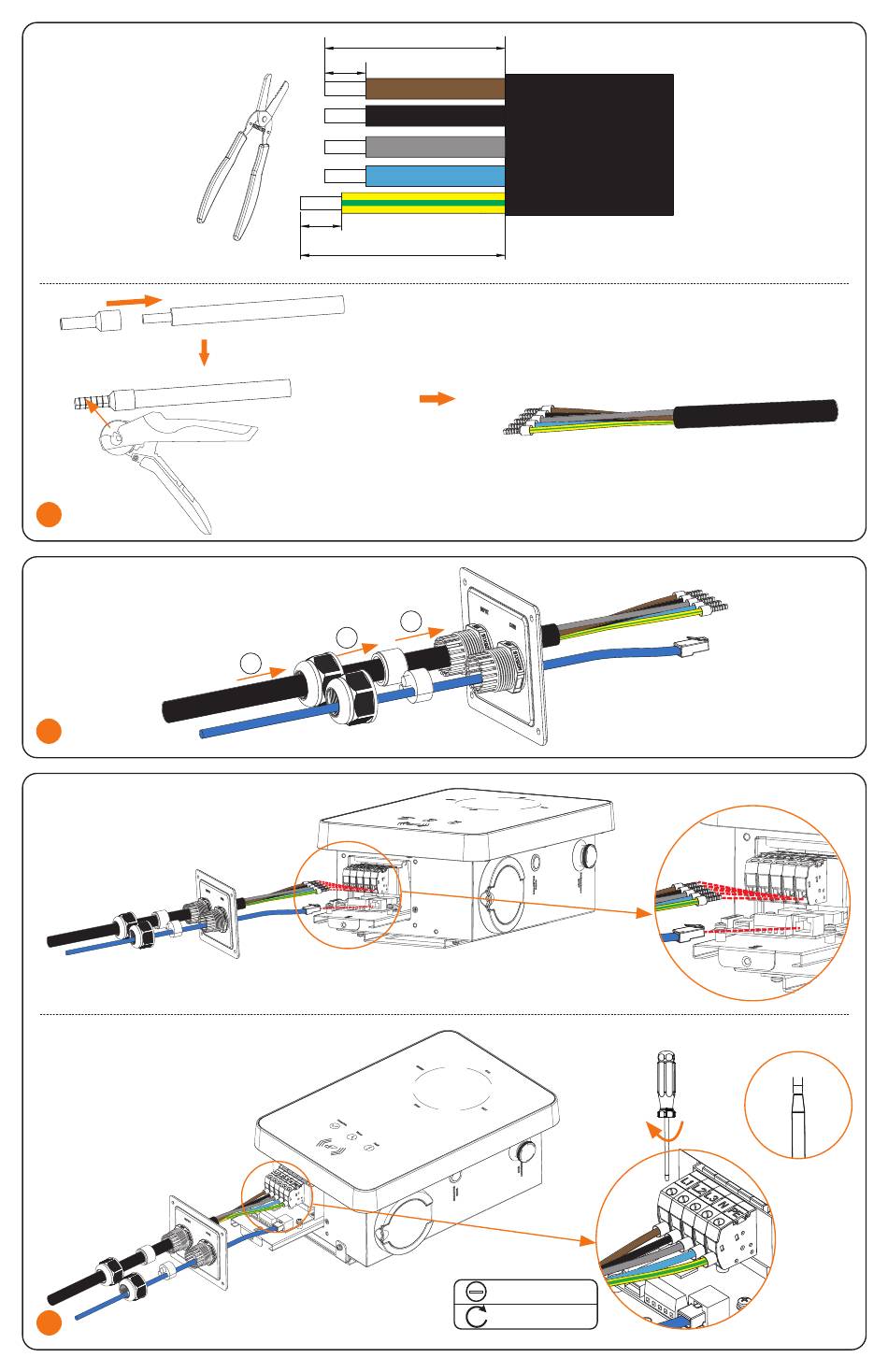

Crimp L1, L2, L3, N and
PE wire respectively
3
2
1
* Insert the crimped part of L1, L2, L3, N
and PE wire into corresponding holes
L1
L2
Insulation
L3
jacket
N
PE
Flat-head
1.5±0.1 N·m
<4 mm
