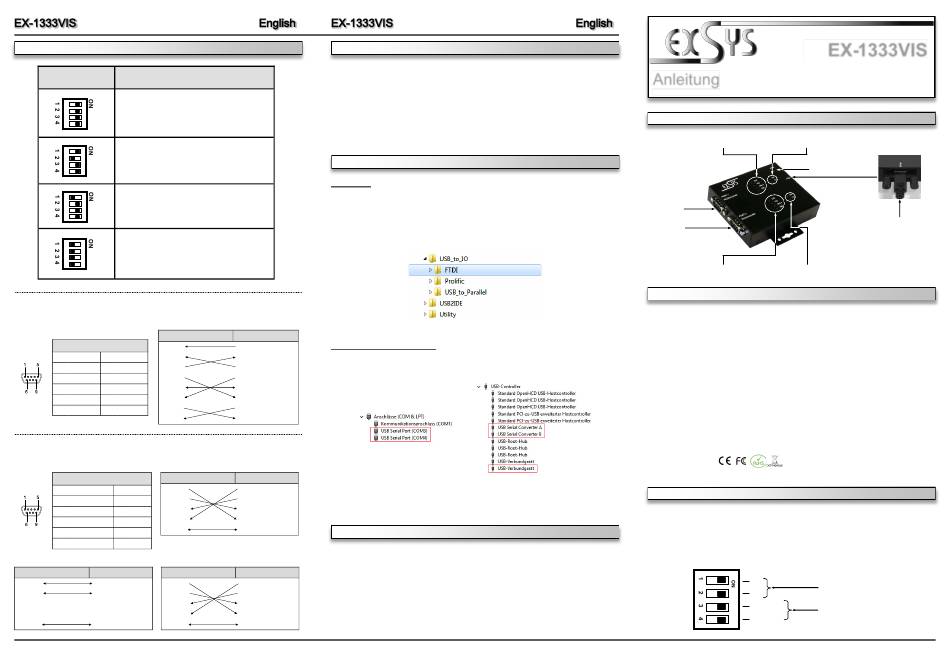

DIPP-SWITCH & CONNECTORS
Dipp-Switch
Description
RS-485 2-wire Mode
(Factory Setting)
RS-485 4-wire Mode
RS-422 Mode
RS-232 Mode
(Note: Pin 1 and Pin 2 must be set to
OFF to operate in the
RS-232 mode)
RS-232 Pin Assignments:
DB 9M
RS-232 Cable Wiring
DB9 (EX-1333VIS)
9 Pin Serial Connector
1 DCD
Pin
Signal
Pin
Signal
2 RXD
3 TXD
1
DCD
6
DSR
4 DTR
2
RXD
7
RTS
5 GND
3
TXD
8
CTS
6 DSR
4
DTR
9
RI
7 RTS
5
GND
8 CTS
RS-422/485 Pin Assignments:
DB 9M
RS-422 Cable Wiring
DB9 (EX-1333VIS)
9 Pin Serial Connector
1 TXD-
Pin
Signal
Pin Signal
2 TXD+
1
TXD- (DATA-)
6
NC
3 RXD+
2
TXD+ (DATA+)
7
NC
4 RXD-
3
RXD+
8
NC
5 GND
4
RXD-
9
NC
5
GND
RS-485 2-wire Cable Wiring
RS-485 4-wire Cable Wiring
DB9 (EX-1333VIS)
RS-485 (Device)
DB9 (EX-1333VIS)
1 TXD-
1 TXD-
1 TXD-
2 TXD+
2 TXD+
2 TXD+
3 RXD+
3 RXD+
3 RXD+
4 RXD-
4 RXD-
4 RXD-
5 GND
5 GND
5 GND
5
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1333VIS. Please refer your computers reference manual whenever in doubt.
1.
Connect the supplied USB 2.0 cable to the USB 2.0 B-Port of the EX-1333VIS.
2.
Now connect the other end (A-Connector) of the supplied USB 2.0 cable to the USB A-Port
on your PC.
3.
When you are ready you can start your PC and continue with the point „Driver Installation".
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver shoul not be installed automatically, please insert the Driver CD into your
CD-Rom drive (e.g. Drive D:) and open the folder „USB_to_IO/FTDI". Please select the folder
with your operating system and install the driver (see Picture). Follow the hardware assistant
and finish the installation. Important! Restart your PC in any case after installing the drivers.
RS-232 (Device)
CHECK INSTALLED DRIVER
1 DCD
2 RXD
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entries:
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
RS-422 (Device)
1 TXD-
If you see these or a similar information's the device is installed correctly.
2 TXD+
3 RXD+
4 RXD-
CLEANING
5 GND
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
RS-485 (Device)
1 TXD-
2 TXD+
3 RXD+
4 RXD-
5 GND
AUFBAU
BESCHREIBUNG & TECHNISCHE DATEN
Der EX-1333VIS ist ein Modul zur Umsetzung von USB 2.0 auf zwei RS-232/422/485 Schnitt-
stellen mit FIFO 16C550 Port für den Anschluss von High Speed seriellen RS-232/422/485
Peripherie Geräten (z.B. Modem, Plotter usw.). Der EX-1333VIS ist mit einer verschraubbaren
USB 2.0 B-Buchse zum Anschluss an den PC und zwei serielle 9 Pin Stecker ausgestattet. Das
USB Modul ist Hot Plug & Play fähig. Für die Einstellungen der I/O Adressen und Interrupts sind
keine Jumper und Einstellungen notwendig, da die Einstellungen automatisch vom System
BIOS und bei der Installation des Betriebssystems vorgenommen werden. Die verschiedenen
Übertragungsmodi können mittels den auf der Unterseite befindlichen Dipp-Schalter eingestellt
werden. Zusätzlich ist der EX-1333VIS mit einer 2,5KV optischen Isolation und mit einem 15KV
Überspannungsschutz ausgestattet.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
DIPP-SCHALTER & ANSCHLÜSSE
Es gibt zwei 4-Pin Dipp-Schalter auf der Unterseite der EX-1333VIS. Jeder Dipp-Schalter ist für
einen seriellen Port zuständig. Pin 1 und Pin 2 (markiert mit M1 und M0) haben die Funktion
zwischen den drei Modis RS-232, RS-422 und RS-485 umzuschalten. Pin 3 und Pin 4 (markiert
mit TERM ON) haben die Funktion die Abschlusswiederstände für die RS-422/485 Modis ein
oder auszuschalten.
6
EX-1333VIS
Anleitung
Vers. 1.0 / 04.04.23
Mode LED für Port 1
TX/RX LED für Port 1
Betriebs LED
Port 1
Port 2
Mode LED für Port 2
TX/RX LED für Port 2
USB 1.1, 2.0 & 3.2
Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / MAC
2x 9 Pin Stecker Seriell RS-232/422/485, 1x USB 2.0 B-Buchse
EX-1333VIS, USB 2.0 Kabel (verschraubbar), Treiber CD, Anleitung
M1
RS-232/422/485 Mode Schalter
M0
TERM ON
Schalter für Abschlusswiederstände
TERM ON
1
USB B-Buchse
(verschraubbar)
