Spare parts Ventilator components that can be ordered as spare parts are marked with position
numbers. When ordering spare parts supply the ventilator type and the production order
number (PO); both can be read on the information
EXHAUSTO reserves the right to introduce changes to these guidelines without prior
notice.
1. F-impeller
2. Motor plate
3. Axle extender
4. Frequency converters (for BESF160-2-1FC, BESF180-4-1FC, BESF200-4-
1FC, BESF225-4-1FC, BESF250-4-1FC, BESF280-4-3FC)
5. Covering
6. Condenser
(for BESF146-4-1, BESF160-4-1, BESF180-4-1, BESF200-4-1, BESF225-4-1,
BESF250-4-1)
7. Motor
8. Ball bearings, N-side
9. Ball bearings, D-side
10. Service door
11. Locking screws
12. 2 x mounting rail with vibration damper
plate..
01
04
02
03
10
11
12
Spare parts
13/60
GB - BESF – Product information
05
06
07
08
09

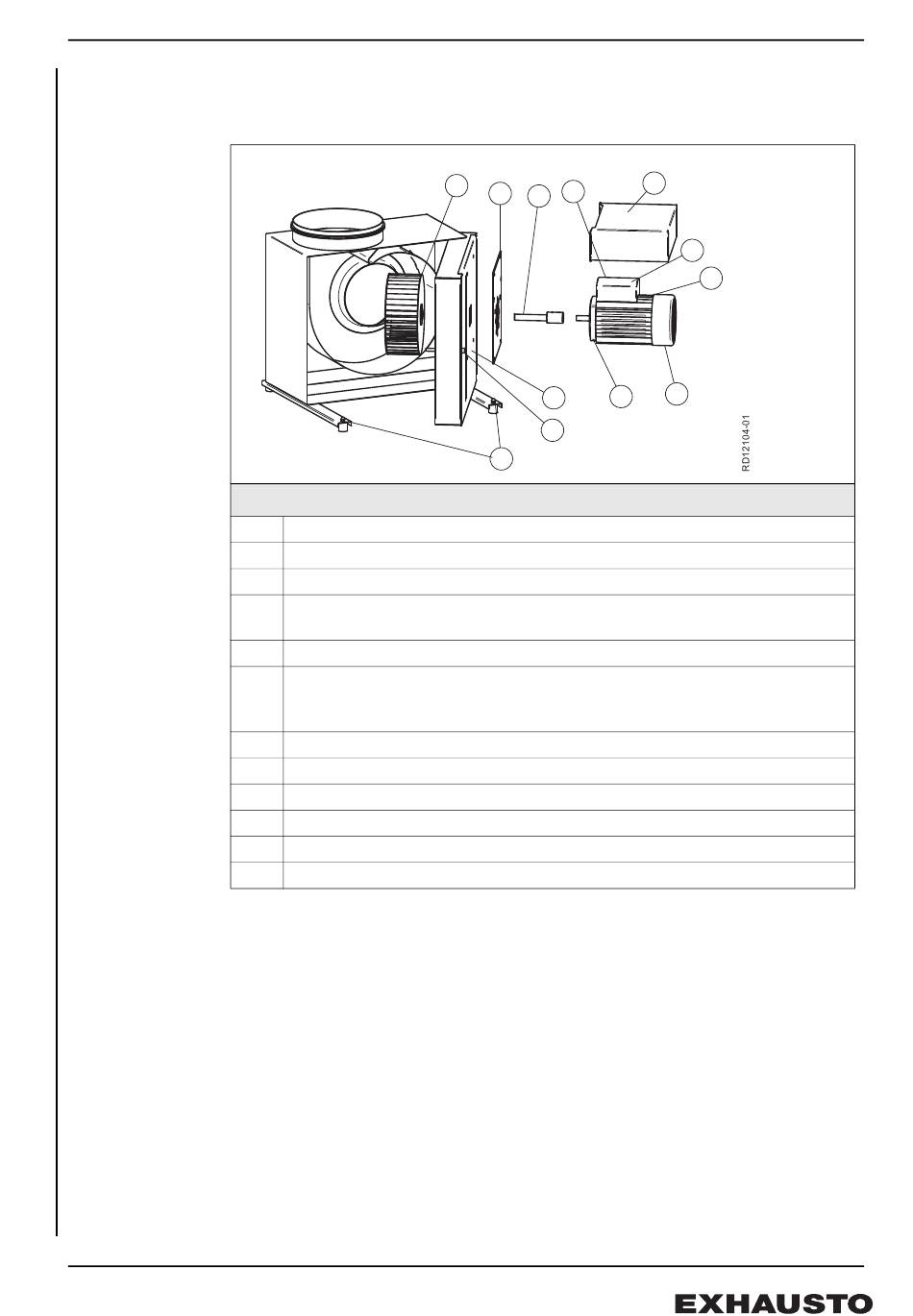

Fig. 17
