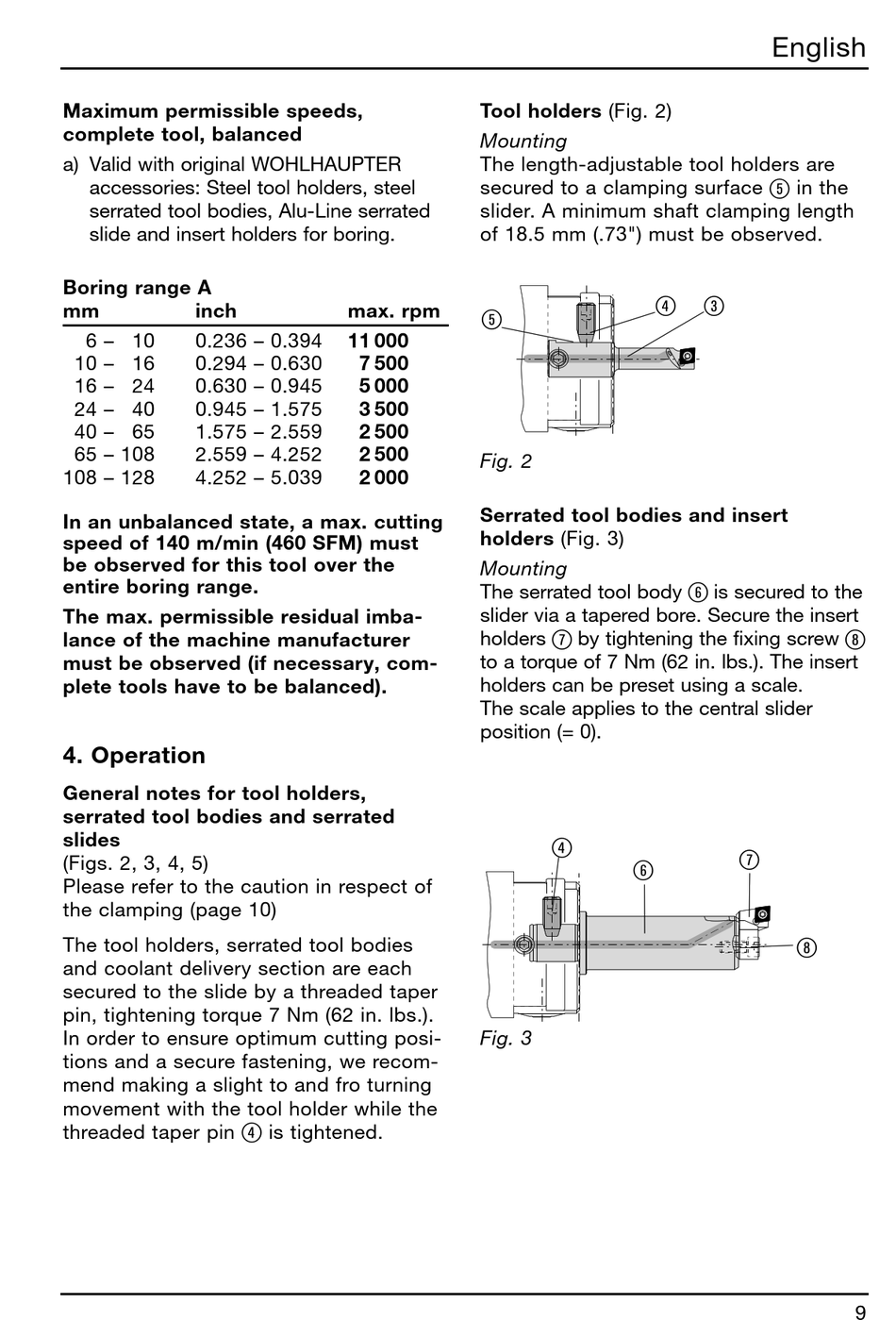

Operation - Wohlhaupter PRIMEBORE 450 Bedienungsanleitung

Maximum permissible speeds,
complete tool, balanced
a) Valid with original WOHLHAUPTER
accessories: Steel tool holders, steel
serrated tool bodies, Alu-Line serrated
slide and insert holders for boring.
Boring range A
mm inch
006 – 010 0.236 – 0.394
010 – 016 0.294 – 0.630
016 – 024 0.630 – 0.945
024 – 040 0.945 – 1.575
040 – 065 1.575 – 2.559
065 – 108 2.559 – 4.252
108 – 128 4.252 – 5.039
In an unbalanced state, a max. cutting
speed of 140 m/min (460 SFM) must
be observed for this tool over the
entire boring range.
The max. permissible residual imba-
lance of the machine manufacturer
must be observed (if necessary, com-
plete tools have to be balanced).

4. Operation

General notes for tool holders,
serrated tool bodies and serrated
slides
(Figs. 2, 3, 4, 5)
Please refer to the caution in respect of
the clamping (page 10)
The tool holders, serrated tool bodies
and coolant delivery section are each
secured to the slide by a threaded taper
pin, tightening torque 7 Nm (62 in. lbs.).
In order to ensure optimum cutting posi-
tions and a secure fastening, we recom-
mend making a slight to and fro turning
movement with the tool holder while the
threaded taper pin
max. rpm
11 000
07 500
05 000
03 500
02 500
02 500
02 000
4
is tightened.
Tool holders (Fig. 2)
Mounting
The length-adjustable tool holders are
secured to a clamping surface
slider. A minimum shaft clamping length
of 18.5 mm (.73") must be observed.
5
Fig. 2
Serrated tool bodies and insert
holders (Fig. 3)
Mounting
The serrated tool body
slider via a tapered bore. Secure the insert
7
holders by tightening the fixing screw
to a torque of 7 Nm (62 in. lbs.). The insert
holders can be preset using a scale.
The scale applies to the central slider
position (= 0).
4
6
Fig. 3
English
5
in the
3
4
6
is secured to the
7
8
8
9
