Instructions Behnke touch display 20-2006-BS, 21-2006-BS, 50-2006-BS, 43-9566-BS
2.1. Mounting the touch display
20-2006-BS, 21-2006-BS in the Behnke
module frame
(Series 50 door intercom stations with touch
display are supplied pre-assembled)
Check whether all components required for
1
your door intercom stations are present.
Upon delivery, check all components for com-
pleteness (e.g. the screw accessory pack
for your frame).
For mounting, place your frame with the
a
front side down on a suitable, non-scratching
surface.
*
*
For further information on connecting the
*
Behnke modules , with the exception of the
Behnke touch display, to the basic electronics,
please refer to the operator's manual supplied
with the respective basic electronics.
www.behnke-online.de

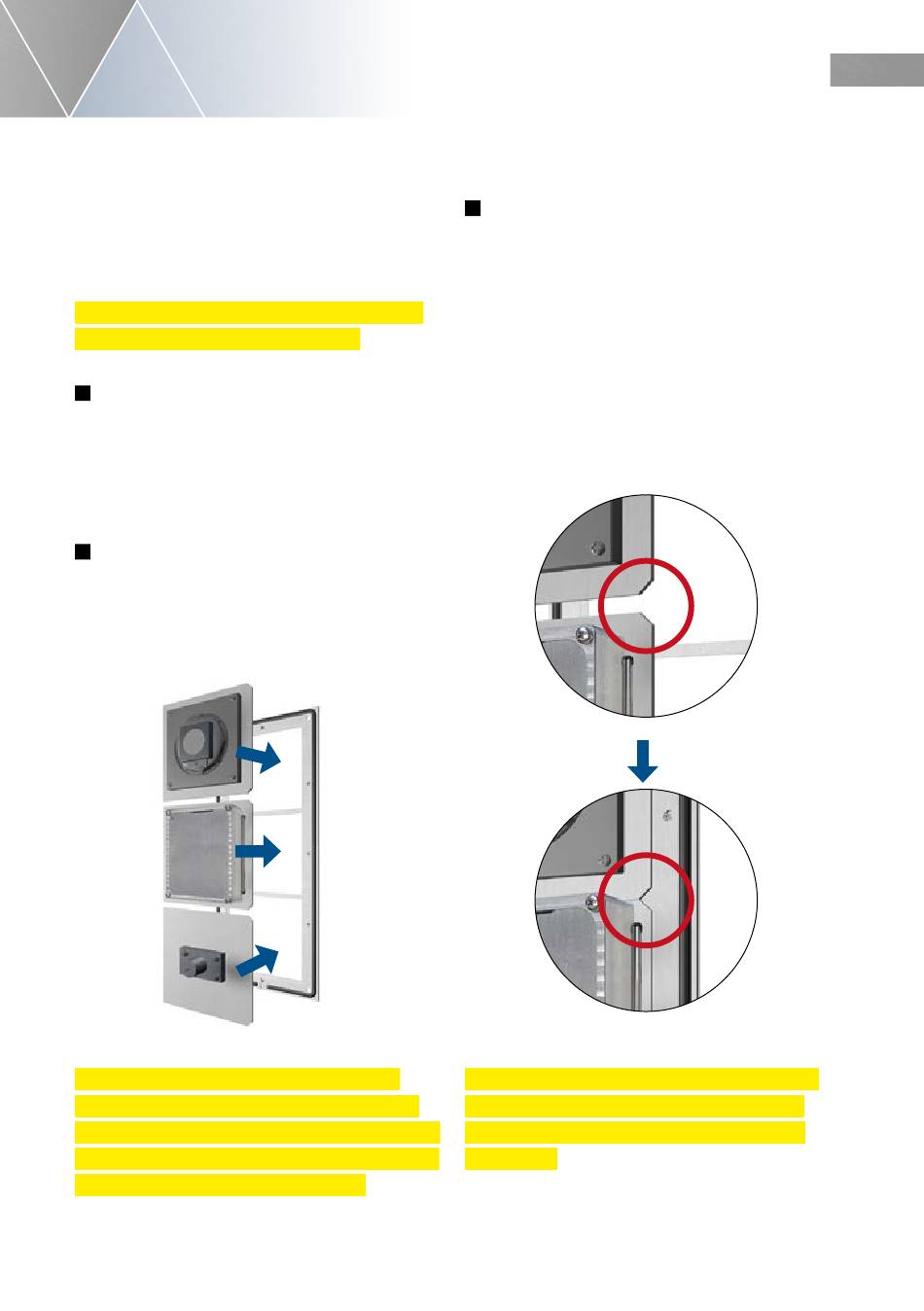

Insert your modules into the corresponding
b
module recesses as shown in the sketch.
Modules must be flush with the frame.
!
When inserting the modules, please ensure
to use the anti-twist device
the modules are seated correctly.
For reasons of acoustics, always choose
the greatest possible distance between
the loudspeaker and microphone.
Like the Behnke IP camera, the Behnke touch
display module must always be installed in
the area of the module housing of the basic
electronics.
GB
Mounting
and check that
19
