Connecting sys-
(1)
tem components
(2)
(3)

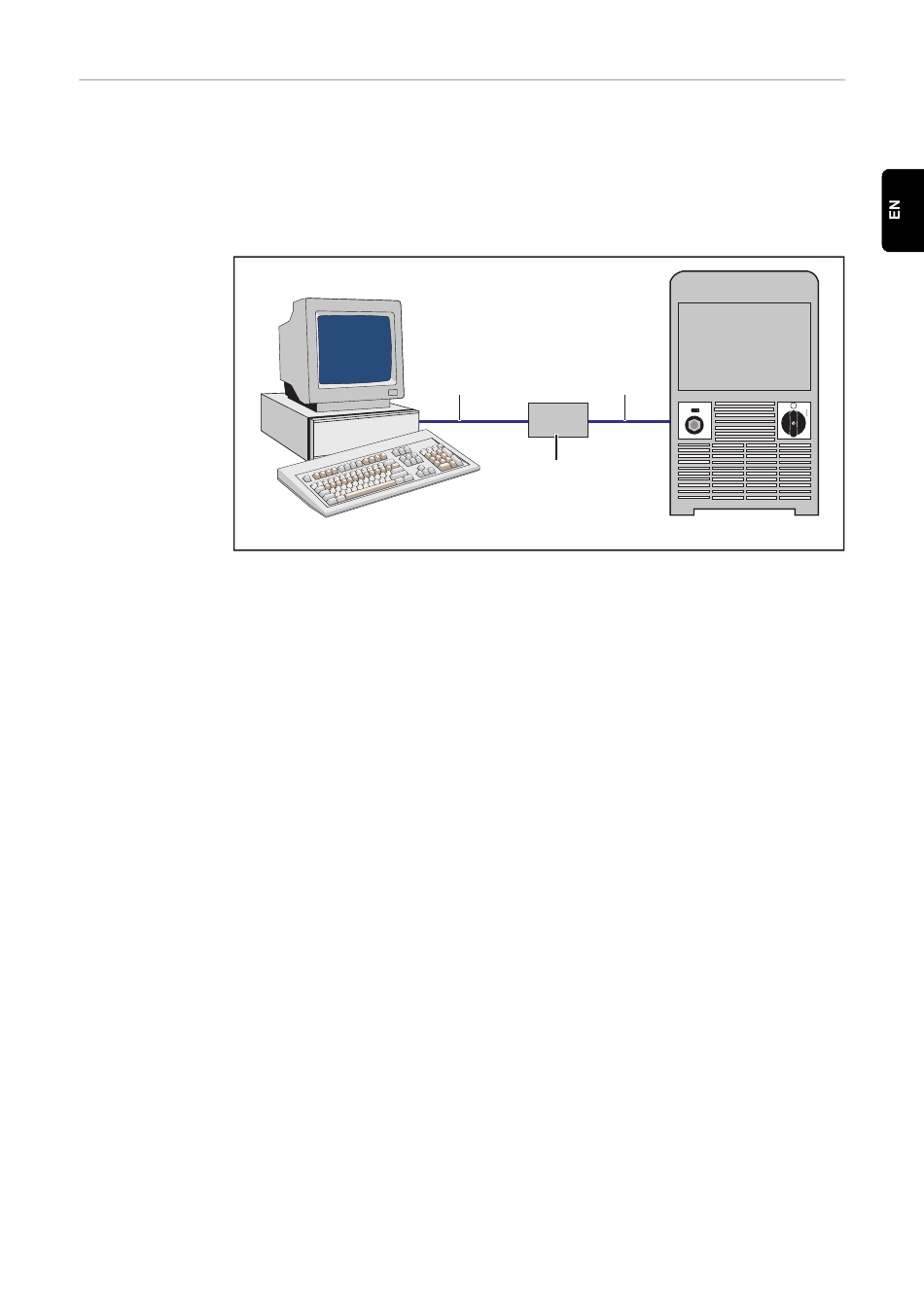

Connect the RS 232 interface cable and LocalNet interface cable to the LocalNet
RS 232 interface according to the labelling.
Connect the RS 232 interface cable to the free interface (e.g. COM1) that has al-
ready been defined on the PC
Connect the LocalNet interface cable to the LocalNet connection socket on the
system component (e.g. power source)
RS 232
Interface
cable
PC
LocalNet
Interface
cable
LocalNet RS 232 Interface
Power source
