Installing The Monitor - Somfy V350 Rts Montage- Und Gebrauchsanleitung

EN
NB
If you wish to control your Somfy RTS gate motorisation remotely via the monitor, you must save the radio control before
the final monitor installation procedure (the monitor must be brought to the gate motorisation while powered via its mains
adapter) or activate the button on the gate motorisation, depending on the motorisation models.
See section 7.3 Programming a Somfy RTS gate motorisation.

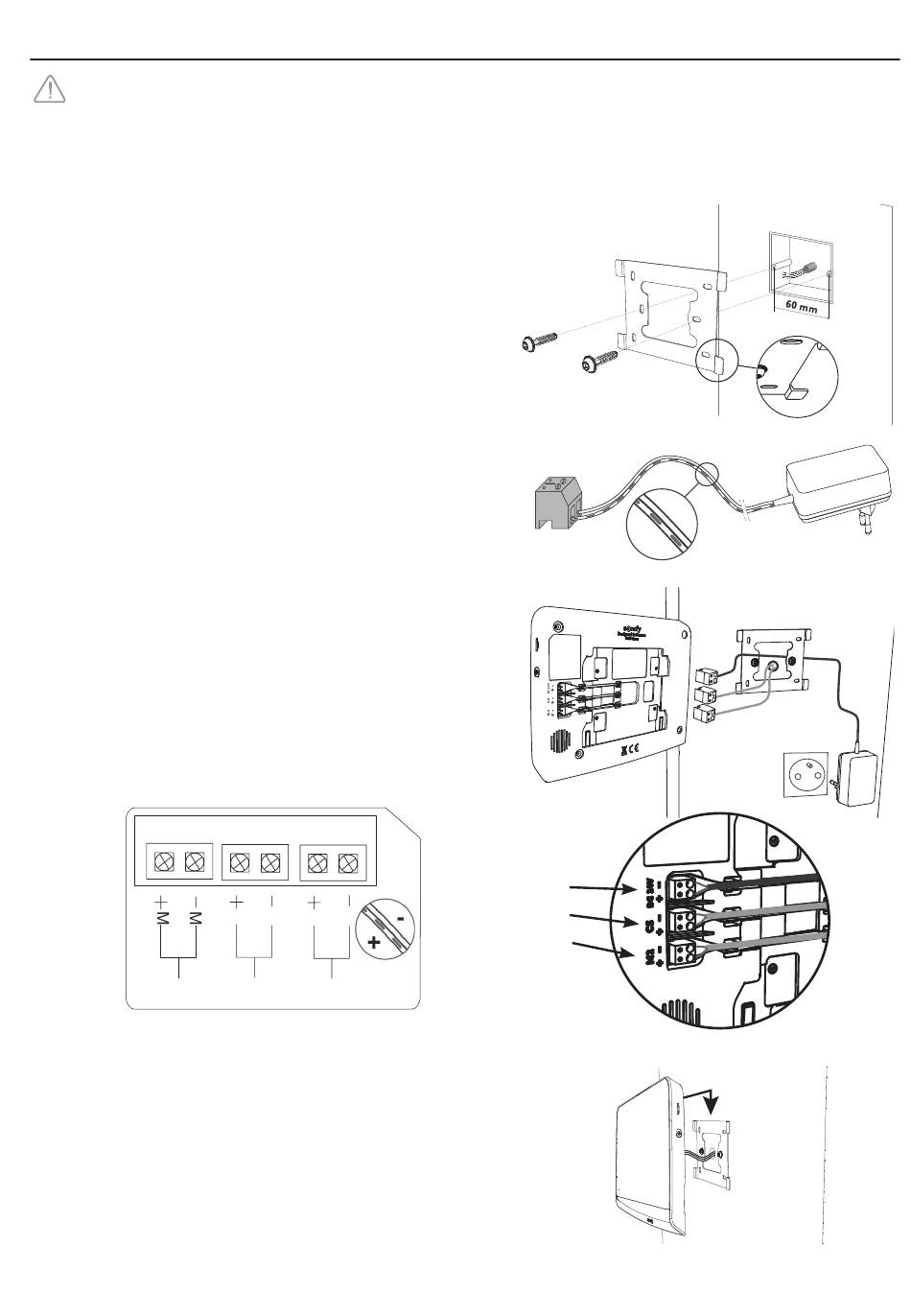

[1]. Fix the monitor mounting plate to the wall.
Important: The monitor mounting brackets must come out towards
you.
Note: All the wires must pass inside the mounting bracket so they can be
connected to the monitor.
[2]. Connect the mains adapter connector at the rear of the monitor
to terminal block 7-1 in the direction indicated in the illustration
(screws towards the right); the direction in which the wires are
connected to the power pack is important.
Important: It is essential to use the mains adaptor provided to power
the monitor.
Important: Do not connect the power plug to a socket when all the
wiring is not terminated (door station, additional monitor).
[3]. Connect the second connector supplied to terminal block 7-2.
The corresponding cable shall be connected to the door station.
Optional: Connect a third connector to the terminal block 7-3. The
corresponding cable shall be connected to a second monitor (see
the additional monitor's instructions).
Note: Place the wires in their intended locations to prevent any risk of
them being pulled out.
Note: Identify the wires used for terminal blocks 7-2 and 7-3 in order
to correctly wire the door station and the additional monitor (optional).
2 nd monitor Call station
[4]. Clip the monitor to the mounting support, sliding it gently
downwards until the support brackets are well inserted into the
monitor's slots.
7

4 - INSTALLING THE MONITOR

DC 24V
-
-
+
+
7-1
7-2
7-3
Copyright© 2021 SOMFY ACTIVITES SA. All rights reserved.
V®350 video entry phone
