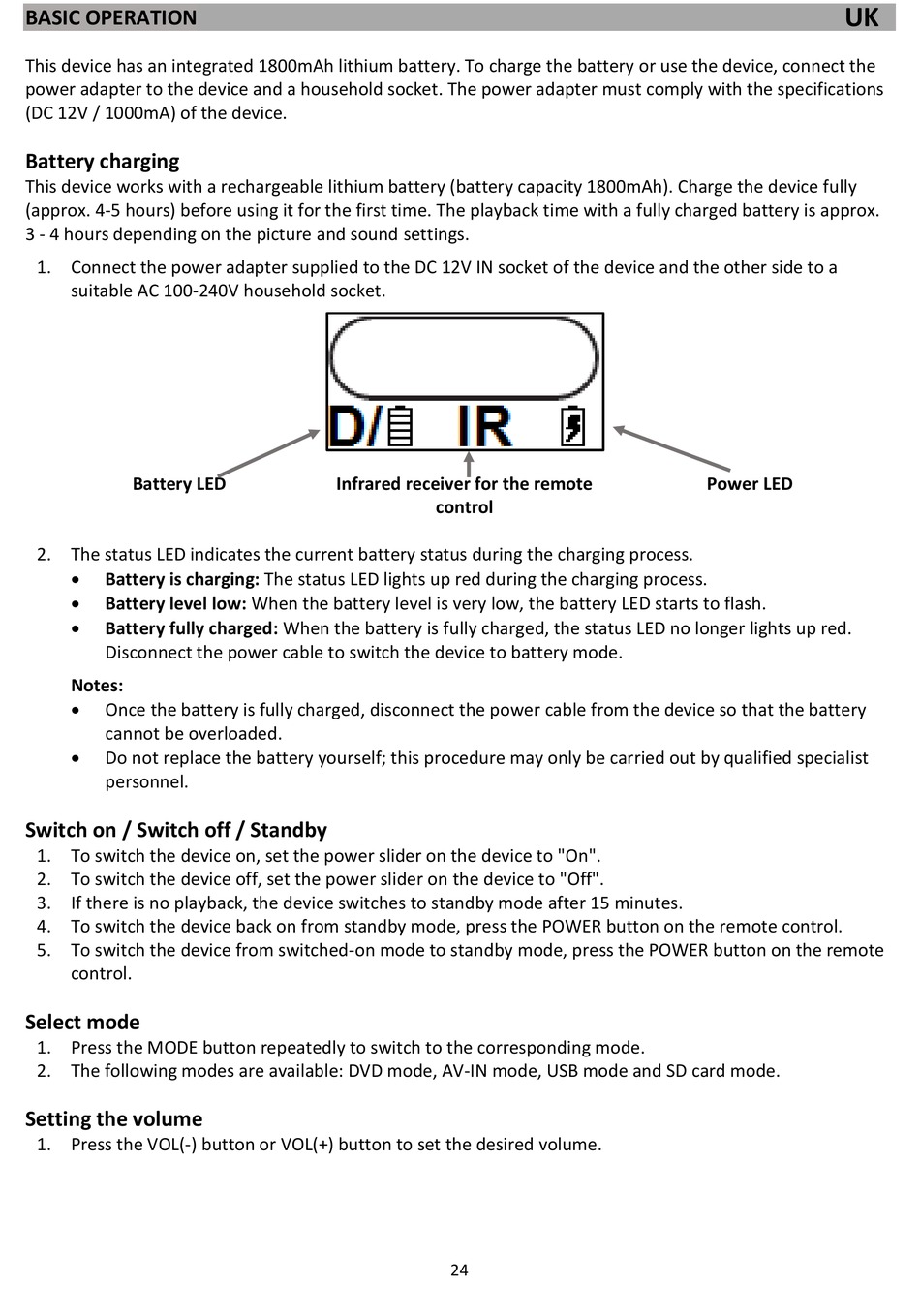

BASIC OPERATION

This device has an integrated 1800mAh lithium battery. To charge the battery or use the device, connect the
power adapter to the device and a household socket. The power adapter must comply with the specifications
(DC 12V / 1000mA) of the device.

Battery charging

This device works with a rechargeable lithium battery (battery capacity 1800mAh). Charge the device fully
(approx. 4-5 hours) before using it for the first time. The playback time with a fully charged battery is approx.
3 - 4 hours depending on the picture and sound settings.
1. Connect the power adapter supplied to the DC 12V IN socket of the device and the other side to a
suitable AC 100-240V household socket.
Battery LED
2. The status LED indicates the current battery status during the charging process.

Battery is charging: The status LED lights up red during the charging process.

Battery level low: When the battery level is very low, the battery LED starts to flash.

Battery fully charged: When the battery is fully charged, the status LED no longer lights up red.
Disconnect the power cable to switch the device to battery mode.
Notes:

Once the battery is fully charged, disconnect the power cable from the device so that the battery
cannot be overloaded.

Do not replace the battery yourself; this procedure may only be carried out by qualified specialist
personnel.
Switch on / Switch off / Standby
1. To switch the device on, set the power slider on the device to "On".
2. To switch the device off, set the power slider on the device to "Off".
3. If there is no playback, the device switches to standby mode after 15 minutes.
4. To switch the device back on from standby mode, press the POWER button on the remote control.
5. To switch the device from switched-on mode to standby mode, press the POWER button on the remote
control.

Select mode

1. Press the MODE button repeatedly to switch to the corresponding mode.
2. The following modes are available: DVD mode, AV-IN mode, USB mode and SD card mode.

Setting the volume

1. Press the VOL(-) button or VOL(+) button to set the desired volume.
Infrared receiver for the remote
control
24
UK
Power LED
