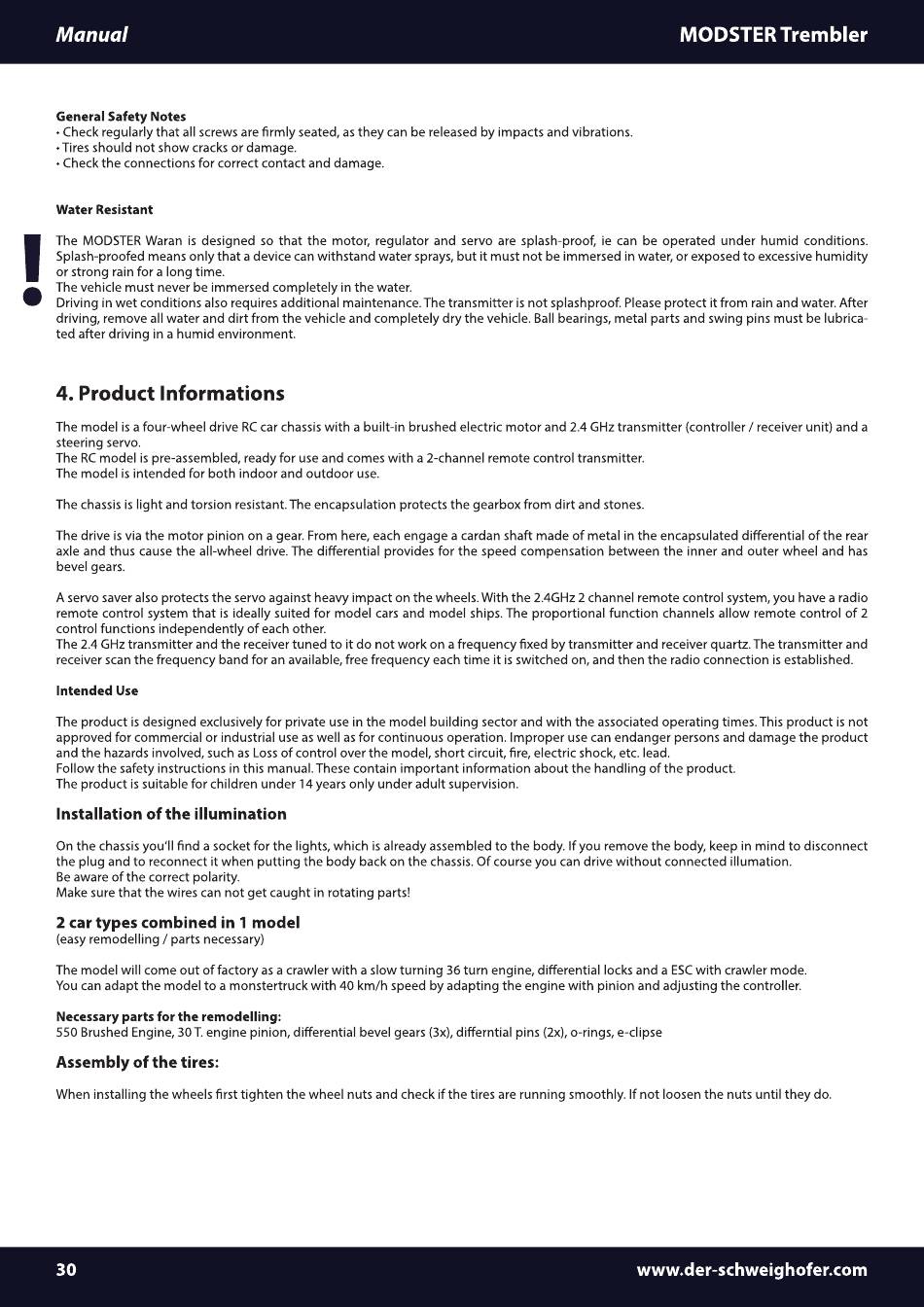

Manual
General Safety Notes
• Check regularly that all screws are firmly seated, as they can be released by impacts and vibrations.
• Tires should not show cracks or damage.
• Check the connections for correct contact and damage.
Water
Resistant
The MODSTER Waran is designed so that the motor, regulator
Splash-proofed means only that a device can withstand water sprays, but it must not be immersed in water, or exposed to excessive humidity
or strong rain for a long time.
The vehicle must never be immersed completely in the water.
Driving in wet conditions also requires additional maintenance. The transmitter is not splashproof. Pleaseprotect it from rain and water. After
driving, remove all water and dirt from the vehicle and completely dry the vehicle. Ball bearings, metal parts and swing pins must be lubrica-
ted after driving in a humid environment.
4. Product
Informations
The model
is a four-wheel
drive RC car chassis with a built-in
steering servo.
The RCmodel is pre-assembled, ready for use and comes with a 2-channel remote control transmitter.
The model
is intended
for both
The chassisis light and torsion resistant. The encapsulation protects the gearbox from dirt and stones.
The drive is via the motor pinion on a gear. From here, each engage a cardan shaft made of metal in the encapsulated differential of the rear
axle and thus cause the all-wheel drive. The differential provides for the speed compensation between the inner and outer wheel and has
bevel gears.
A servo saver also protects the servo against heavy impact on the wheels. With the 2.4GHz 2 channel remote control system, you have a radio
remote control system that is ideally suited for model cars and model ships. The proportional function channels allow remote control of 2
control functions independently of each other.
The 2.4 GHz transmitter and the receiver tuned to it do not work on a frequency fixed by transmitter and receiver quartz. The transmitter and
receiver scan the frequency band for an available, free frequency each time it is switched on, and then the radio connection is established.
Intended
Use
The product is designed exclusively for private use in the model building sector and with the associated operating times. This product is not
approved for commercial or industrial use as well asfor continuous operation. Improper use can endanger persons and damage the product
and the hazards involved,
such as Loss of control
Follow the safety instructions in this manual. These contain important information about the handling of the product.
The product is suitable for children under 14 years only under adult supervision.
Installation
of the
illumination
On the chassisyou'll find a socket for the lights, which is already assembled to the body. If you remove the body, keep in mind to disconnect
the plug and to reconnect it when putting the body back on the chassis.Of course you can drive without connected illumation.
Be aware of the correct polarity.
Make sure that the wires can not get caught in rotating parts!
2 car types combined
in 1 model
(easy remodelling / parts necessary)
The model will come out of factory as a crawler with a slow turning 36 turn engine, differential locks and a ESCwith crawler mode.
You can adapt the model to a monstertruck with 40 km/h speed by adapting the engine with pinion and adjusting the controller.
Necessary parts for the remodelling:
550 Brushed Engine, 30 T. engine pinion, differential bevel gears (3x), differntial pins (2x), o-rings, e-clipse
Assembly of the tires:
When installing the wheels first tighten the wheel nuts and check if the tires are running smoothly. If not loosen the nuts until they do.
30
brushed
indoor
and
outdoor
use.
over the model,
and servo are splash-proof,
ie can be operated
electric
motor
and 2.4 GHz transmitter
short circuit,
fire, electric
shock, etc. lead.
MODSTER
Trembler
under humid conditions.
(controller
/ receiver
unit) and a
