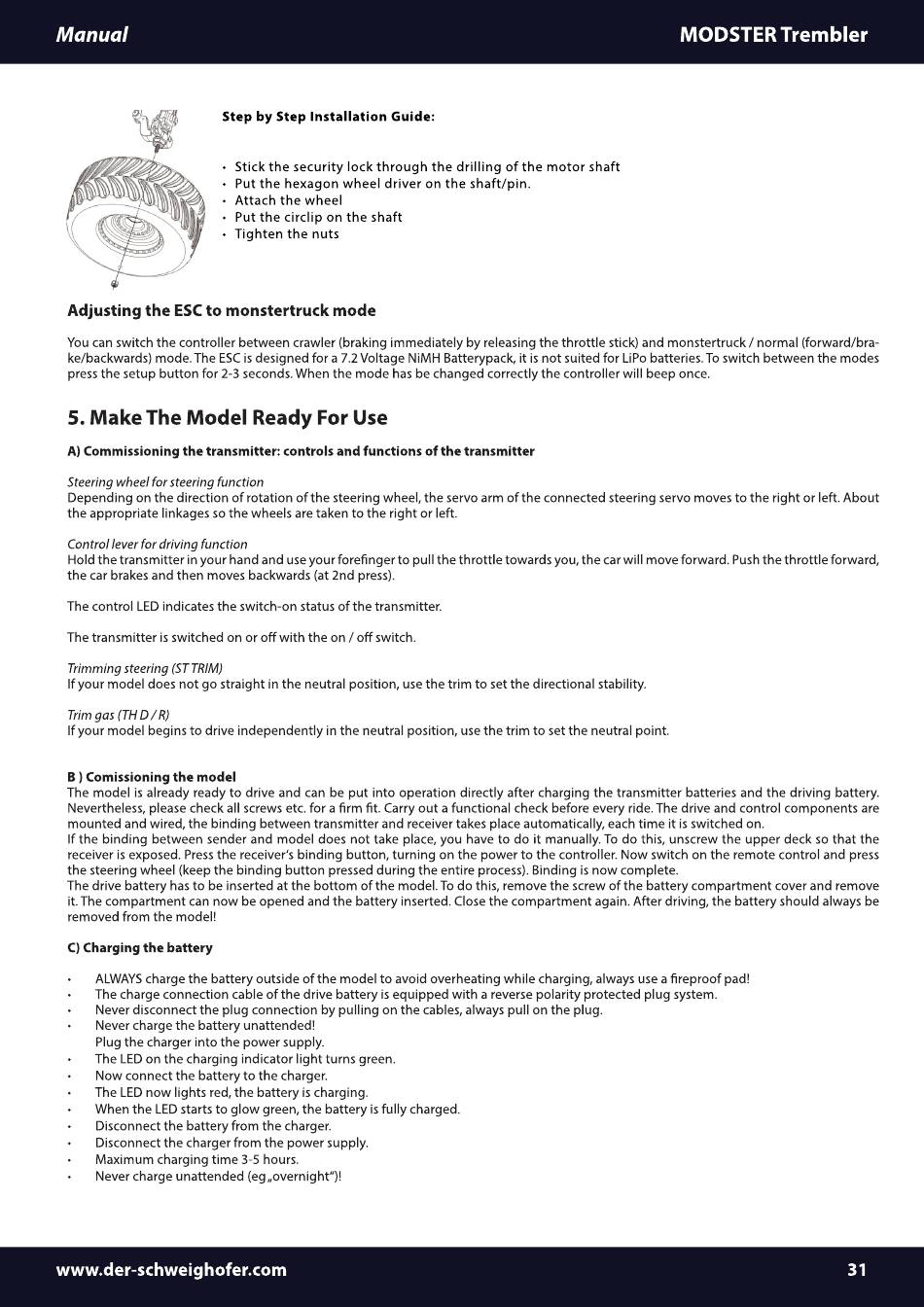

Manual
Step by Step Installation
• Stick the security lock through the drilling of the motor shaft
• Put the hexagon
• Attach
• Put the circlip on the shaft
• Tighten the nuts
Adjusting
the ESCto monstertruck
You can switch the controller between crawler (braking immediately by releasing the throttle stick) and monstertruck / normal (forward/bra
ke/backwards) mode. The ESCis designed for a 7.2 Voltage NiMH Batterypack, it is not suited for LiPo batteries. To switch between the modes
press the setup button for 2-3 seconds. When the mode has be changed correctly the controller will beep once.
5. Make The Model Ready For Use
A) Commissioning the transmitter:
Steering wheel for steering function
Depending on the direction of rotation of the steering wheel, the servo arm of the connected steering servo moves to the right or left. About
the appropriate linkages so the wheels are taken to the right or left.
Control lever for driving function
Hold the transmitter in your hand and use your forefinger to pull the throttle towards you, the car will move forward. Pushthe throttle forward,
the car brakes and then moves backwards (at 2nd press).
The control
LED indicates
the switch-on
The transmitter
is switched
on or off with the on / off switch.
Trimming steering (ST TRIM)
If your model does not go straight in the neutral position, use the trim to set the directional stability.
Trim gas (TH D/ R)
If your model begins to drive independently in the neutral position, use the trim to set the neutral point.
B ) Comissioning
the model
The model is already ready to drive and can be put into operation directly after charging the transmitter batteries and the driving battery.
Nevertheless, please check all screws etc. for a firm fit. Carry out a functional check before every ride. The drive and control components are
mounted and wired, the binding between transmitter and receiver takes place automatically, each time it is switched on.
If the binding between sender and model does not take place, you have to do it manually. To do this, unscrew the upper deck so that the
receiver is exposed. Press the receiver's binding button, turning
the steering wheel (keep the binding button pressed during the entire process). Binding is now complete.
The drive battery has to be inserted at the bottom of the model. To do this, remove the screw of the battery compartment cover and remove
it. The compartment can now be opened and the battery inserted. Close the compartment again. After driving, the battery should always be
removed
from
the
model!
C) Charging the battery
ALWAYScharge the battery outside of the model to avoid overheating while charging, always use a fireproof pad!
The charge connection cable of the drive battery is equipped with a reverse polarity protected plug system.
Never disconnect the plug connection by pulling on the cables, always pull on the plug.
Never charge the battery unattended!
Plug the charger into the power supply.
The LED on the charging indicator light turns green.
Now connect the battery to the charger.
The LEDnow lights red, the battery is charging.
When the LEDstarts to glow green, the battery is fully charged.
Disconnect the battery from the charger.
Disconnect the charger from the power supply.
Maximum charging time 3-5 hours.
Never charge unattended (eg „overnight")!
www.der-schweighofer.com
Guide:
wheel driver on the shaft/pin.
the
wheel
mode
controls and functions of the transmitter
status
of the transmitter.
on the power to the controller.
MODSTER
Trembler
Now switch on the remote control and press
