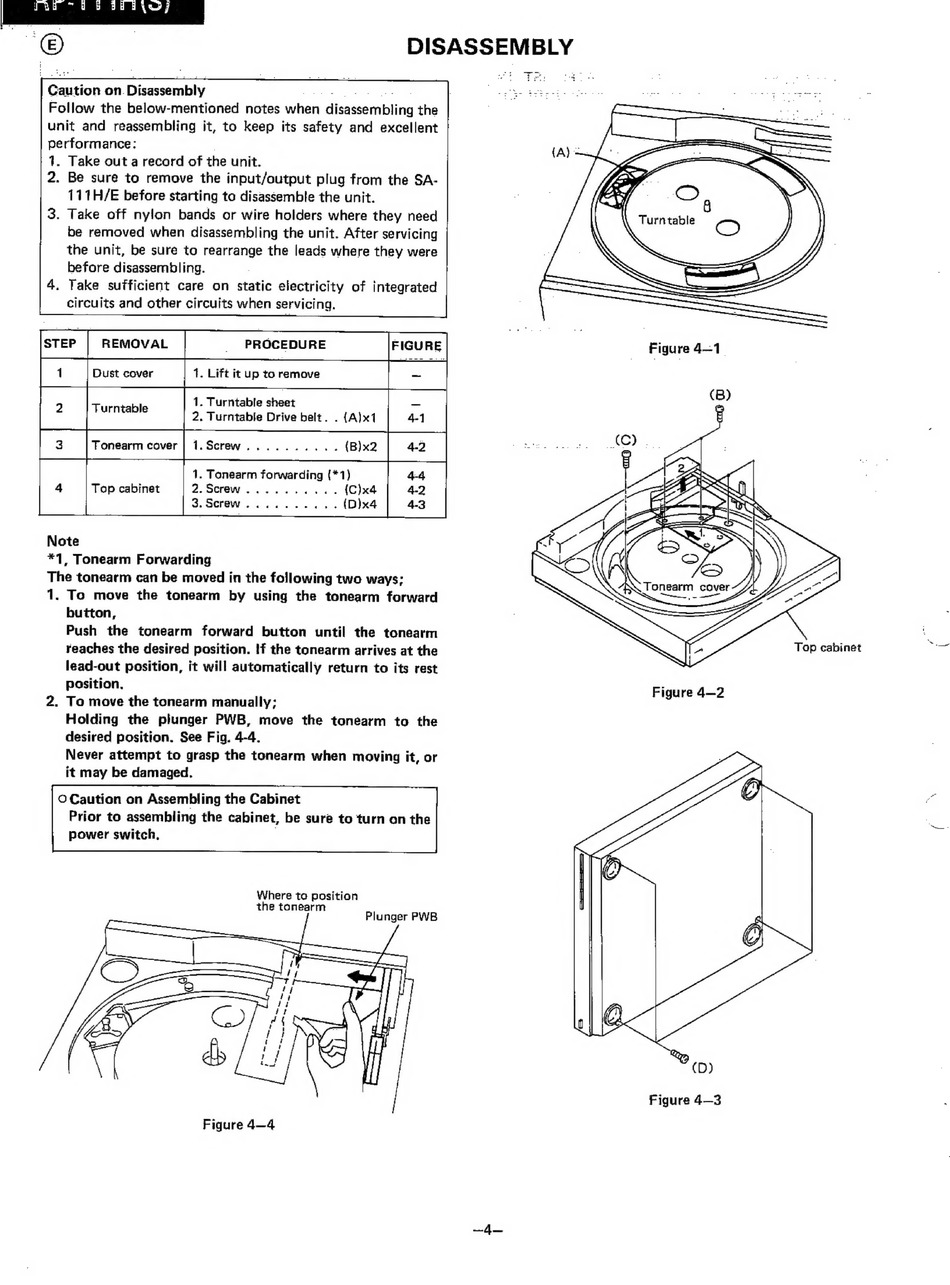

Gudea on. Disassembly
Follow the below-mentioned notes when dictesemnblinid the
unit and reassembling it, to keep its safety and excellent
performance:
1. Take out a record of the unit.
2. Be sure to remove the input/output plug from the SA-
111H/E before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
STEP
REMOVAL
|
PROcepuRE
fe pee teem — fe
1. Turntable sheet
rs
2. Turntable Drive belt. . (A)x1
| 3 | Tonearm cover |
cover | 1. Screw
1. Tonearm forwarding (*1)
4
Top cabinet
3. Screw
Note
*1, Tonearm Forwarding
The tonearm can be moved in the following two ways;
1. To
move
the tonearm
by using the tonearm
forward
button,
Push
the tonearm
forward
button
until the tonearm
reaches the desired position. If the tonearm arrives at the
lead-out position, it will automatically return to its rest
Pasition.
2. To move the tonearm manually;
Holding
the plunger PWB, move
the tonearm
to the
desired position. See Fig. 4-4.
Never attempt to grasp the tonearm when moving it, or
it may be damaged.
0 Caution on Assembling the Cabinet
Prior to assembling the cabinet, be sure to turn on the
power switch,
Where to position
the tonearm
Plunger PWB
Figure 4—4
DISASSEMBLY
Tonearm
cover
'< a,
—
st
Top cabinet
Figure 4—2
Figure 4—3
