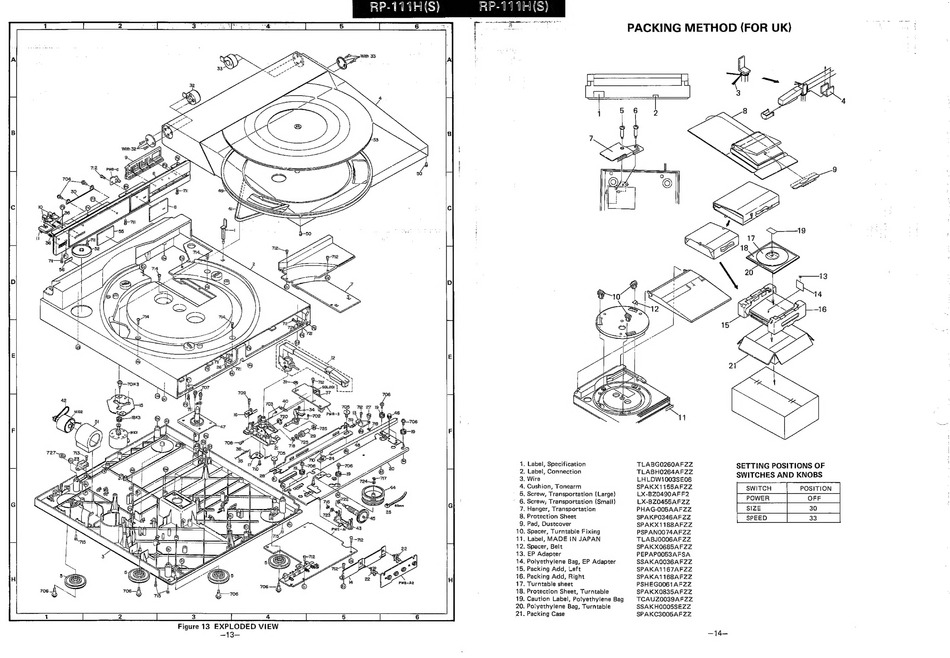

Figure 13 EXPLODED VIEW
ee ae
RP-177H(S)
=
RP-171H(S)
ree
eer mn
nar tN
Telit
BF
=
ONMNYAOABRWN=
. Label, Specification
. Label, Connection
Wire
. Cushion, Tanearm
. Screw, Transportation (Large)
Screw; Transportation (Small)
. Hanger, Transportation
. Protection Sheet
. Pad, Dustcover
. Spacer, Turntable Fixing
. Label, MADE
IN JAPAN
, Spacer, Belt
. EP Adapter
. Polyethylene Bag, EP Adapter
» Packing Add, Left
. Packing Add, Right
. Turntable sheet
. Protection Sheet, Turntable
. Caution Label, Potyethylene Bag
. Polyethylene Bag, Turntable
. Packing Case
TLABGO260AFZ2Z
TLABHO264AF2Z
LHLDW1003SE06
SPAKX1155AF2Z2Z
LX-BZ0490 AF F2
LX-8Z0455AFZZ
PHAG-OO5AAFZ2Z
SPAKPO346AF ZZ
SPAKX1188AF2ZZ
PSPANOO74AF2Z2Z
TLABJOOOBAF ZZ
SPAKX0685AF ZZ
PEPAPOOS3AFSA
SSAKAO036AFZZ
SPAKA1167AFZZ
SPAKA1168AF2Z
PSHEGOO61AFZZ
SPAKX0835AF ZZ
TCAUZOO39AFZZ
SSAKHOOOSSEZZ
SPAKC3005AFZZ
= Ase
PACKING METHOD (FOR UK)
SETTING POSITIONS OF
SWITCHES AND KNOBS
SWITCH
POSITION
