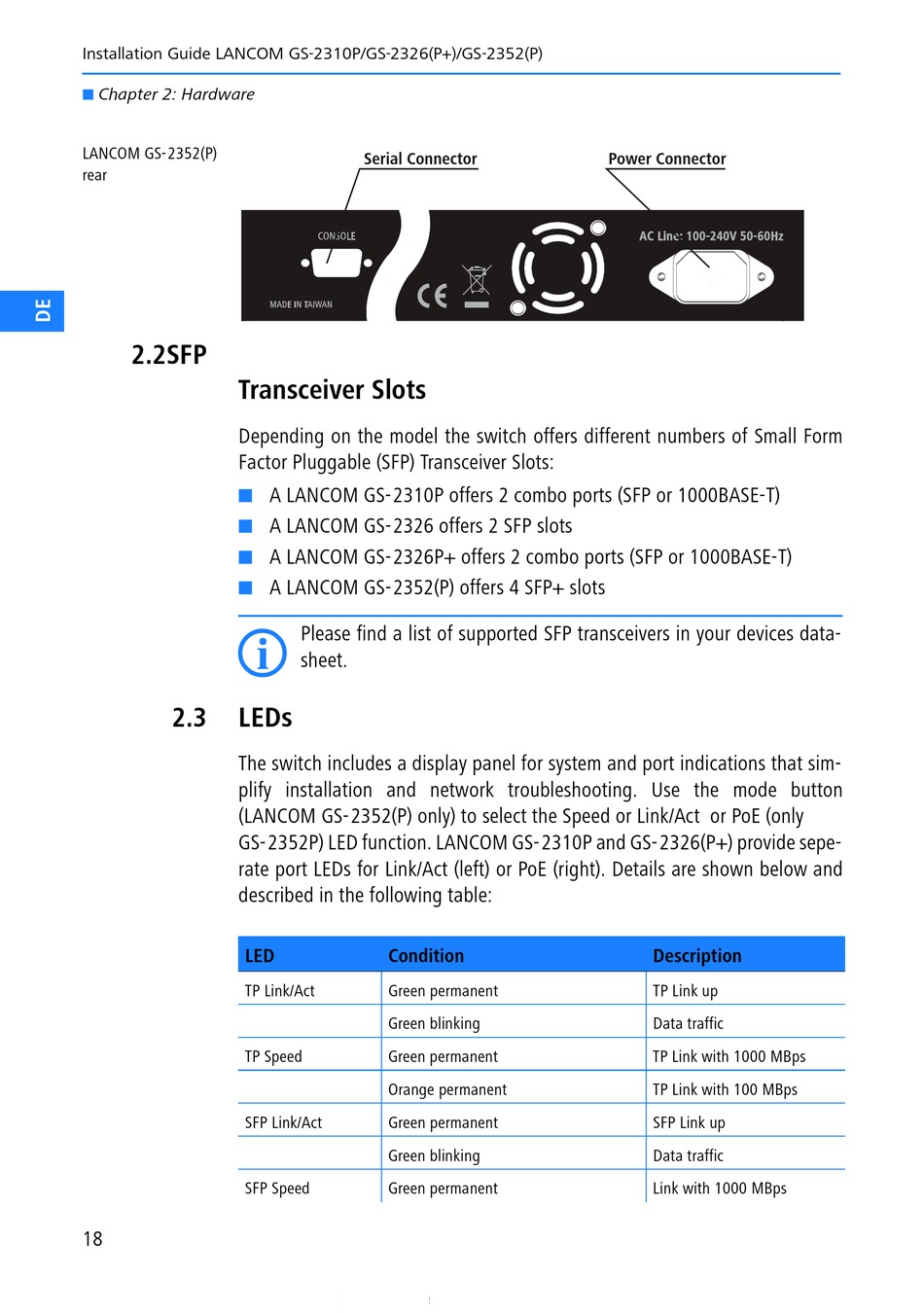

Installation Guide LANCOM GS-2310P/GS-2326(P+)/GS-2352(P)
Chapter 2: Hardware
LANCOM GS-2352(P)
rear
2.2SFP
Transceiver Slots
Depending on the model the switch offers different numbers of Small Form
Factor Pluggable (SFP) Transceiver Slots:
I
2.3 LEDs
The switch includes a display panel for system and port indications that sim-
plify installation and network troubleshooting. Use the mode button
(LANCOM GS-2352(P) only) to select the Speed or Link/Act or PoE (only
GS-2352P) LED function. LANCOM GS-2310P and GS-2326(P+) provide sepe-
rate port LEDs for Link/Act (left) or PoE (right). Details are shown below and
described in the following table:
LED
TP Link/Act
TP Speed
SFP Link/Act
SFP Speed
18
Serial Connector
A LANCOM GS-2310P offers 2 combo ports (SFP or 1000BASE-T)
A LANCOM GS-2326 offers 2 SFP slots
A LANCOM GS-2326P+ offers 2 combo ports (SFP or 1000BASE-T)
A LANCOM GS-2352(P) offers 4 SFP+ slots
Please find a list of supported SFP transceivers in your devices data-
sheet.
Condition
Green permanent
Green blinking
Green permanent
Orange permanent
Green permanent
Green blinking
Green permanent
Power Connector
Description
TP Link up
Data traffic
TP Link with 1000 MBps
TP Link with 100 MBps
SFP Link up
Data traffic
Link with 1000 MBps
