SAPE 69
GB

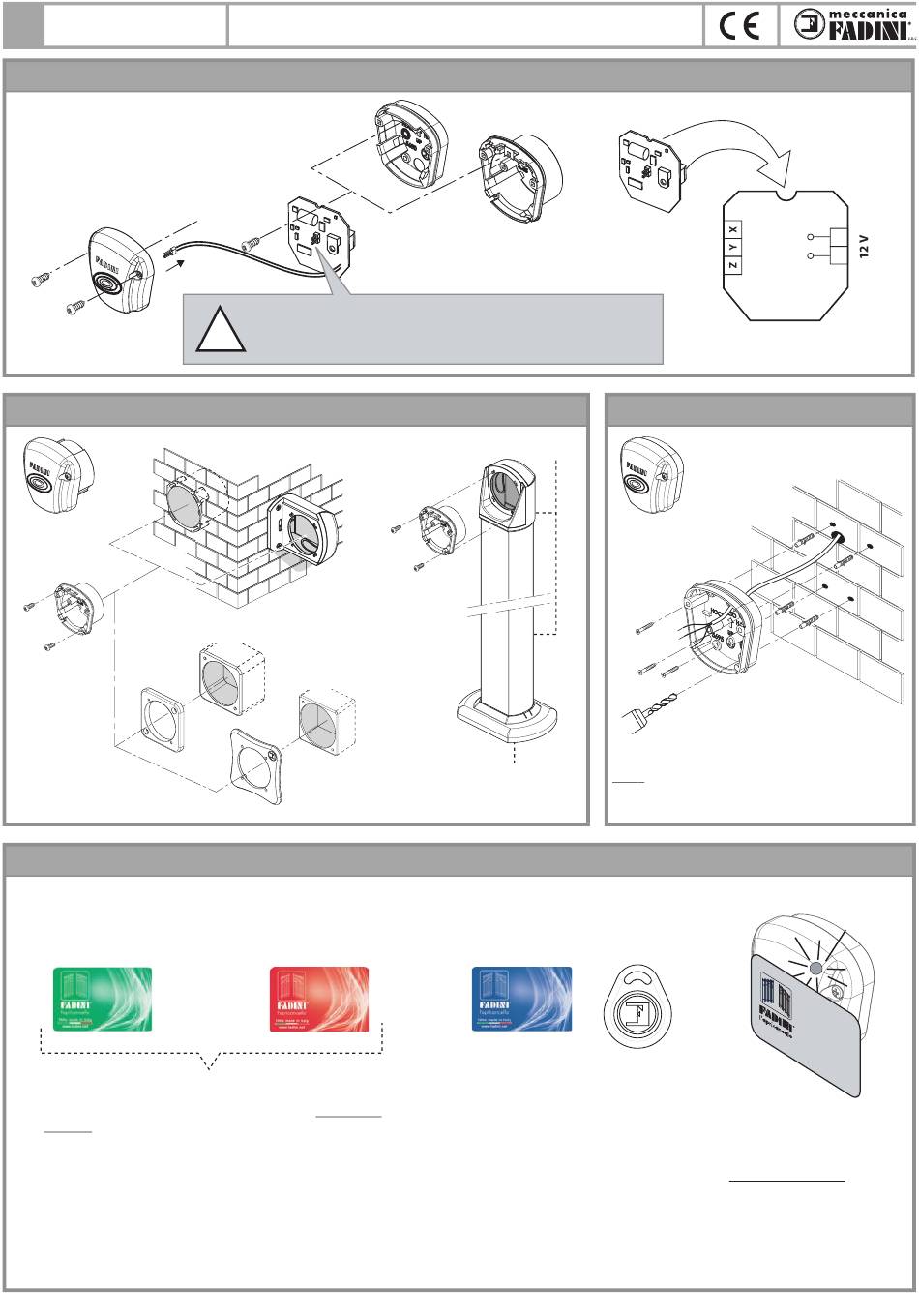

BRINGING THE CARD READER APART
FITTING ACCESSORIES FOR THE PARTIALLY RECESSED APPLICATION
item 690L
item 560L
PROGRAMMING AND READING CARDS
GREEN (*) card:
to memorize the Blue cards
and the keyrings
(*): Cards to be used by the installation technician.
The two cards (Red and Green), at the time when the equipment
is first installed, are both memorized into the Removable
memory.
Blanking or replacing them can only be carried out by the
manufacturer Meccanica Fadini after returning the removable
memory.
Should a duplicate of the two cards (Red and Green) be
required,the number printed on the back is to be provided.
PROXIMITY CARD ACCESS CONTROL
surface
mount
IMPORTANT: It is possible to connect 2 readers maximum to one
Receiver.
!
Each reader must be identified when first installed: the strip jumper
must stay fitted onto one of the two, remove it from the other one.
item 552L
item 558L
Prit 19
Sech 15
item 553L
RED (*) card:
to cancel the Blue cards
and the keyrings
partial recess
reader
mount
pcb
item 557L
item 554L
Pic. 2
BLUE card or keyring:
for the end user to open and
close the access
The cards or the keyrings are actually read on touching the reader;
confirmation of the reading is indicated by the illumination of a Blue
Led and by a beep sound from the receiver.
9
The terminals for the
elec. connections
are on the back
SURFACE APPLICATION
item 691L
NOTE: screws and expanding bolts not supplied by us.
Pic. 1
Pic. 3
G R
E E
N
R E
D
B L
U E
Pic. 4
