SAPE 69
GB
SOFTWARE SAPE 69 FOR PC MANAGEMENT
General description
The SAPE 69 system, previously described as a simple electronic system operated through cards or keyrings, can be integrated with a software allowing the
user to create a data base of the entire installation.
The software allows the management of the two users' lists, once the user's cards and keyrings have been entered: it is possible to identify each single
card/keyring by including the end user's data (name and address), enable/disable each single card/keyring, remove any single card/keyring from the lists and
specify the period of use of any card/keyring by indicating an expiry date.
Important: memorizing the cards/keyrings is only by means of the GREEN card, whereas cancelling is made possible only by means of the RED card or by PC.
ELECTRONIC
CONTROL BOX
230 V - 50 Hz from
the mains
Connections of
the system

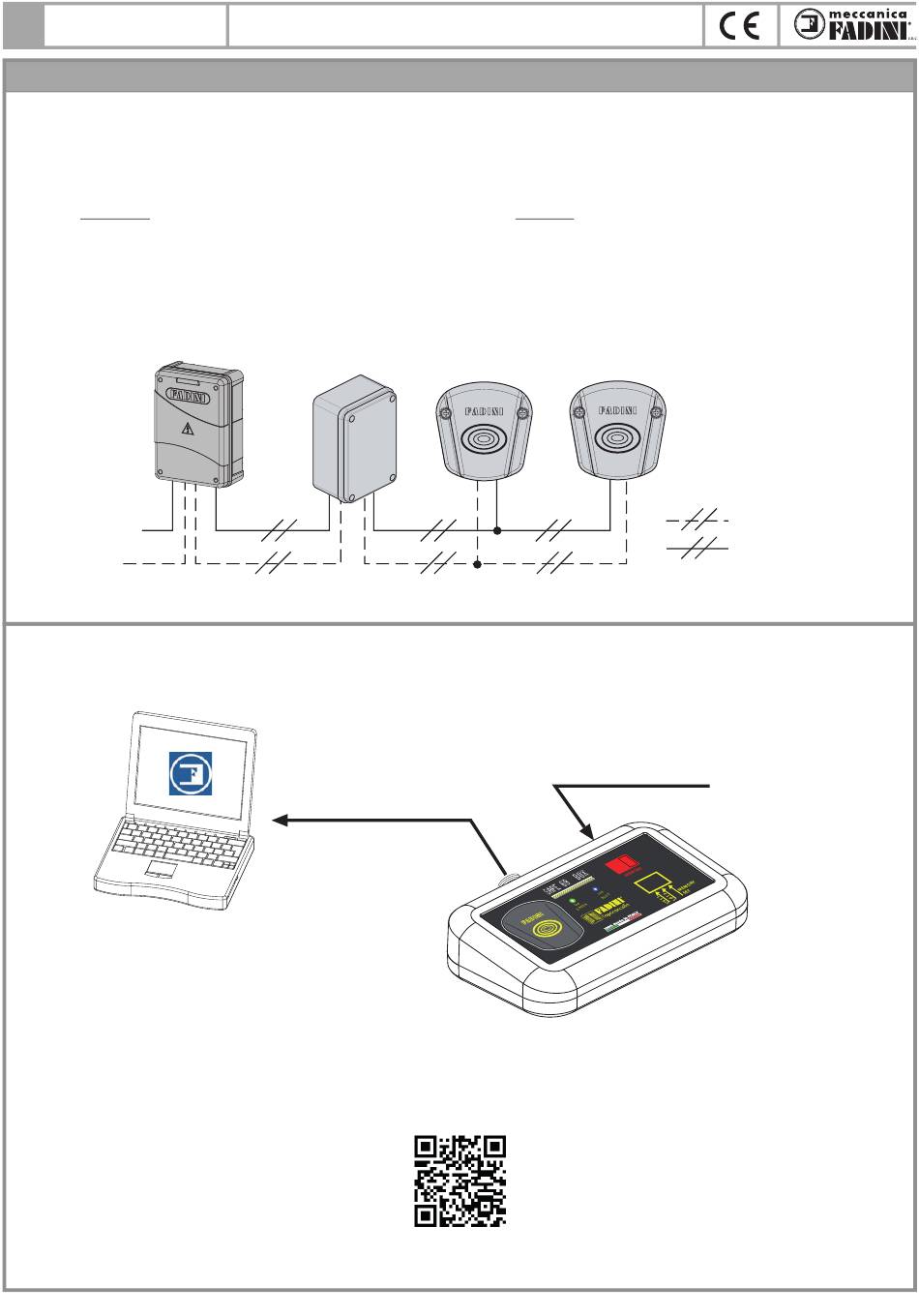

Diagram of the connection of the SAPE BOX to a PC to manage the memory of the installation.
All the instructions allowing for the use of the software are contained in the manual enclosed in the SAPE BOX.
SAPE BOX is a device to control the memory of a SAPE 69 system, on a PC by means of the dedicated SAPE 69 Software.
Software Sape 69 Setup program, that can be downloaded from https://fadini.cloud/index.php/s/i1tSg6p8FiXHTRh/download or the QR code can be used.
PROXIMITY CARD ACCESS CONTROL
SAPE 69 SYSTEM: SIMPLE INSTALLATION WITHOUT THE HELP OF THE SOFTWARE
(see Pic.5 for the electrical connections)
RECEIVER
Connection cable
USB - mini USB to a PC
ENTRY EXIT
READER READER
Connection to the electric mains
230 V - 50 Hz
12
communication 2x0,5 mm²
power supply 2x0,5 mm²
Pic. 11
Pic. 12
