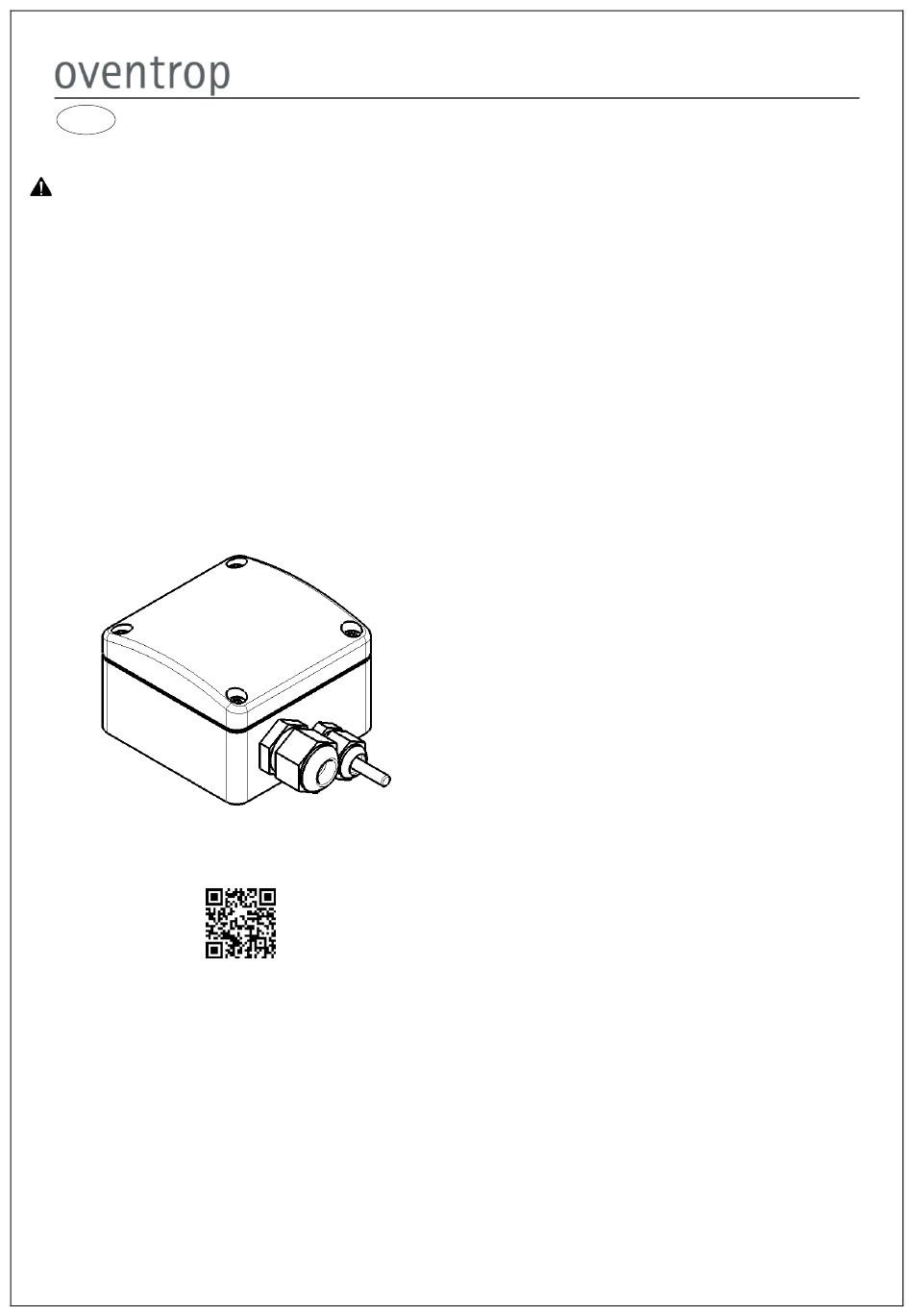

Read installation instructions and operating manual in their
entirety before installing the field module "FM-C WS"
(outside
temperature
sensor)
components! Both documents are available as PDF file for
download on the Oventrop "DynaTemp" central unit. The
instructions of the respective system must be observed.
Installation, initial operation, maintenance and repairs have
to be carried out by authorised and qualified tradesmen
according to established laws and regulations!
The installation and operating instructions of the respective
"DynaTemp" system as well as all other valid documents
such as this short guide have to remain with the user of the
system!
Content
1
Technical data ................................................................. 1
2
Correct use ........................................................................
3
Dimensions ........................................................................
4
Installation .........................................................................
5
Drill hole dimensions
6
Pin assignment ..................................................................
OVENTROP GmbH & Co. KG
Paul-Oventrop-Straße 1
D-59939 Olsberg
Phone
+49 (0) 29 62 82-0
Fax
+49 (0) 29 62 82-400
E-Mail
mail@oventrop.de
Internet www.oventrop.com
For an overview of our global presence
visit www.oventrop.de.
and
the
accessory
Valves, controls + systems
7
Technical data
Electrical connection:
Power supply: via C-bus
Bus load: < 16 mA
Communication:
C-bus, twisted, shielded two-wire cable
Measuring element:
Temperature: PT 1000 1/3 DIN B
Measuring range: -35 ...+70 °C
Resolution: 0.1° / 0.01° K
Tolerance: ± 0,5 K
Operating conditions:
Temperature: -35 ...+70 °C
Humidity: 10 ...95 % R.H. not condensing (DIN EN 61131-2)
Storage conditions:
Temperature: -40 ...+70 °C
Humidity: 10 ...95 % R.H., not condensing (DIN EN 61131-2)
Housing:
Dimensions (without couplings):
67 × 67 × 43.5 (L × W × H in mm)
Approx. weight: 95 g
Material / colour: plastic ASA, light grey (RAL 7035)
Coupling: 1× M16
Type of installation: surface-mounting
Protective system: III, protective low voltage
Protection: IP 65
8
Correct use
The field module serves the detection of the outside temperature
and its transmission to the "DynaTemp" unit via a bus line.
Any use of the field module "FM-C WS" outside the above
applications will be considered as non-compliant and misuse.
Claims of any kind against the manufacturer and/or his
authorised representative due to damages caused by incorrect
use cannot be accepted.
The
observance
of
the
of the compliance terms.
This short guide is for information purposes only.
Subject to technical modifications without notice.
"DynaTemp";
"FM-C WS"
Short guide for the specialised installer
enclosed
documents
is
part
115313081 05/2017
